Engine Control Module: Diagrams

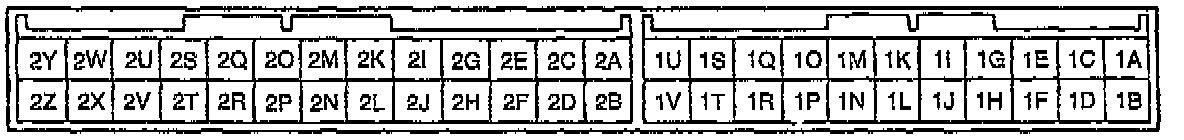

Terminal location


Terminal Voltage Chart:

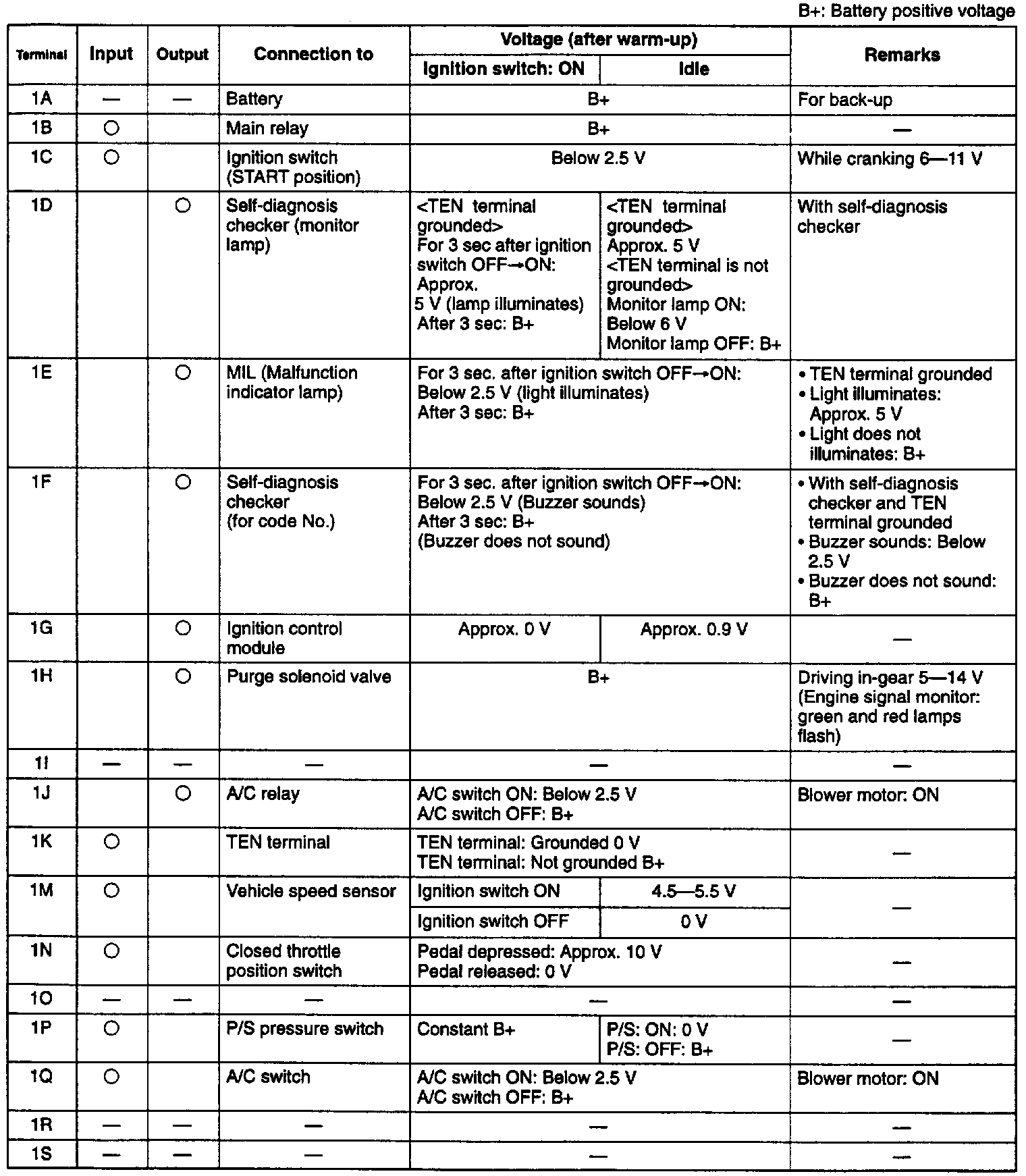

1A through 1S

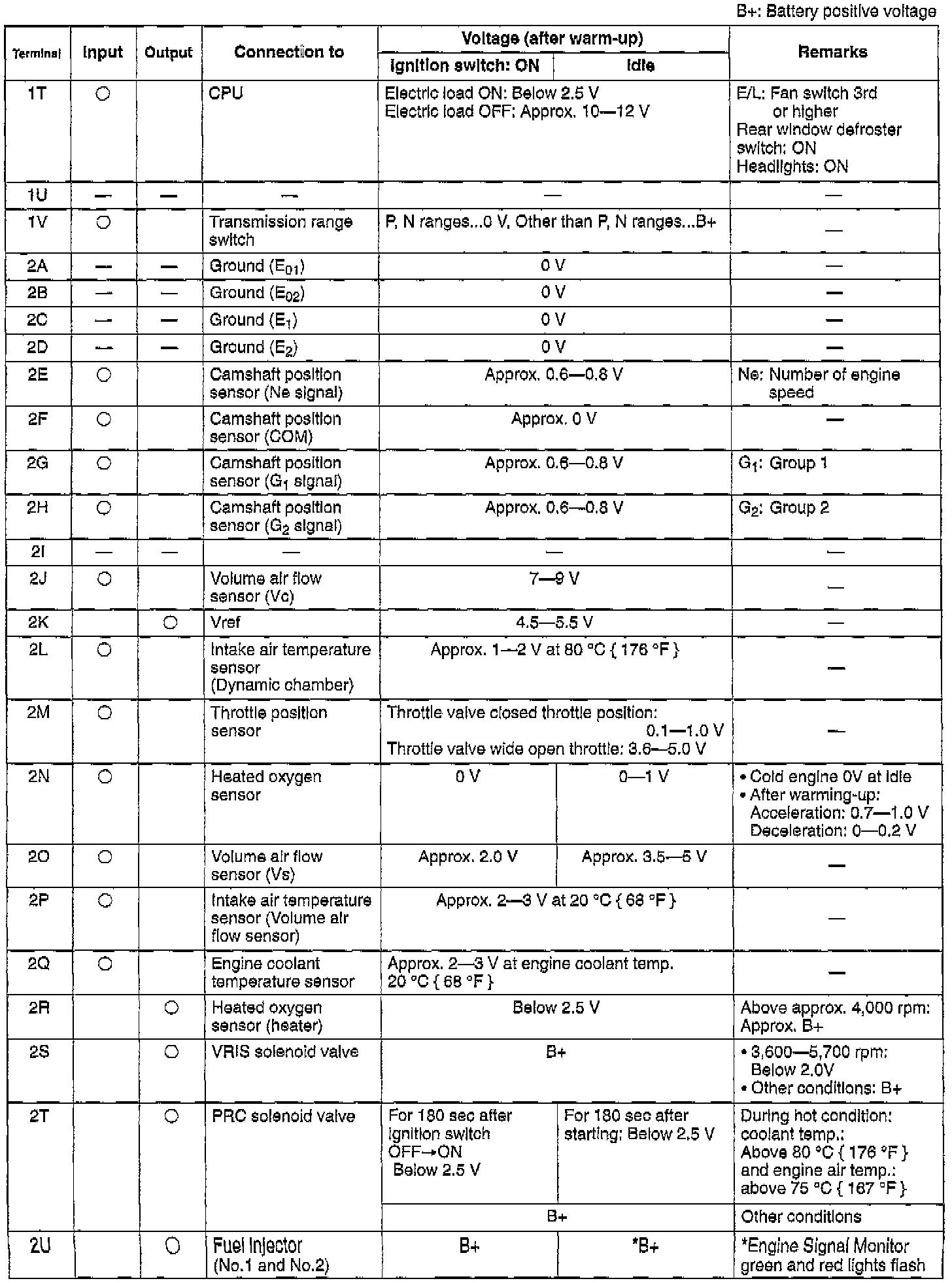

1T through 2U

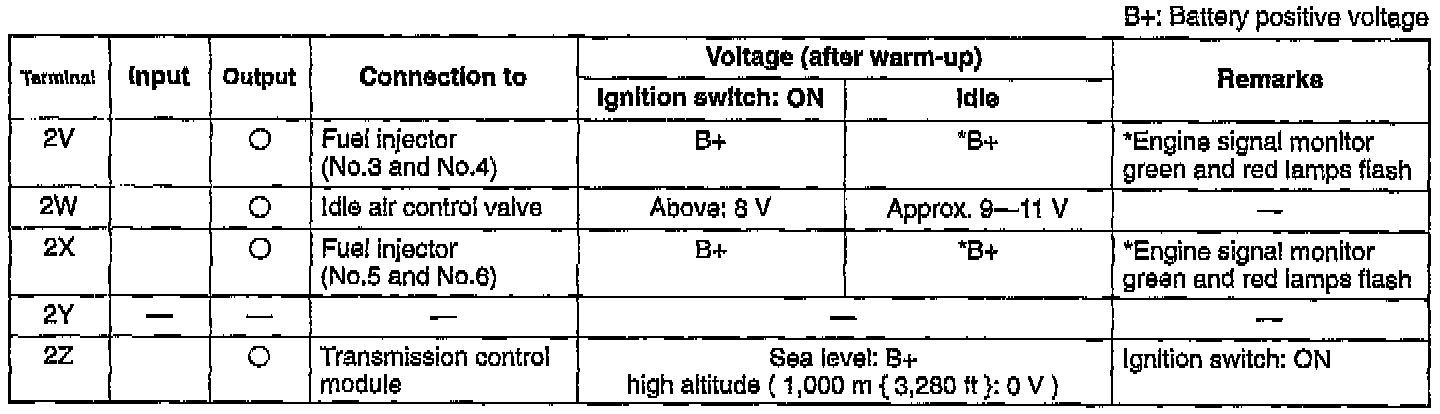

2V through 2Z
