Torque Specifications

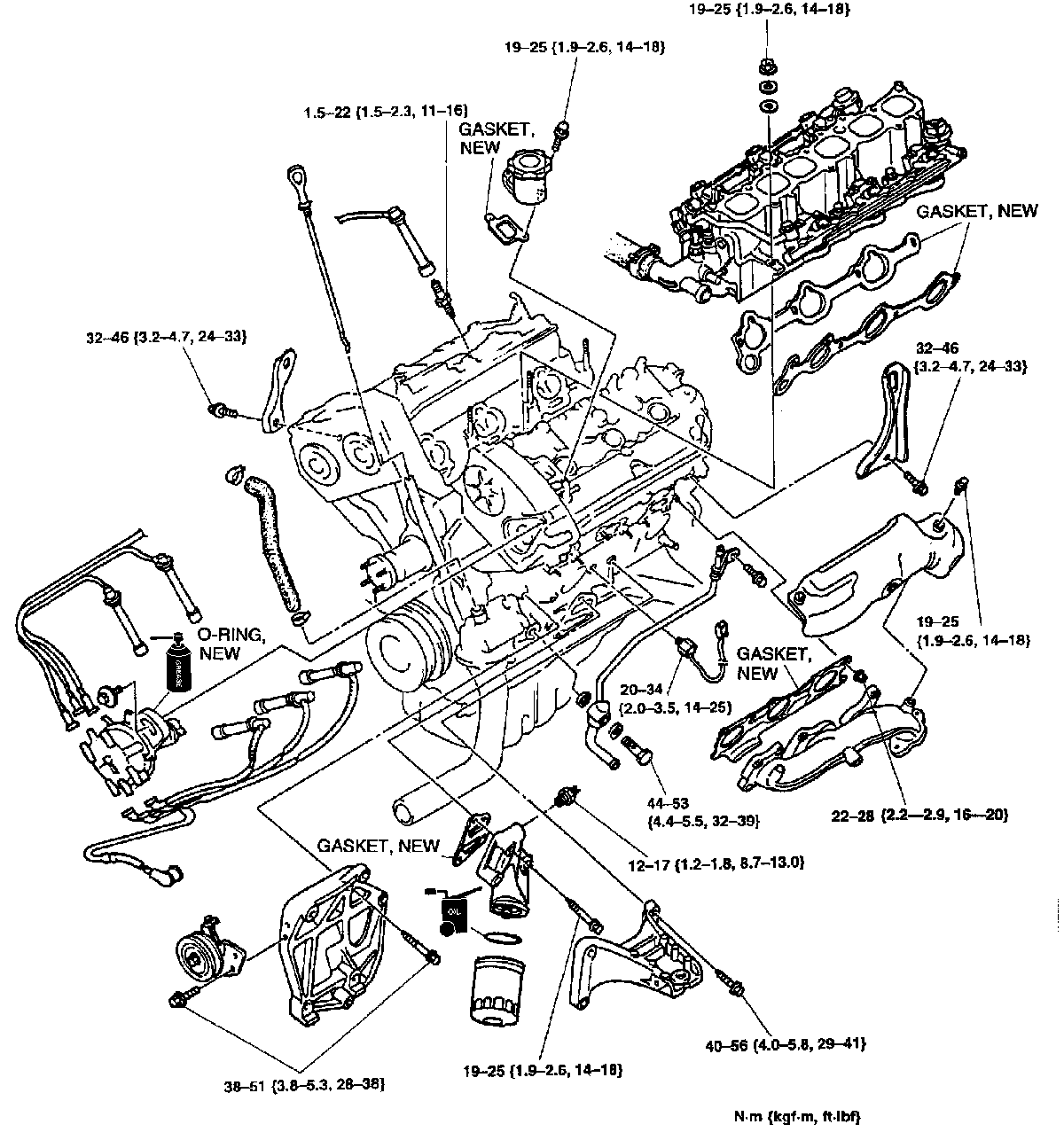

Intake & Exhaust Manifolds:

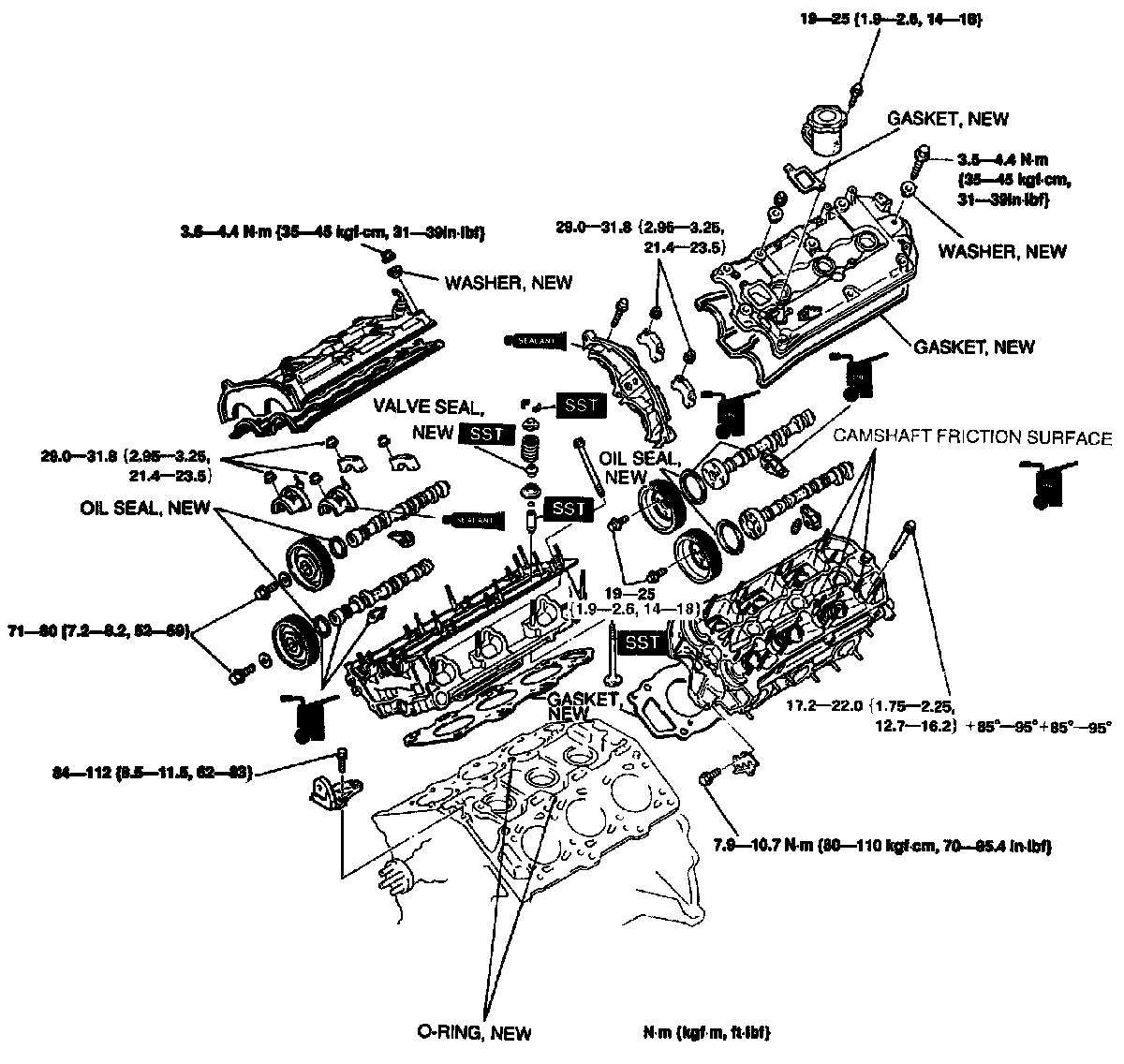

Upper Engine:

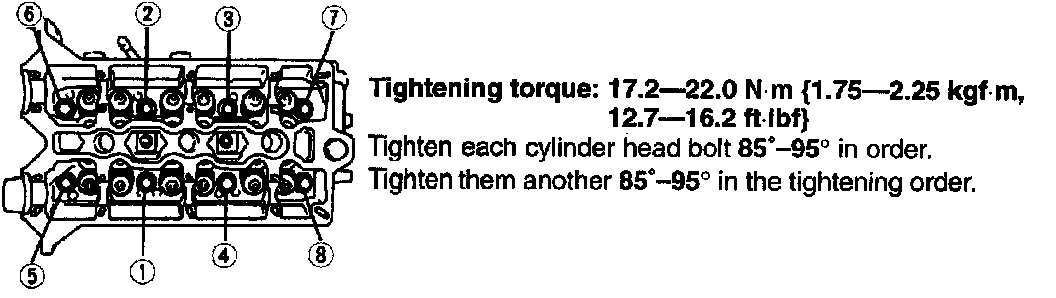

Head Bolt Torque/Sequence:

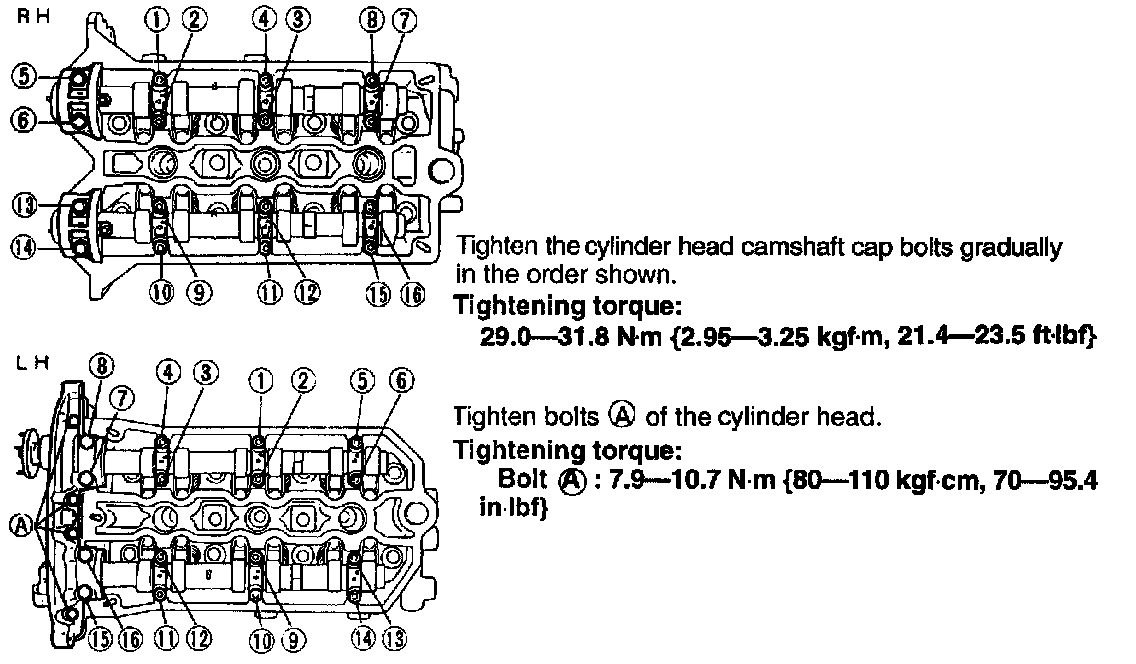

Cam Cap Bolt Torque/Sequence:

Timing Components:

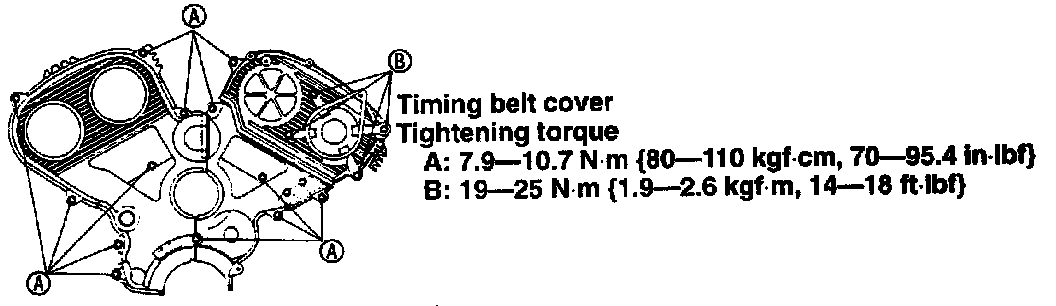

Timing Cover:

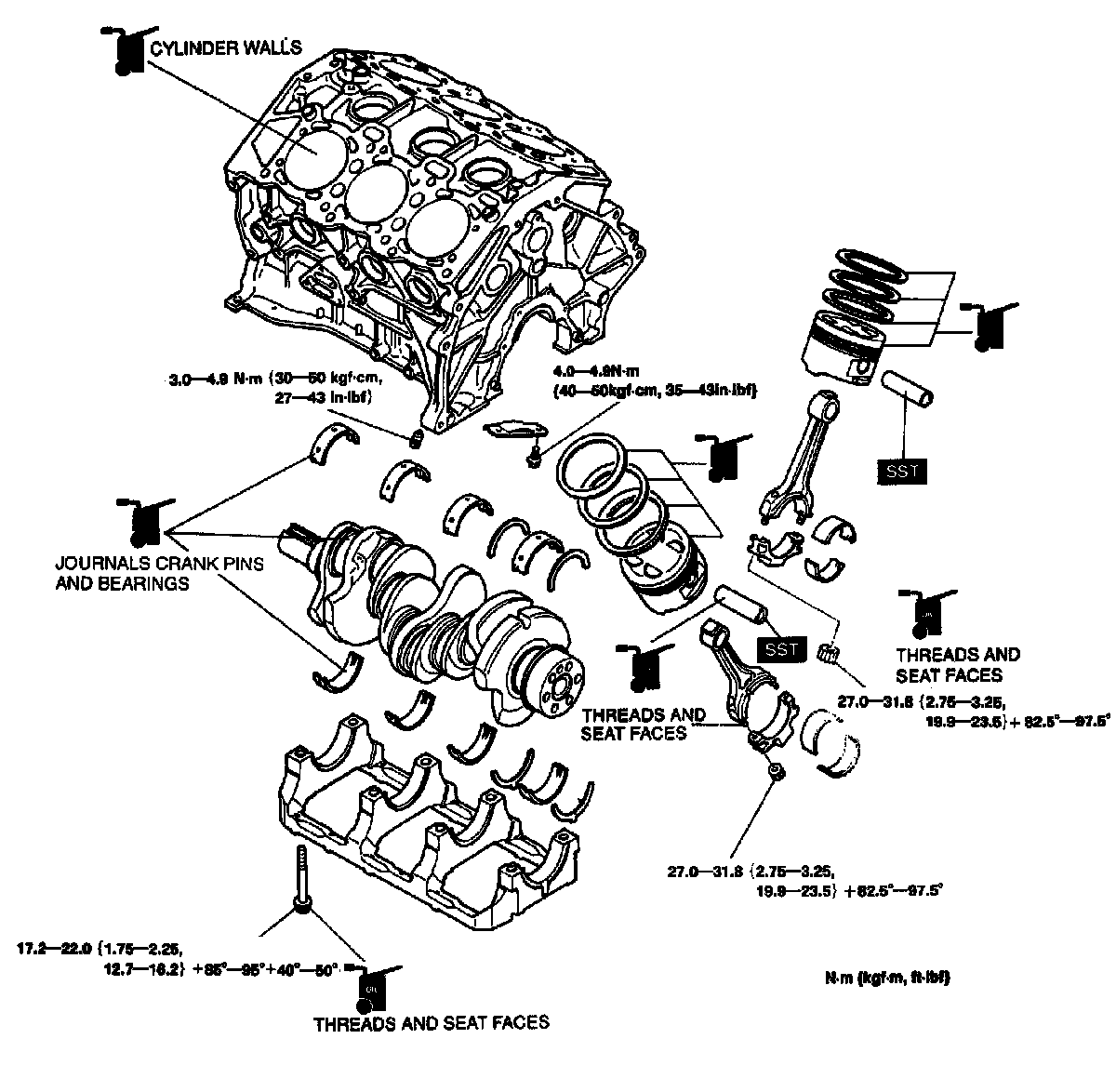

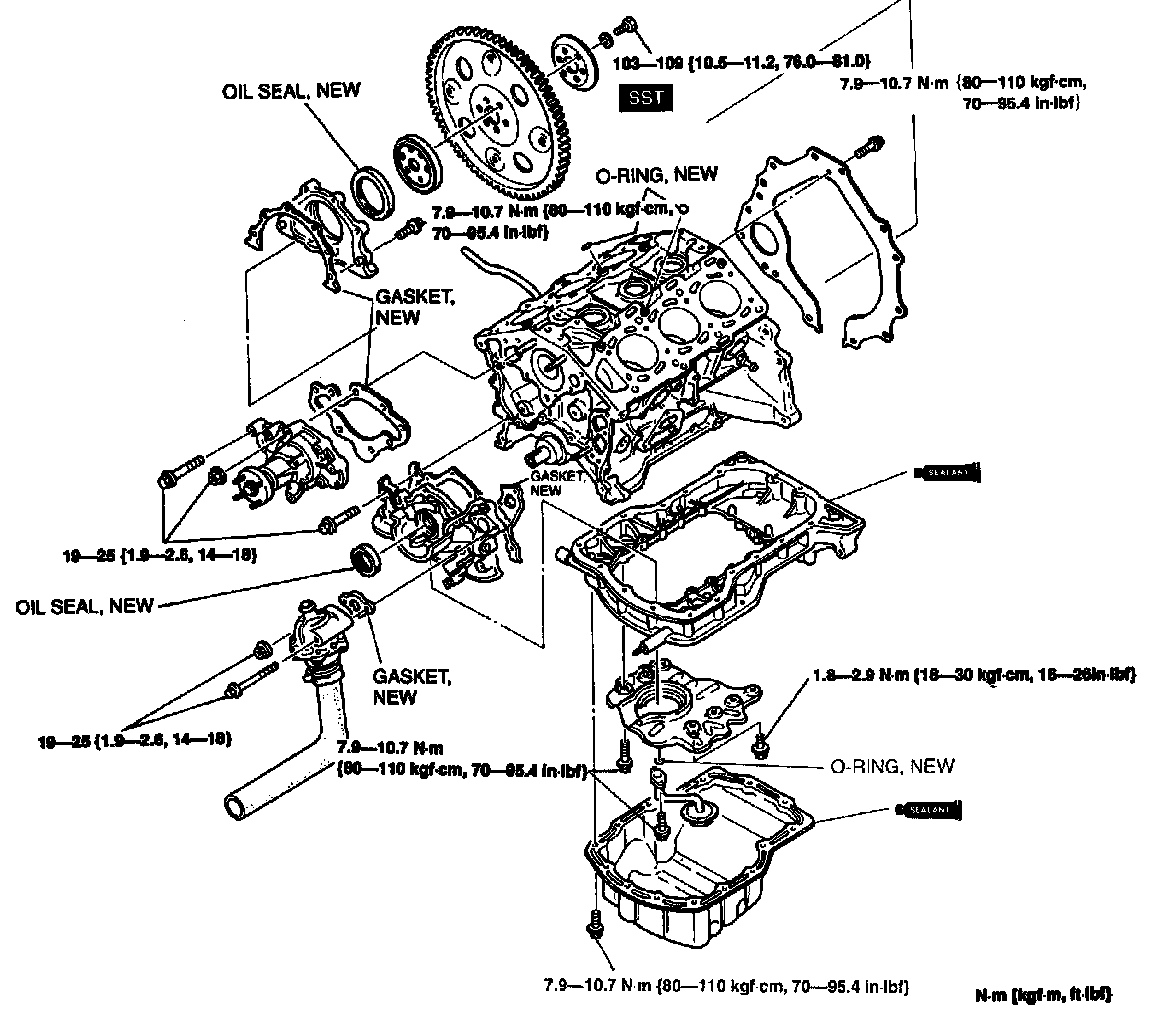

Lower Engine:

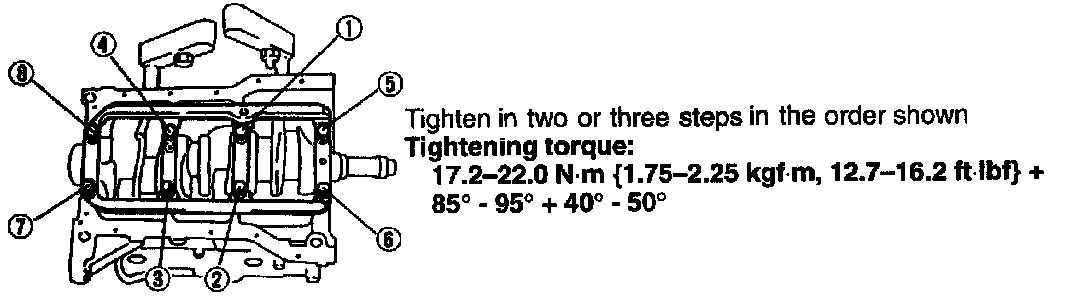

Main Bolt Torque/Sequence:

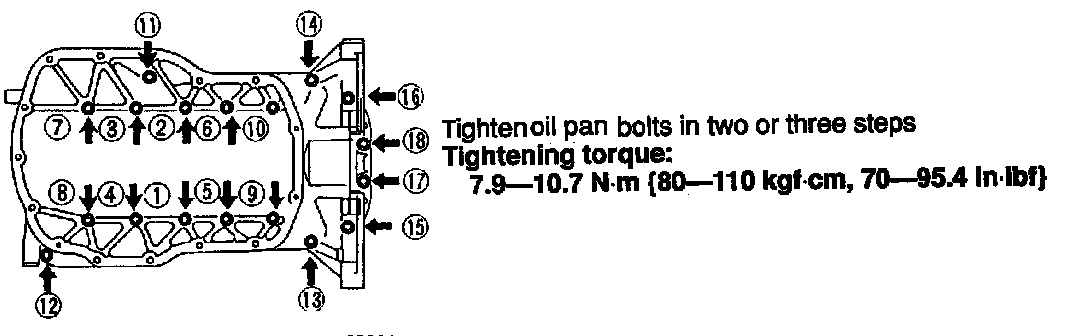

Oil Pan Torque/Sequence:

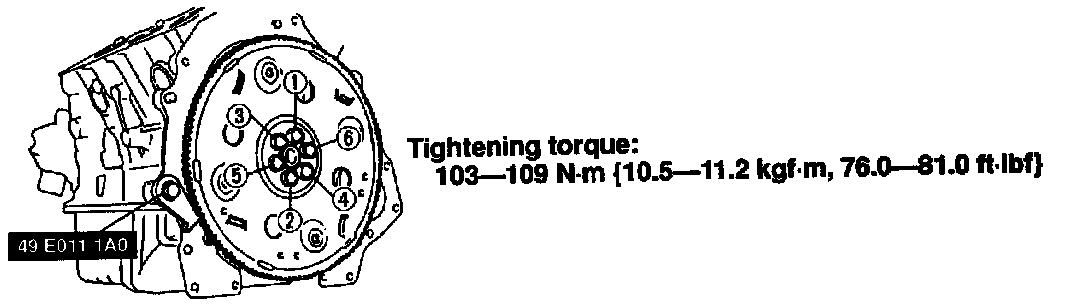

Drive Plate Torque/Sequence:
