Throttle Position Sensor: Service and Repair

Replacement
1. Disconnect the throttle position sensor connector.

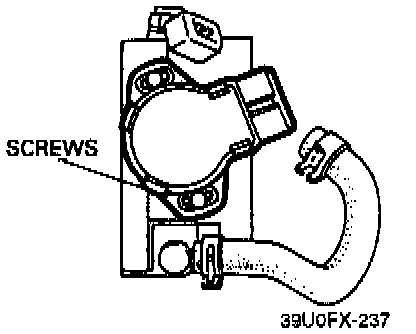

2. Remove the screws.
3. Remove the throttle position sensor.
4. Install the throttle position sensor.
5. Adjust the idle switch.
6. Tighten the screws and seal them with white paint.

Tightening Torque: 2.0-2.3 Nm (17-21 in.lb.)
