Transmission Position Sensor/Switch: Service and Repair

Replacement
Refer to "Adjustment" below for replacement of the park/ neutral switch.


Adjustment
1. Remove the selector rod the from the manual shaft lever.
2. Move the manual shaft to N range position.

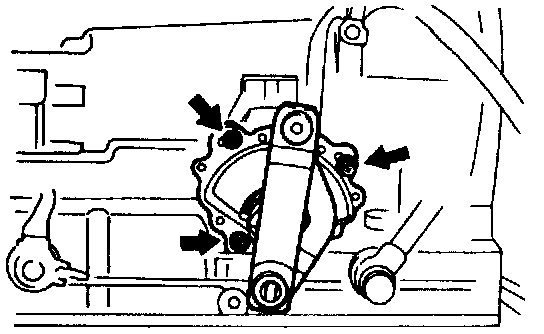

3. Loosen the park/neutral switch mounting bolts.

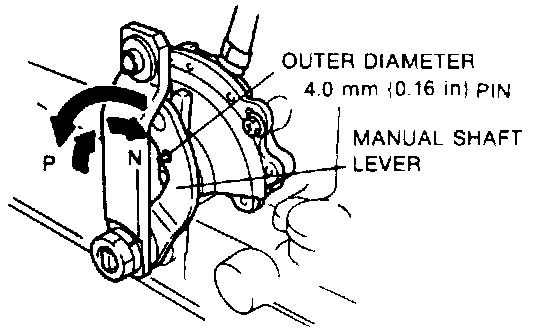

4. Align the holes of the park/neutral switch and the manual shaft by inserting a 4.0 mm (0.16 in) outer diameter pin.




5. Tighten the park/neutral switch mounting bolts and remove the pin.

Tightening Torque: 2.5-3.9 Nm (22-34 in.lb.)

6. Recheck the continuity of the park/neutral switch.
7. If not correct, readjust or replace the park/neutral switch.
8. Install the selector rod to the manual shaft lever.
