Finding Short Circuits

Shorts occur between the power (positive) and ground (negative) sides of a circuit. Therefore, finding a short circuit requires determining how the circuit is routed.

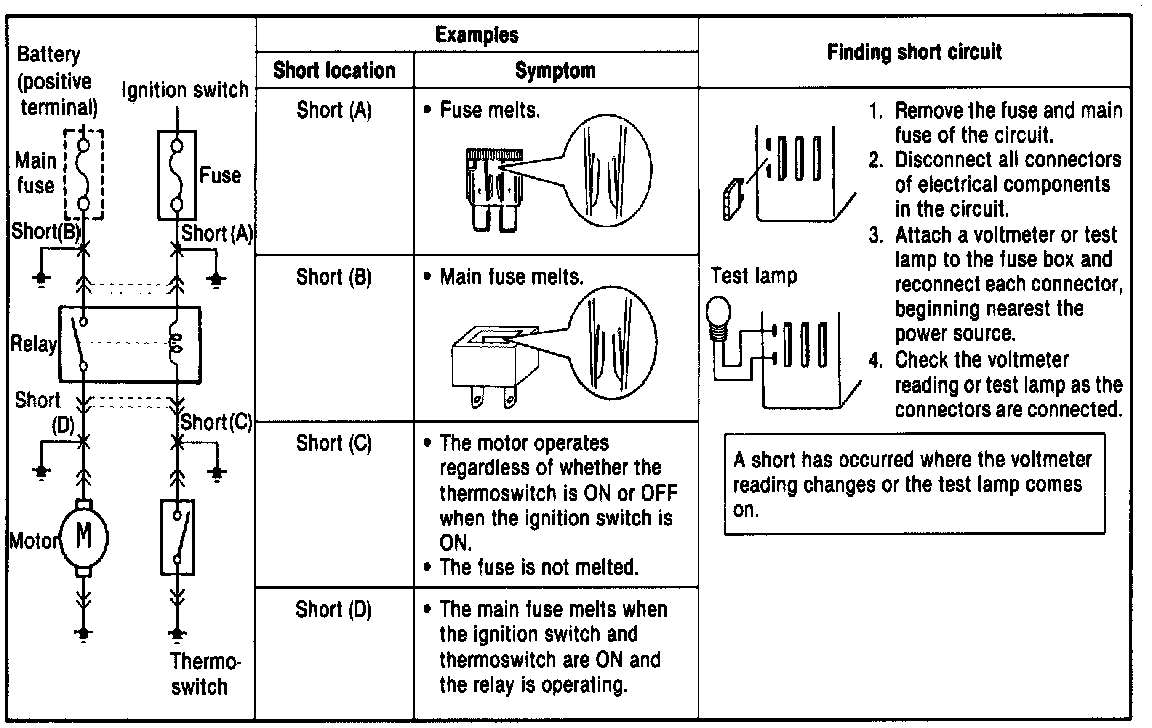

Finding Short Circuits-Circuits Not Connected To Control Unit:

Circuits not connected to control unit

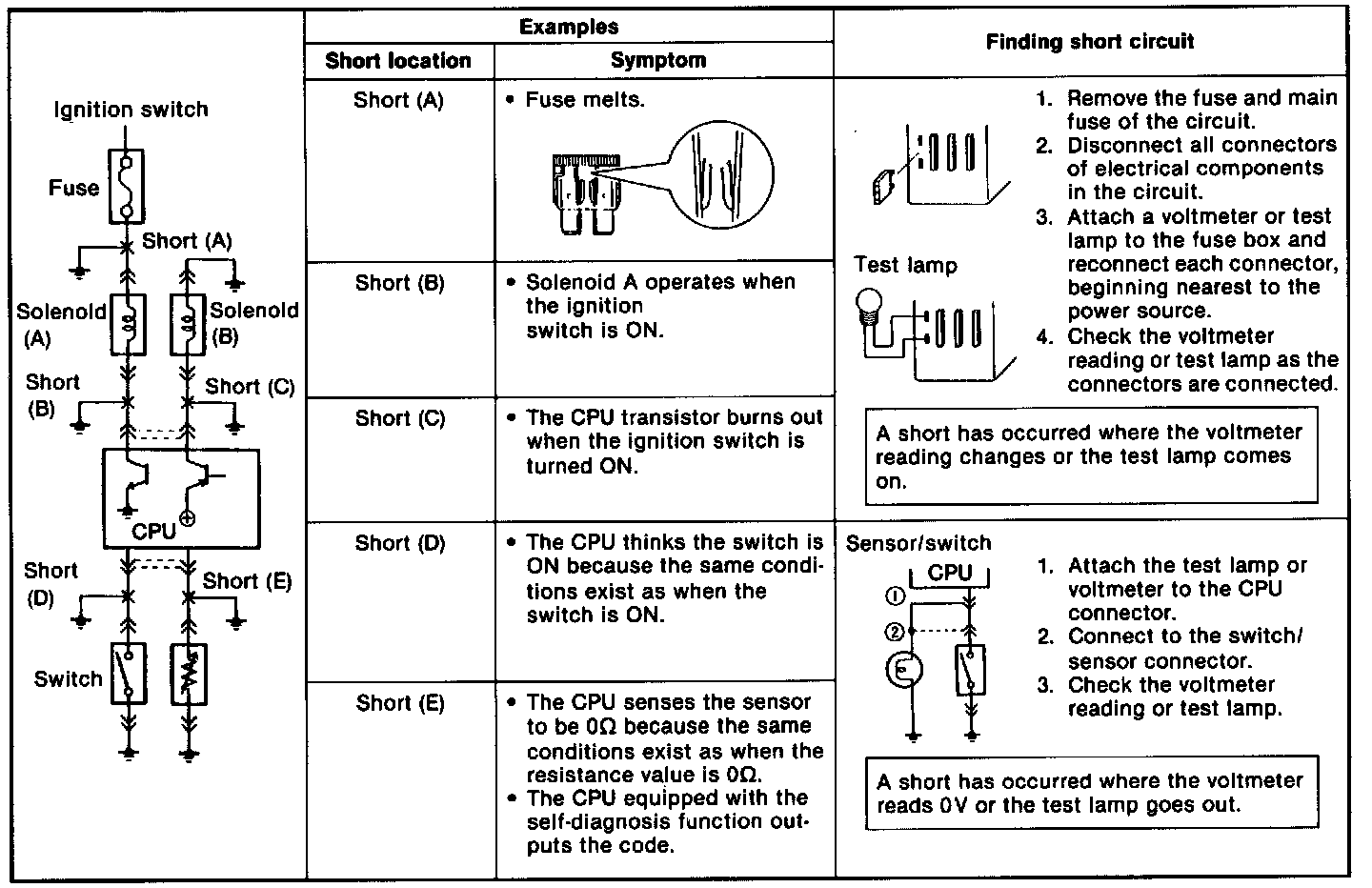

Finding Short Circuits-Circuits Connected To Control Unit:

Circuits connected to control unit
