Home >> Mazda >> 1994 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Specifications >> Terminals 1T-2U

Terminals 1T-2U

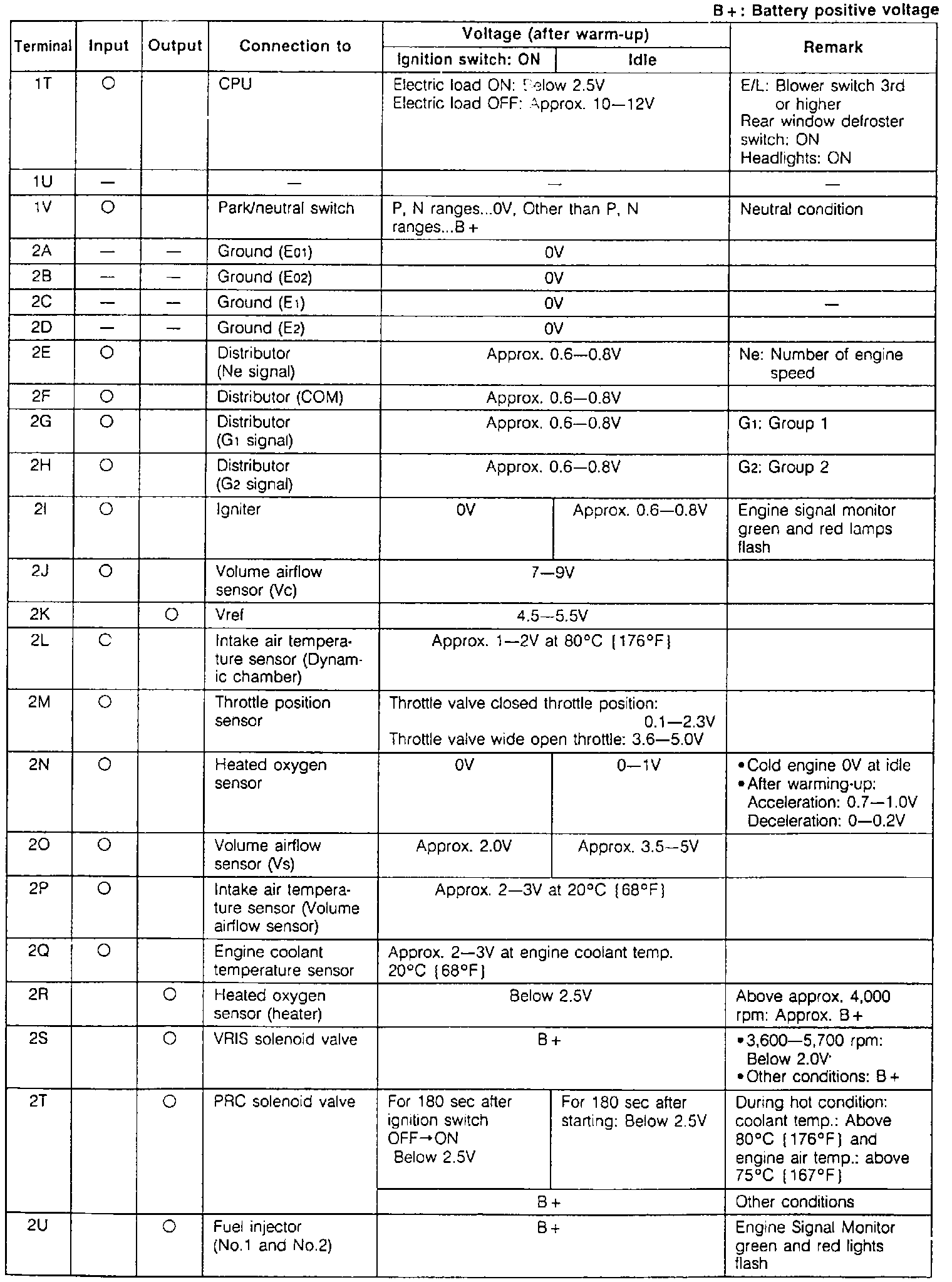

Powertrain Control Module (Engine) Terminal Voltage:
