Air Flow Meter/Sensor: Testing and Inspection

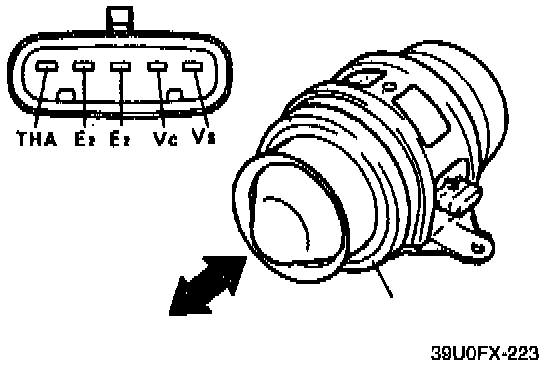

View: Volume Airflow Sensor:

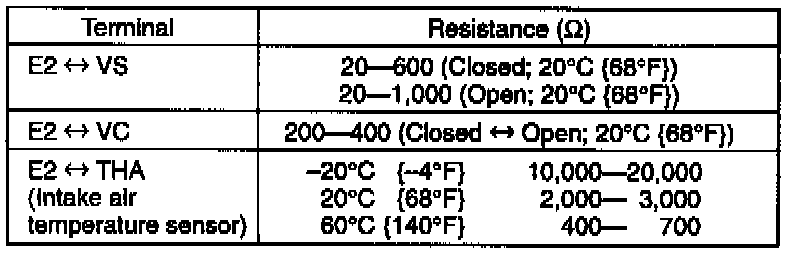

Volume Airflow Sensor Resistance Specifications:

VOLUME AIRFLOW SENSOR
Inspection
1. Check the volume airflow sensor body for cracks and damage.
2. Verify that the measuring plate opens smoothly.
3. Measure the resistance of the volume airflow sensor using a circuit tester.
4. Inspect the grommet for damage. If necessary, replace the grommet.
