Home >> Mazda >> 1993 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Control Module, A/T >> Part 1 of 5

Part 1 of 5

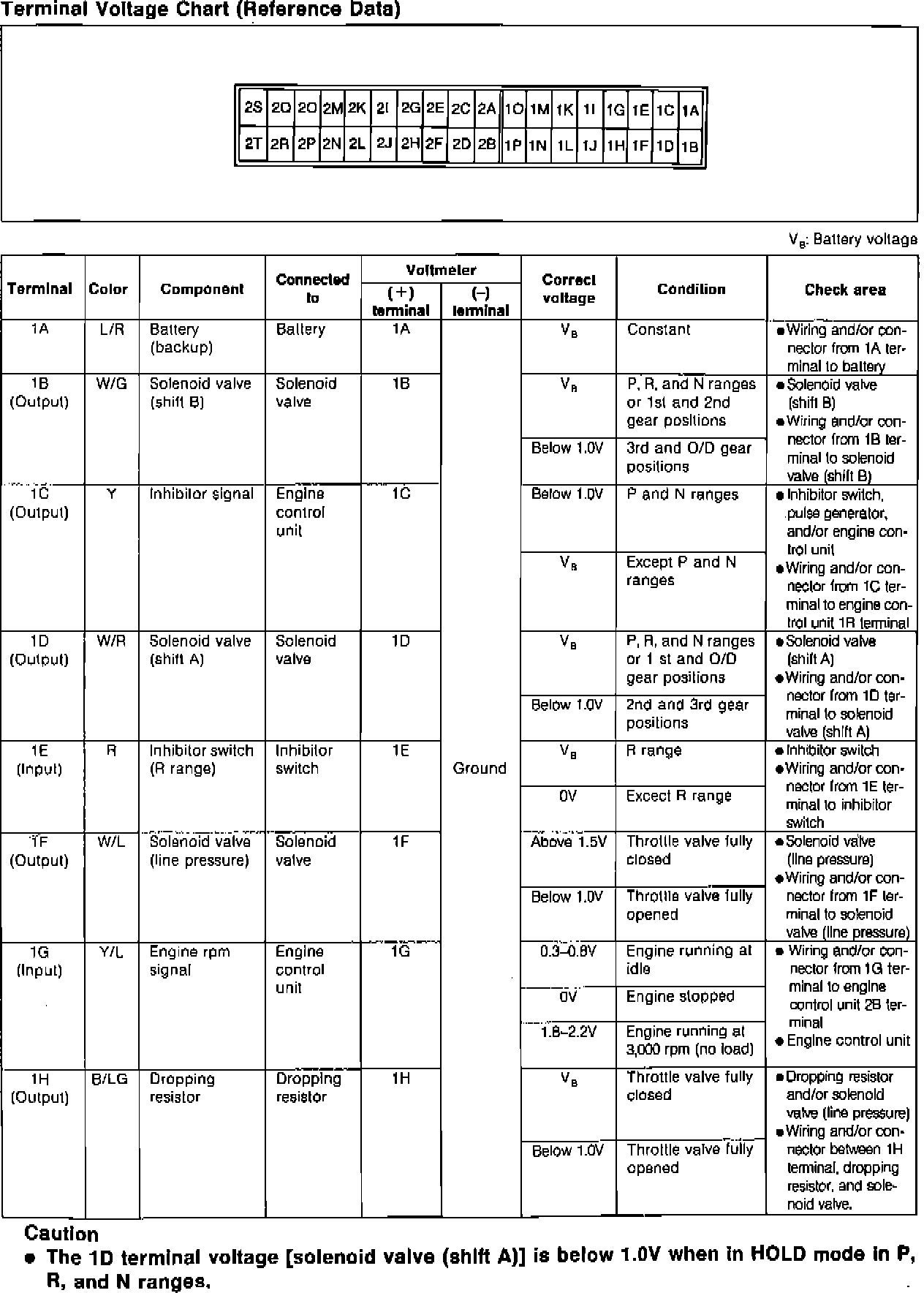

Automatic Transmission Terminal Voltage Chart:
