Pull-Out Test

1. Connect 12 volts to terminal S of starter solenoid and ground starter body, Fig. 20.

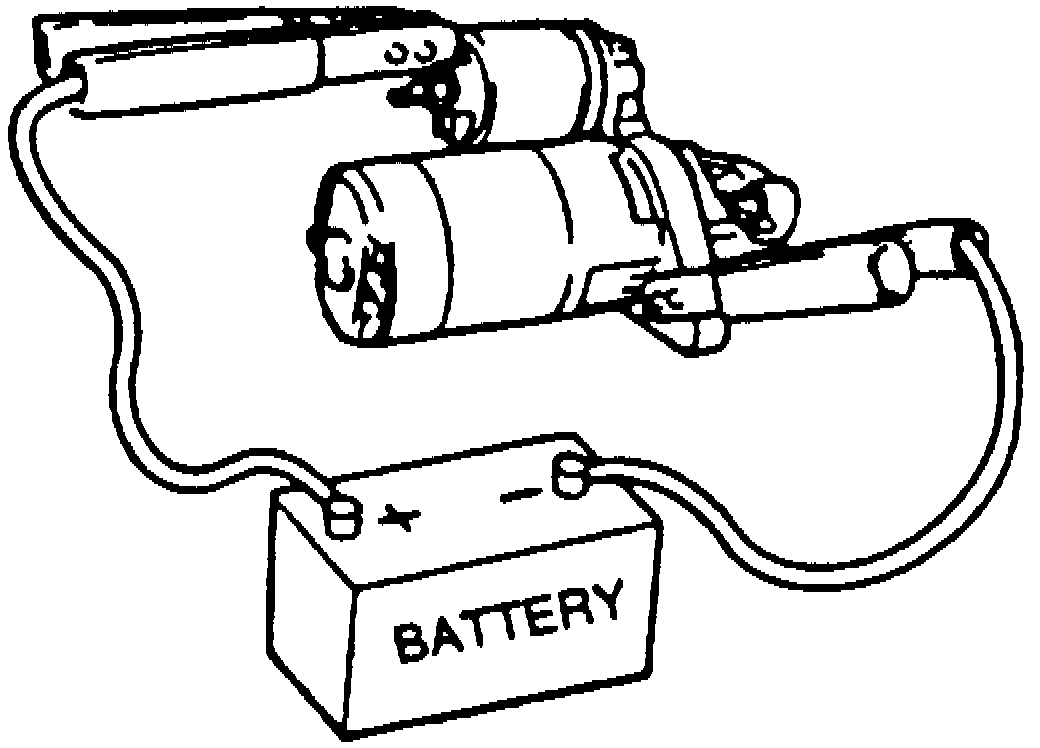

Fig. 20 Pull-out Test Connections:





2. Ensure pinion is pulled out.
