California

PART 1

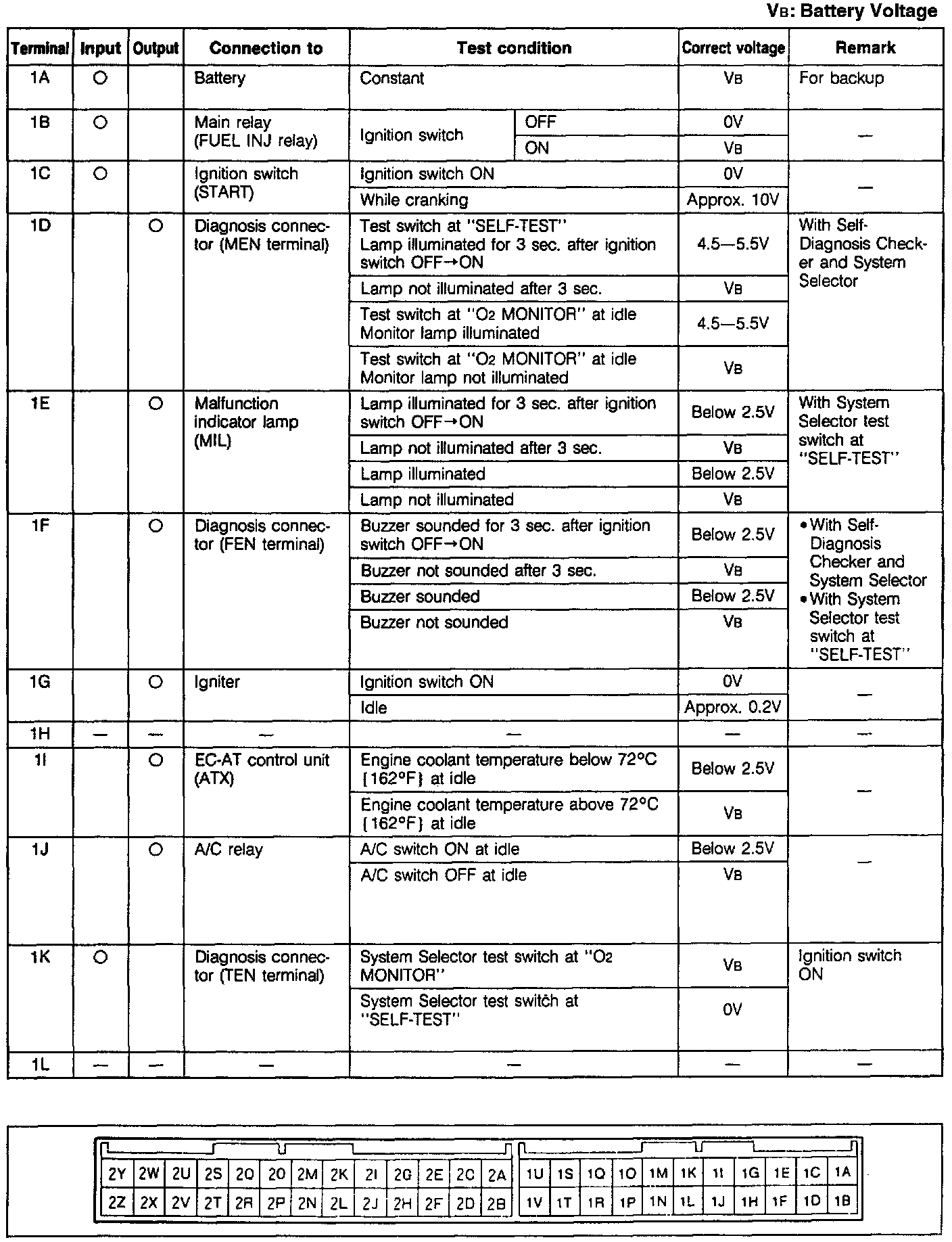

ECU Pin Voltage Chart (Part 1):






PART 2

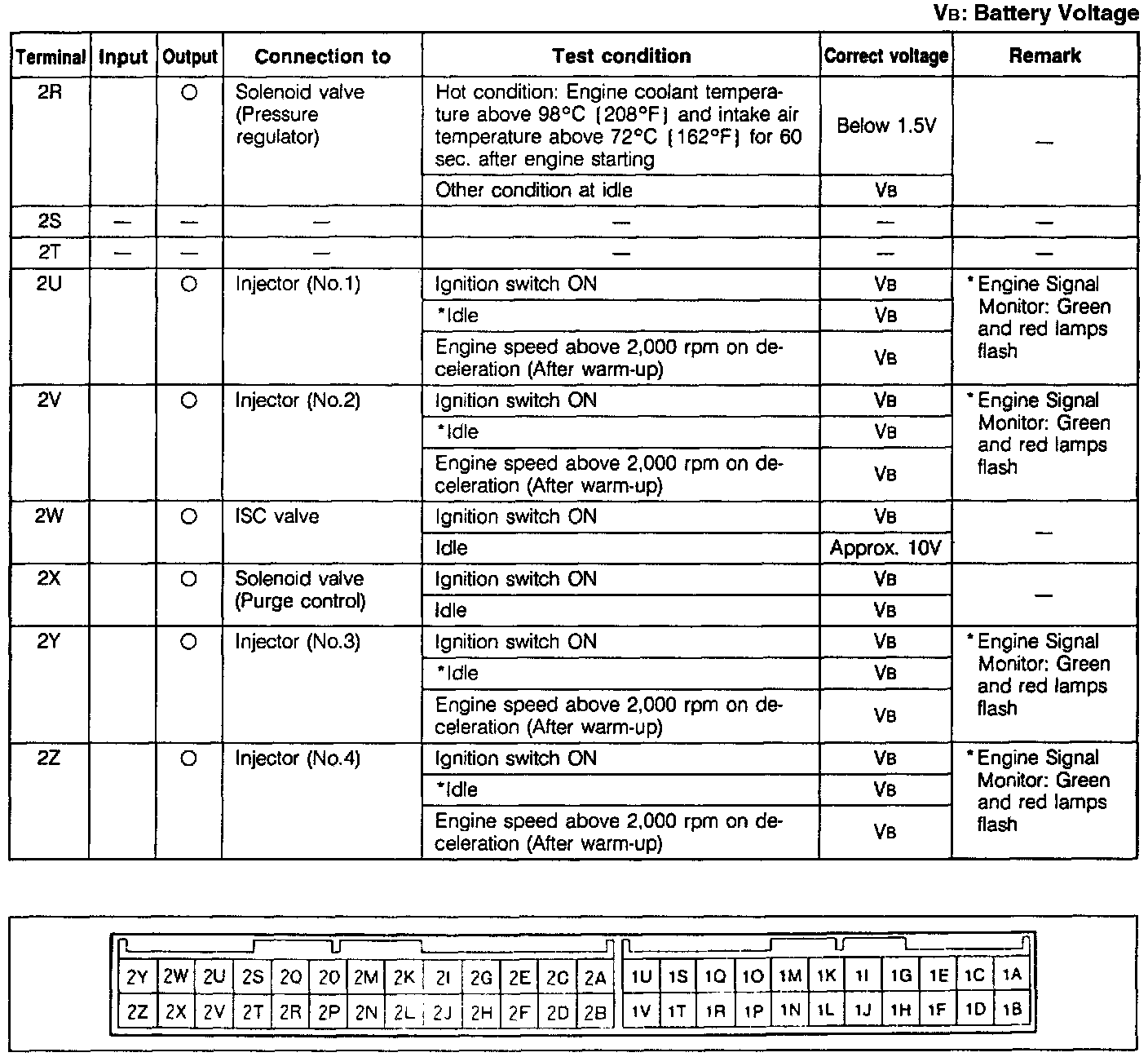

ECU Pin Voltage Chart (Part 2):






PART 3

ECU Pin Voltage Chart (Part 3):






PART 4

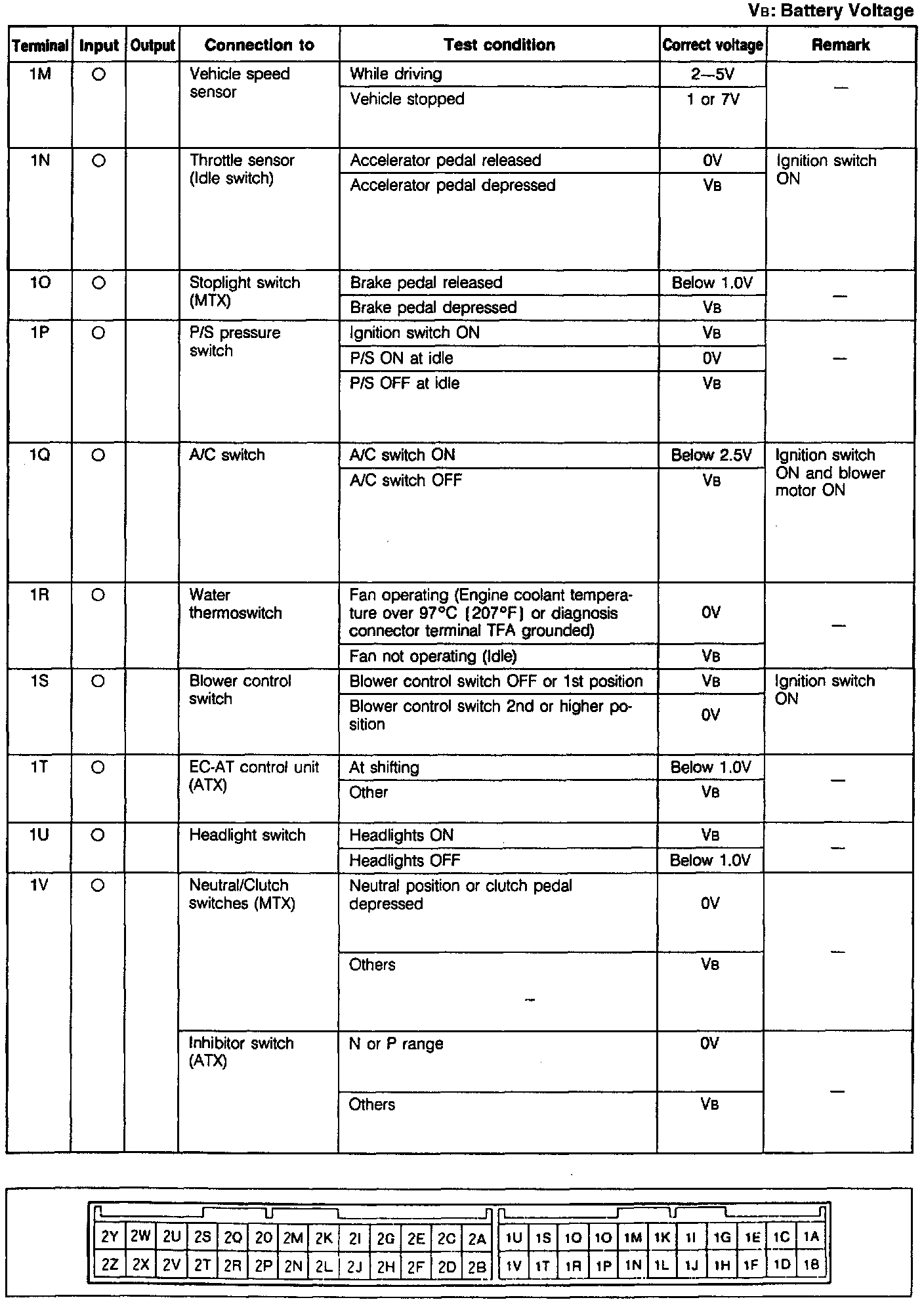

ECU Pin Voltage Chart (Part 4):
