Home >> Mazda >> 1992 >> MX-3 L4-1597cc 1.6L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Automatic Transmission

Automatic Transmission

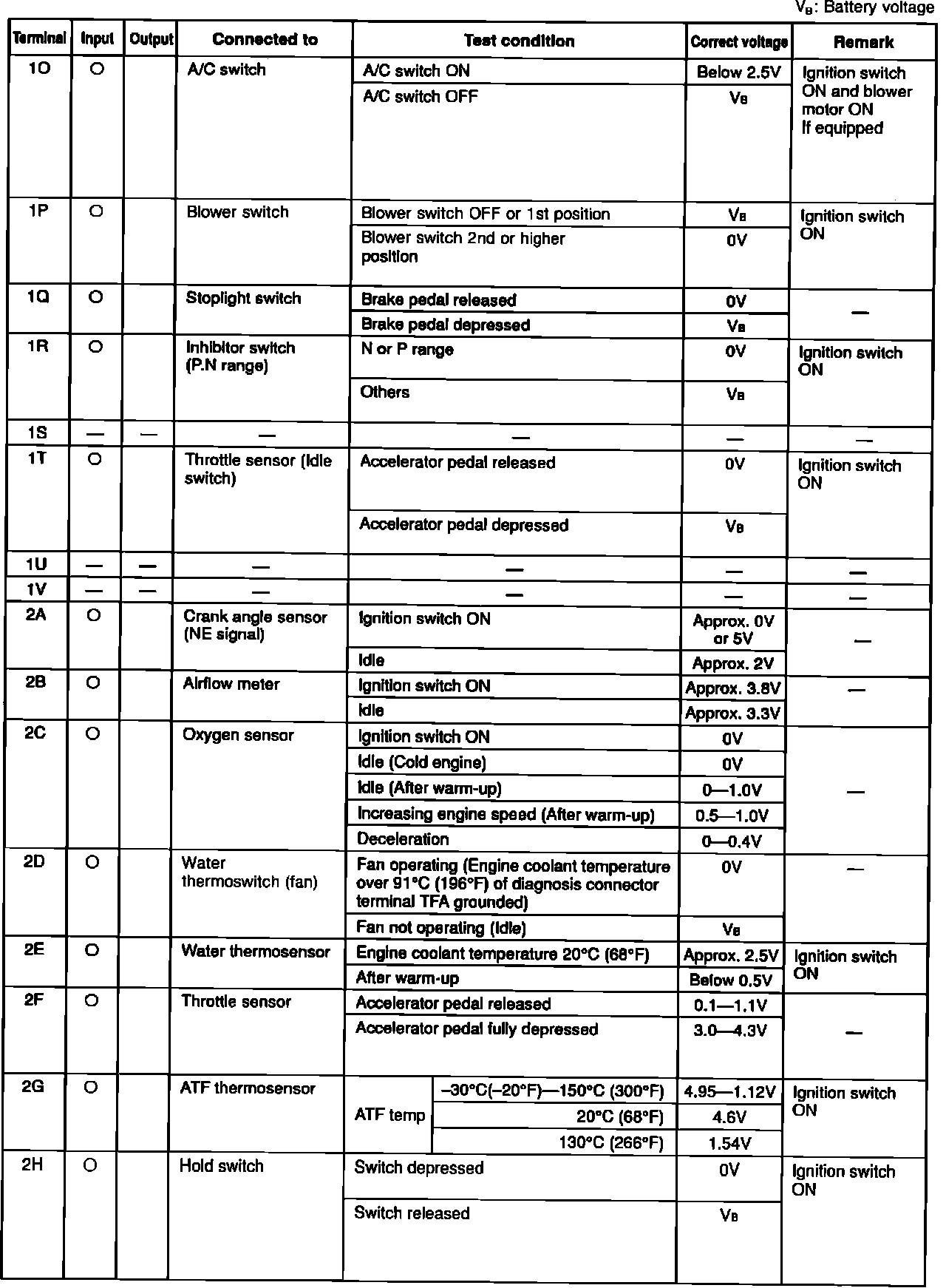

Engine Control System. A/T. ECU Pin Voltage Chart:

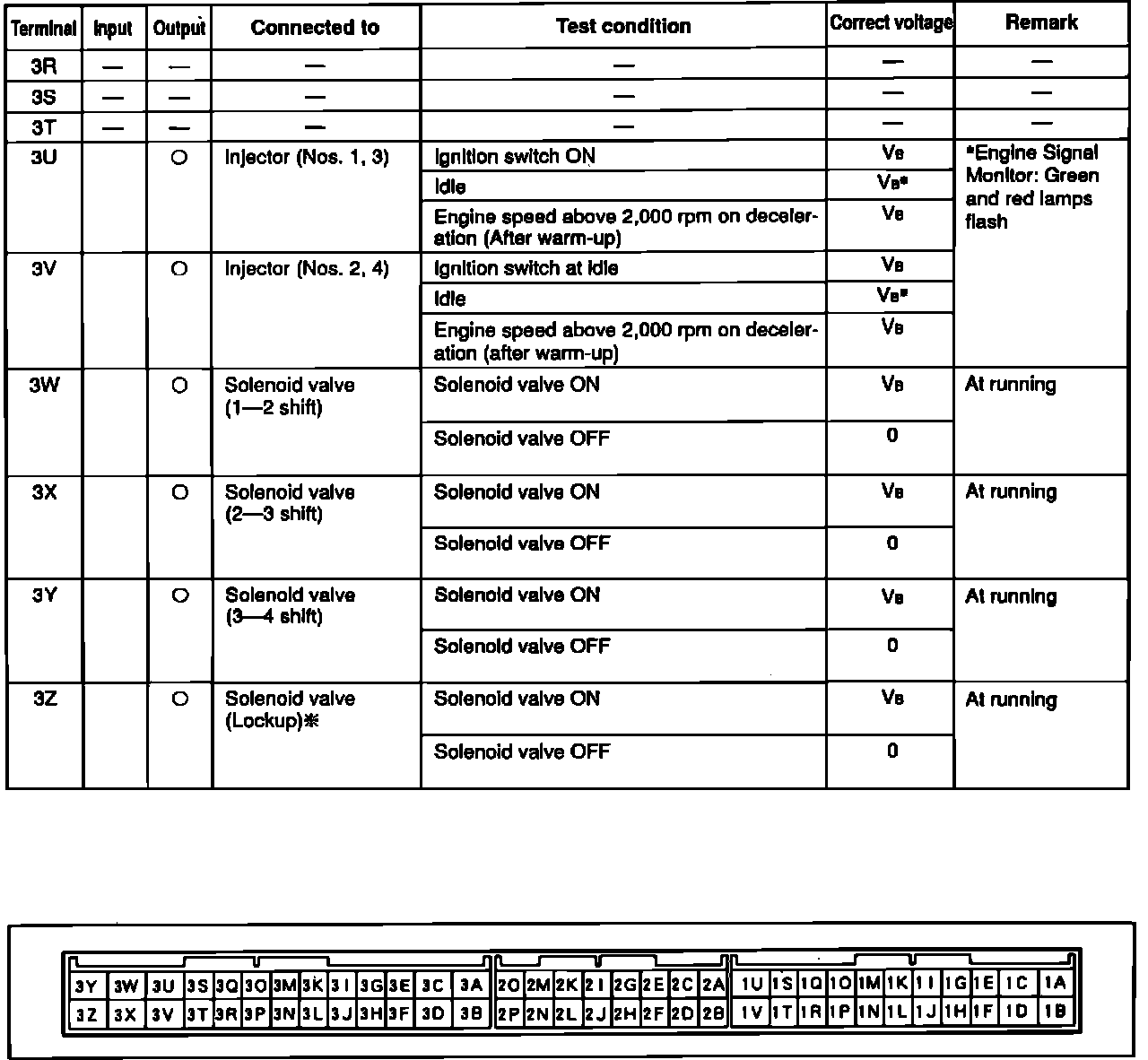

Engine Control System. A/T. ECU Pin Voltage Chart:

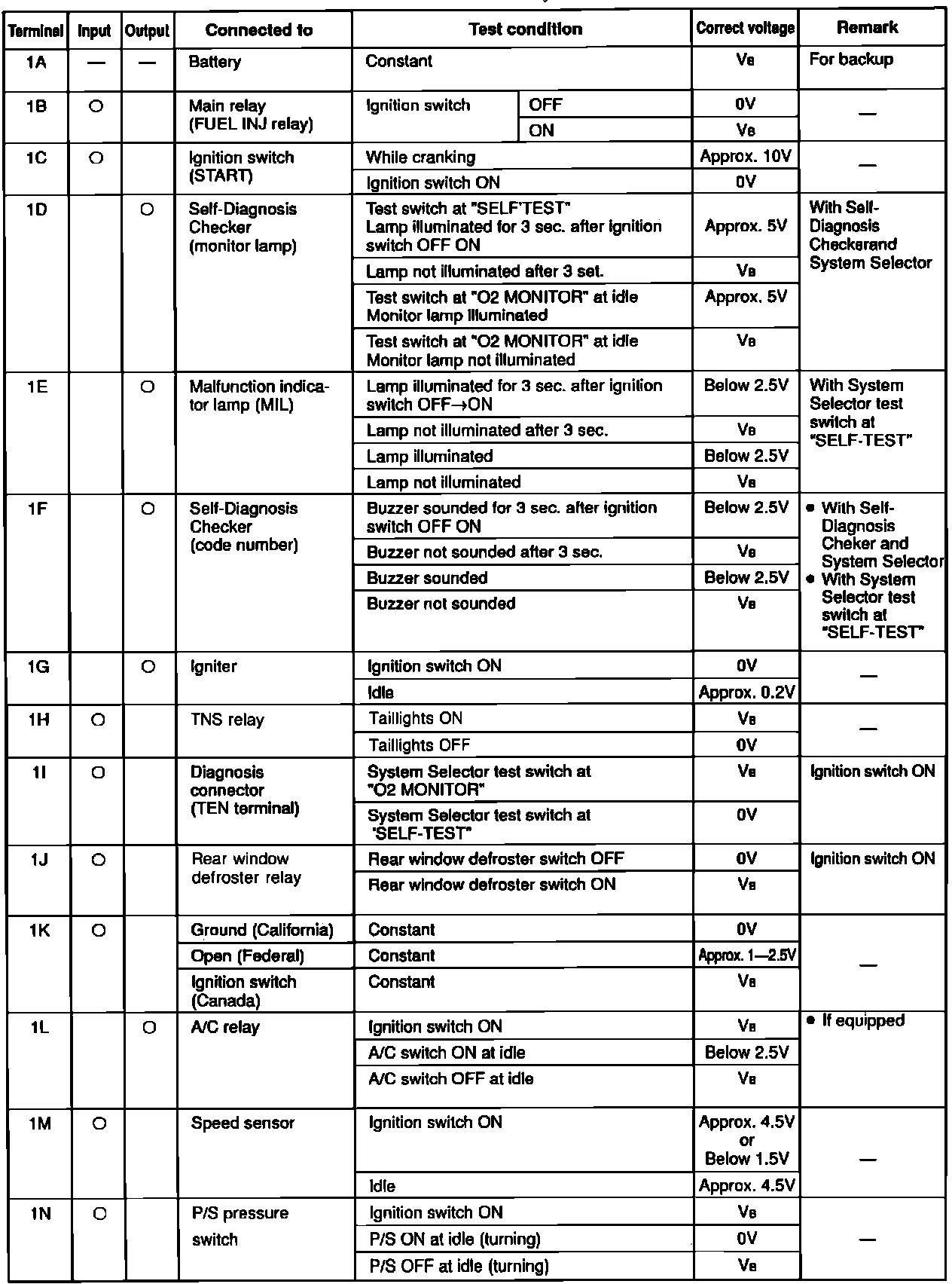

Engine Control System. A/T. ECU Pin Voltage Chart:

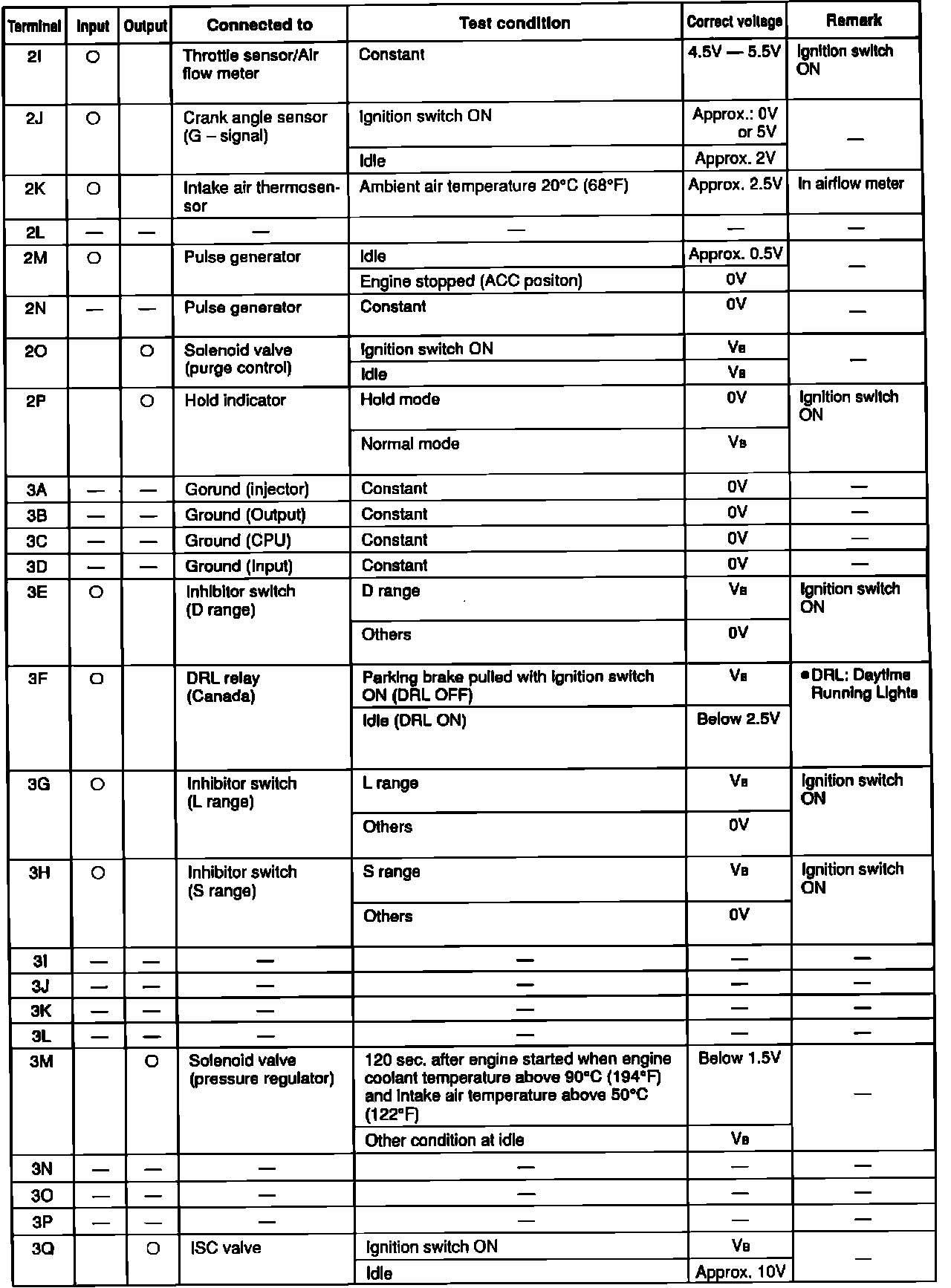

Engine Control System. A/T. ECU Pin Voltage Chart:
