Toe-In

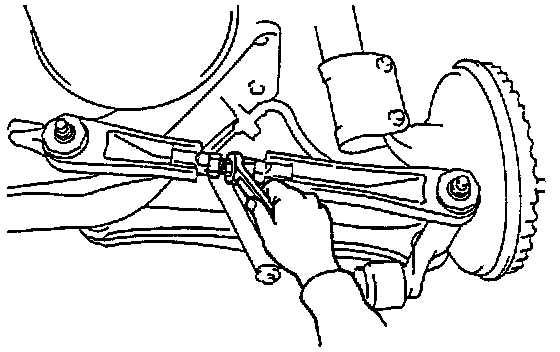

Lateral Link Locknuts:

1. Total toe-in should be 2mm ±3mm (0.08in ±0.12in), if not within spec. loosen the lateral link locknuts.

Adjust Lateral Link Adjustment Rod:

2. Turn the adjustment rod as necessary. One turn of the link changes toe 11.3mm (0.44 in).
3. After adjustments are complete, torque lateral link locknuts to 55-64 Nm (41-47 ft.lbs).
