Home
>>
Mazda
>>
1992
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Timer/Control Unit
>>
Locations

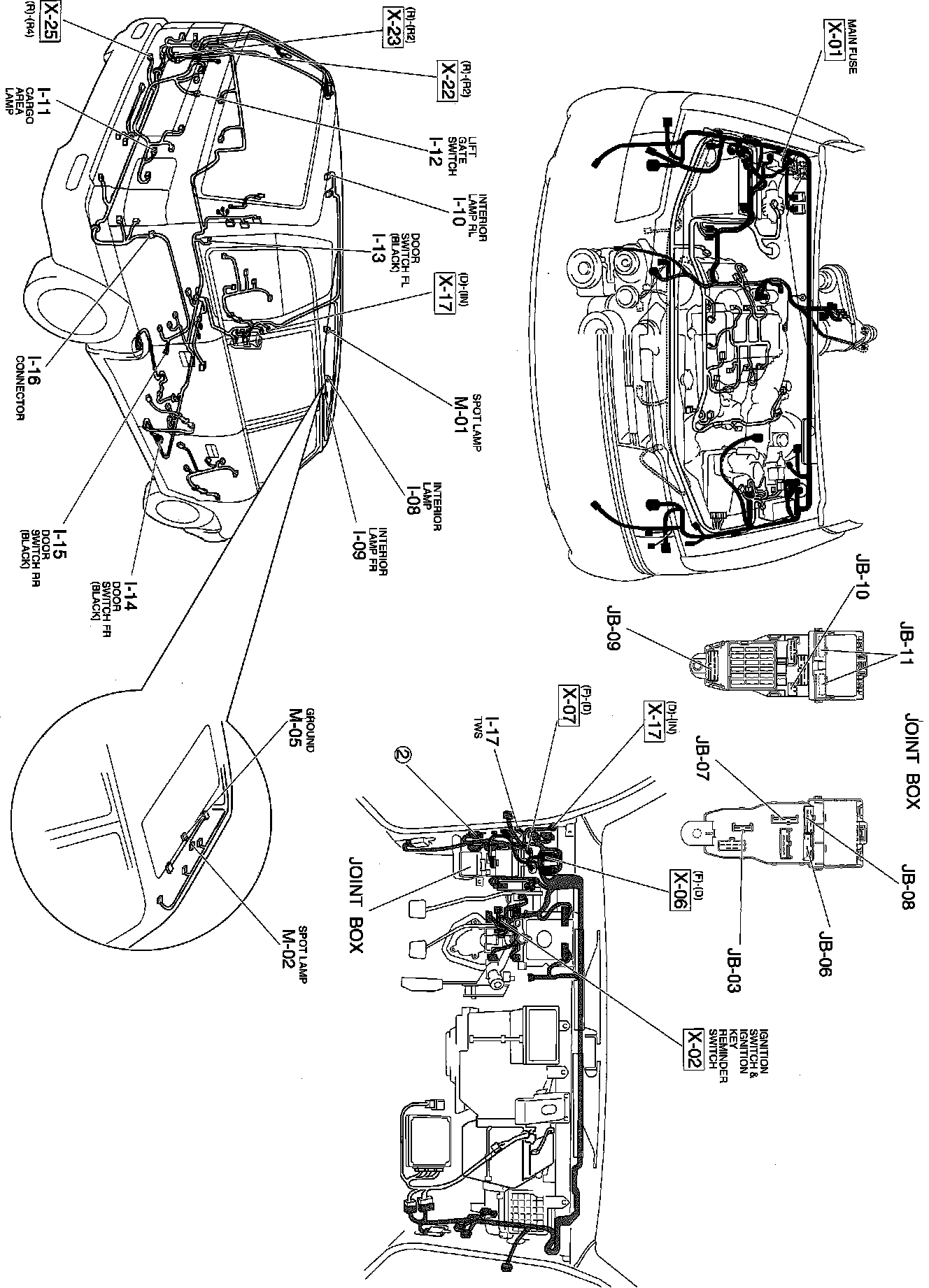

Timer/Control Unit: Locations
Interior And Spot Lamps. Central Processing Unit (CPU). Harness And Connector Locations:

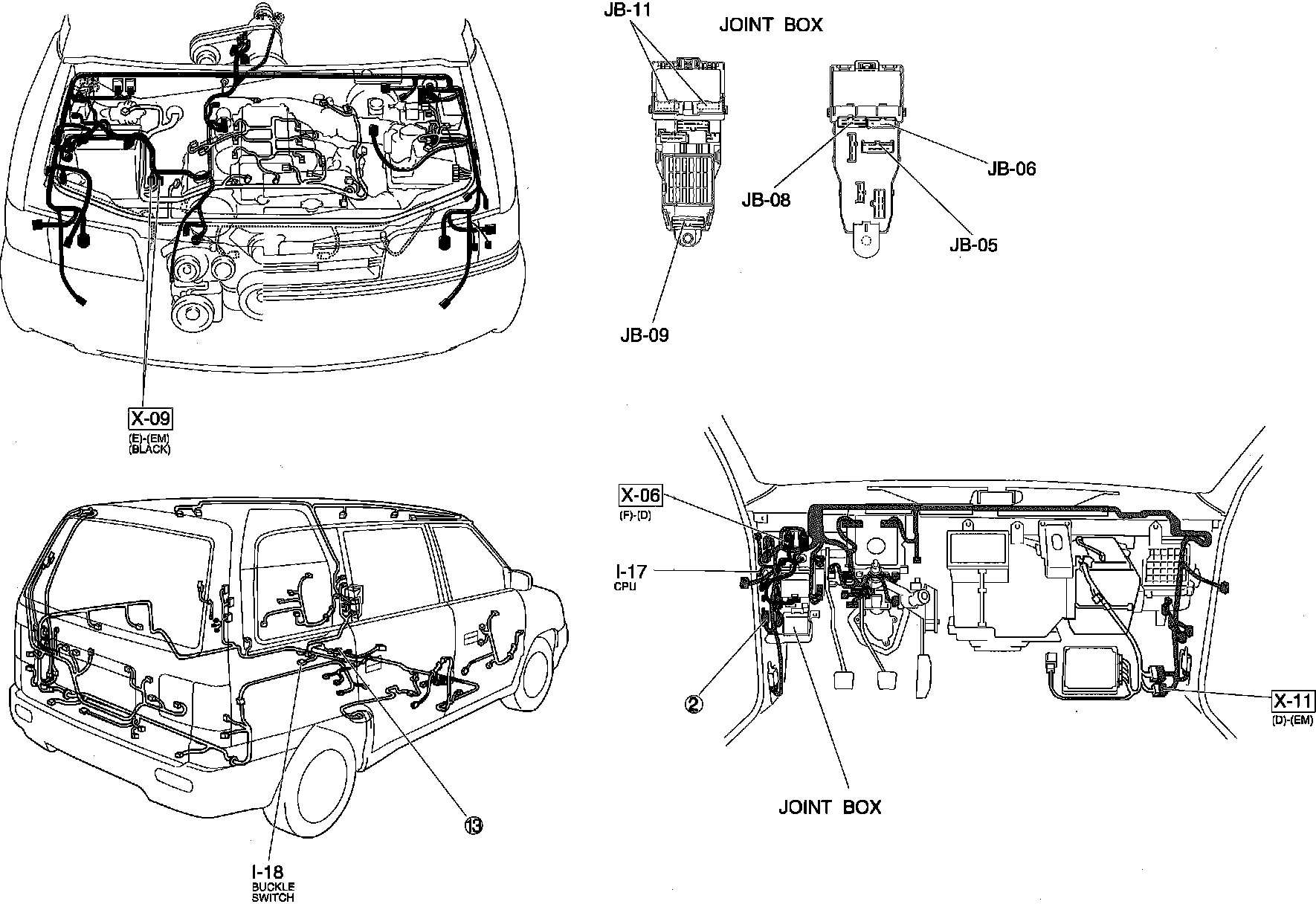

Central Processing Unit (CPU). Harness And Connector Locations:
