Front Wheel Alignment

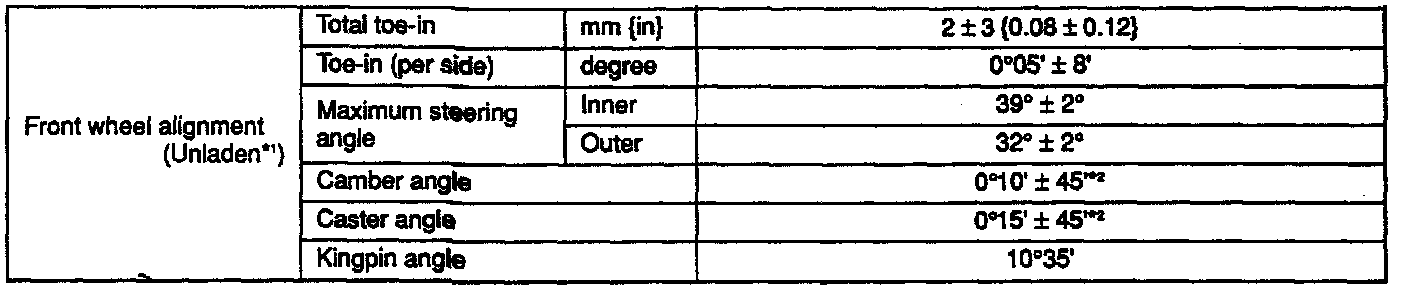

SPECIFICATION TABLE

Front Wheel Alignment Specifications:

FOOTNOTES

*1--Unladen means fuel tank full, radiator coolant and engine oil at specified levels, spare tire, jack, and tools in designated positions.

*2--Difference between right and left must not exceed 1 degree.
