Manual Transaxle

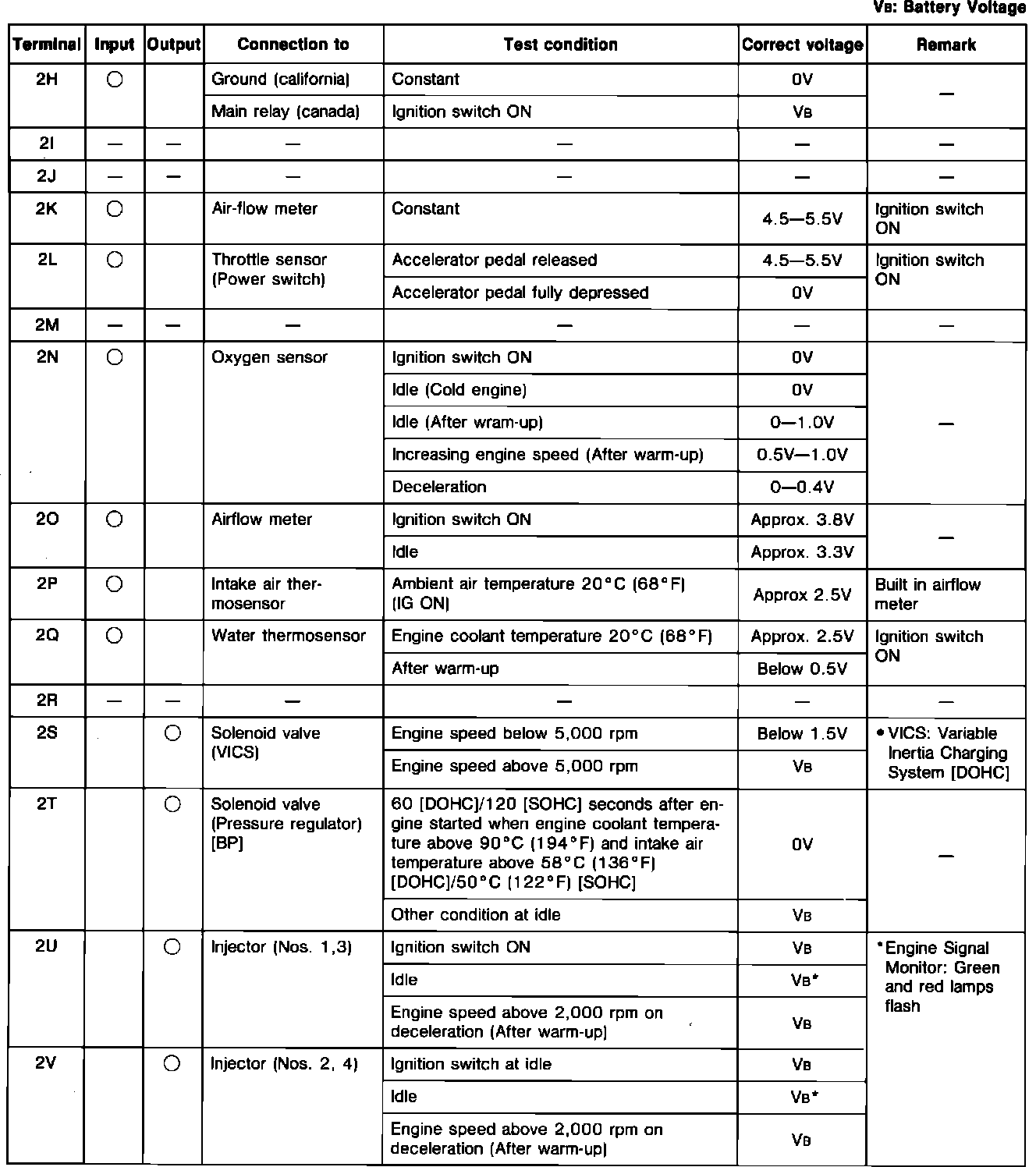

Engine Control System. M/T. ECU Pin Voltage Chart:

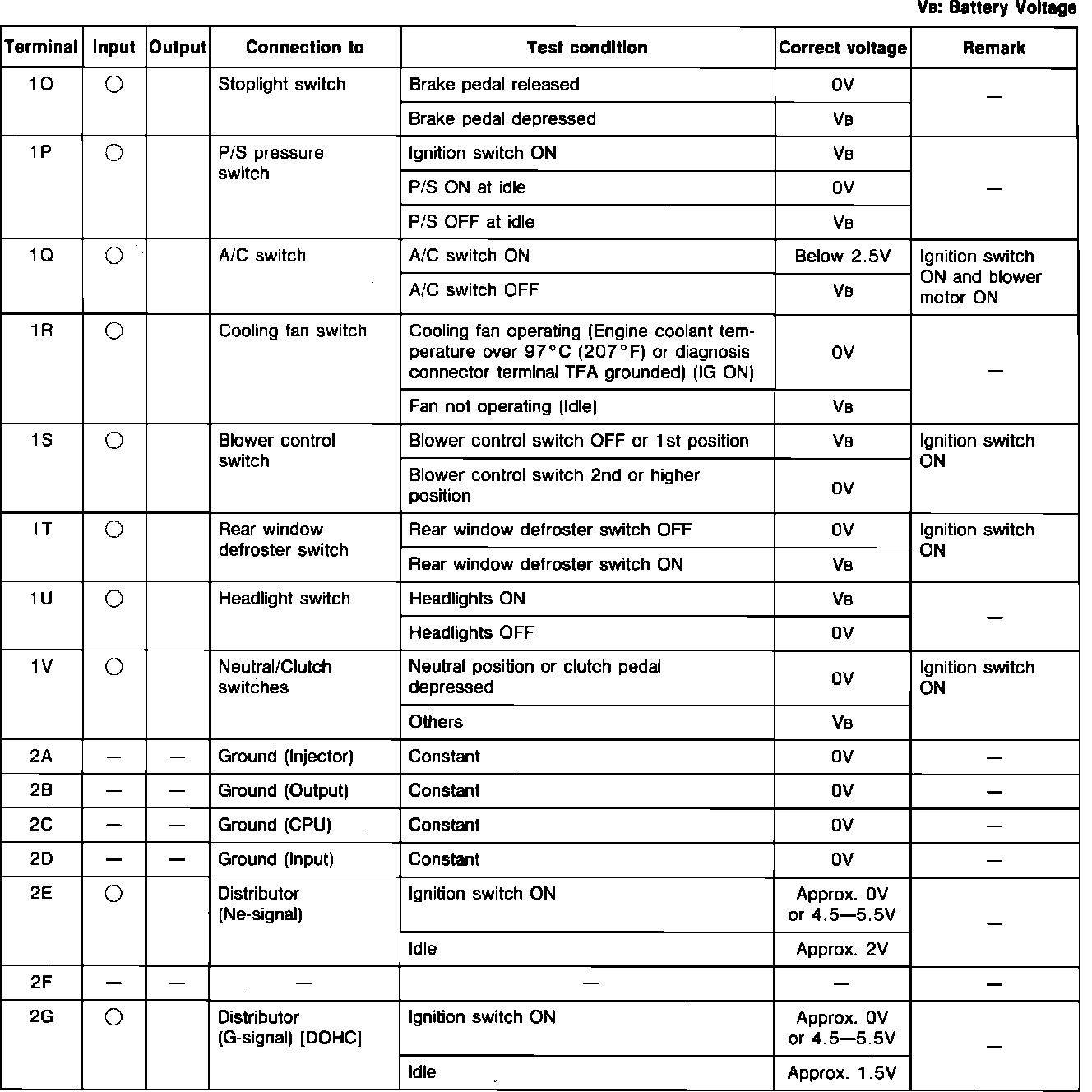

Engine Control System. M/T. ECU Pin Voltage Chart:

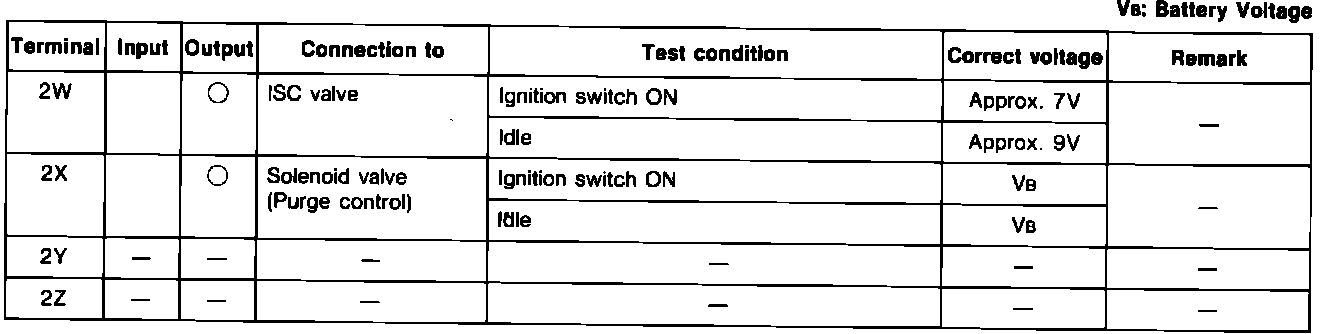

Engine Control System. M/T. ECU Pin Voltage Chart:

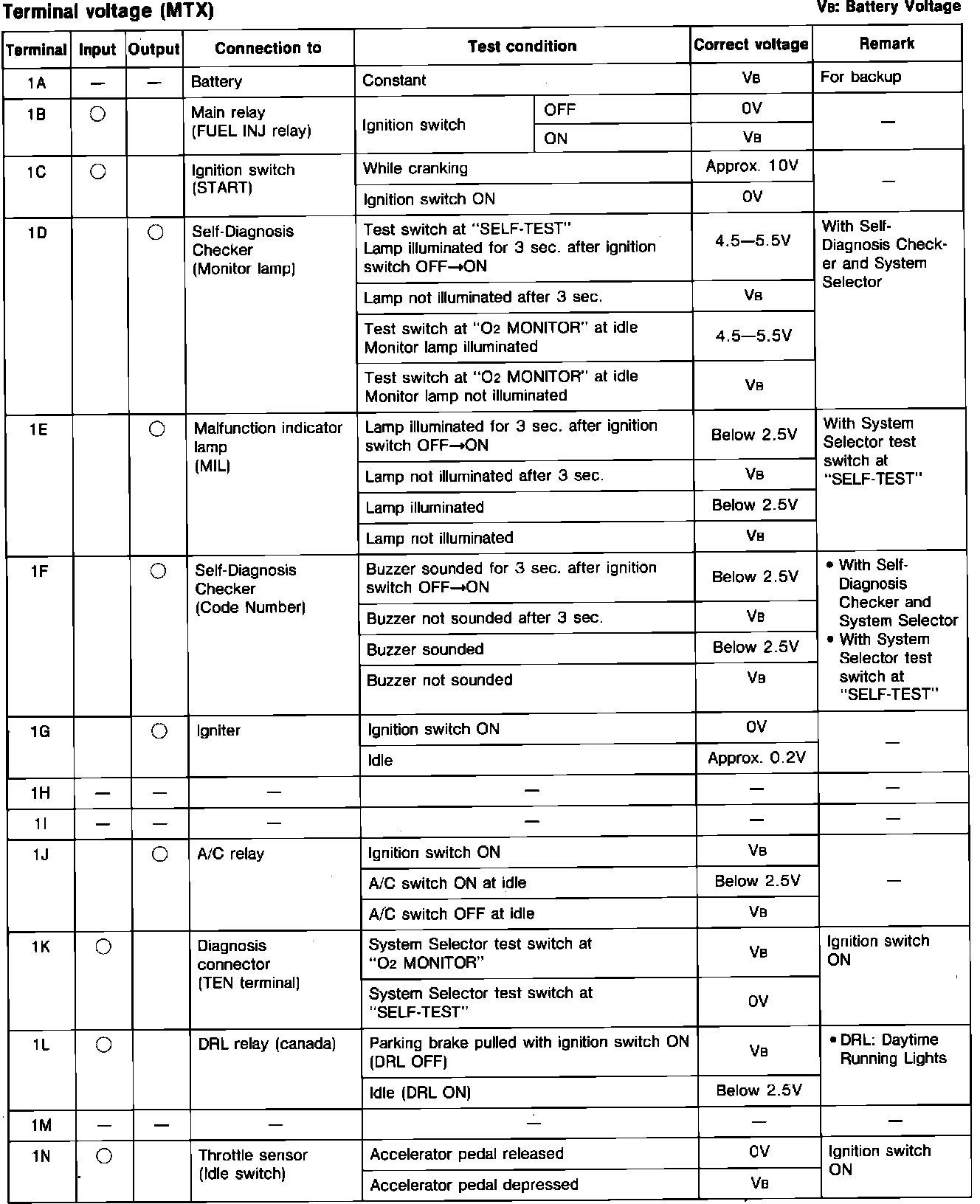

Engine Control System. M/T. ECU Pin Voltage Chart:
