Ignition Control Module: Testing and Inspection

Pick-Up Coil Resistance Check:

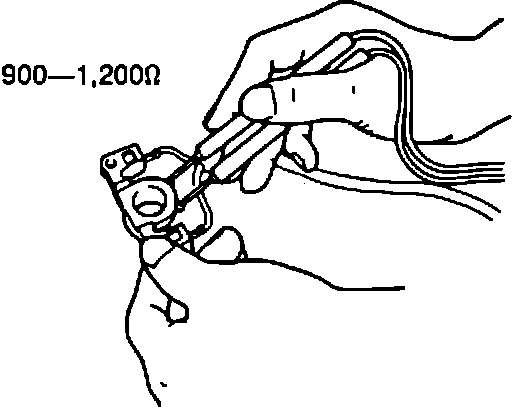

Pickup Coil with Igniter

1. Measure resistance across pick-up coil terminals. It should read 900 - 1200 ohms.
2. If not within specification, replace pick-up coil and igniter assembly.
