Home >> Mazda >> 1990 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Control Module >> Locations

Power Door Lock Control Module: Locations

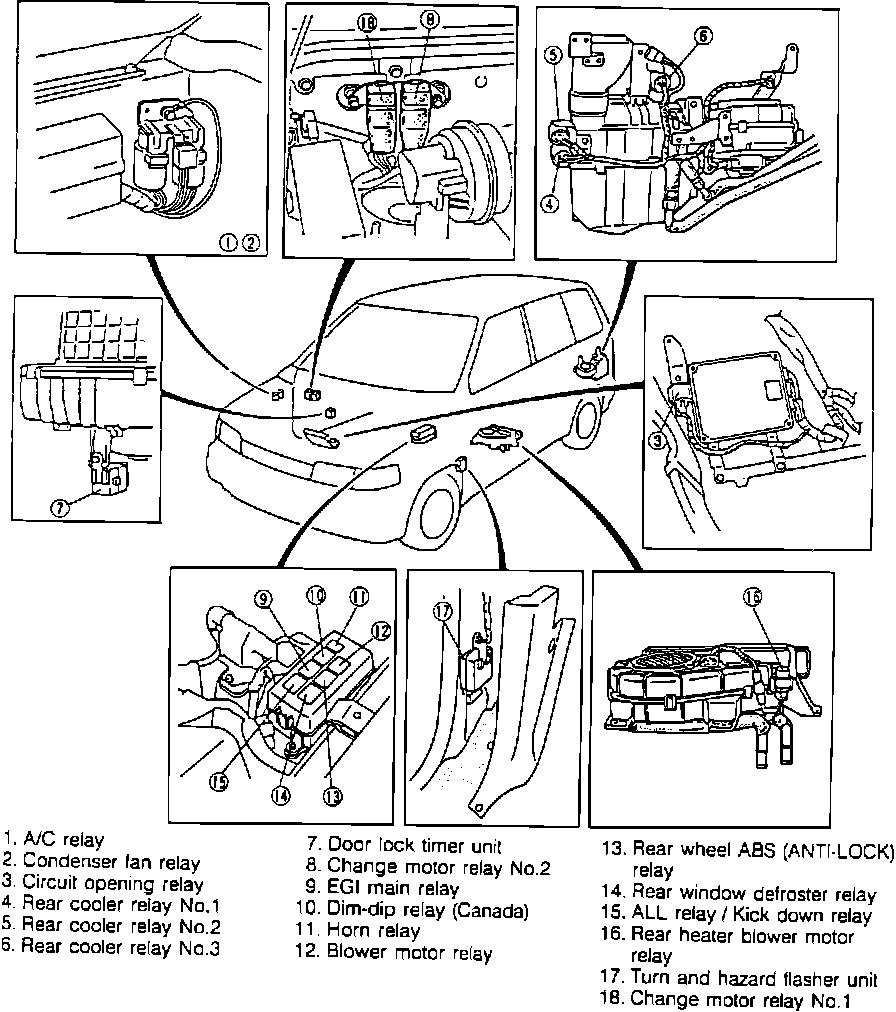

Relay Locations:




Behind RH Side Of I/P

Applicable to: 1990 Models
