Control Module, A/T
Control Module, A/T

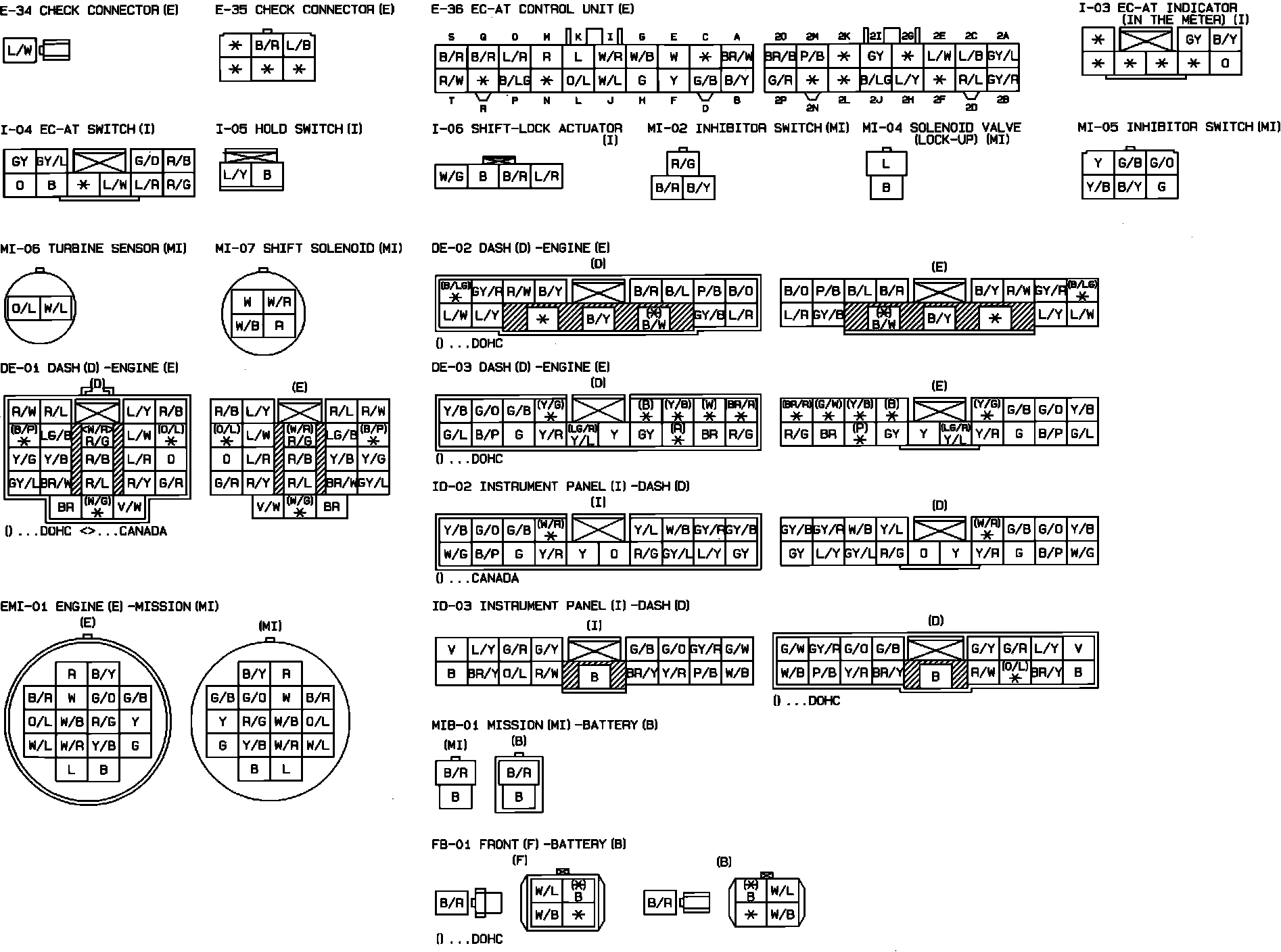

Automatic Transmission Control Unit & Shift Lock System. SOHC Engine. Connector Identification:
