Home >> Mazda >> 1990 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

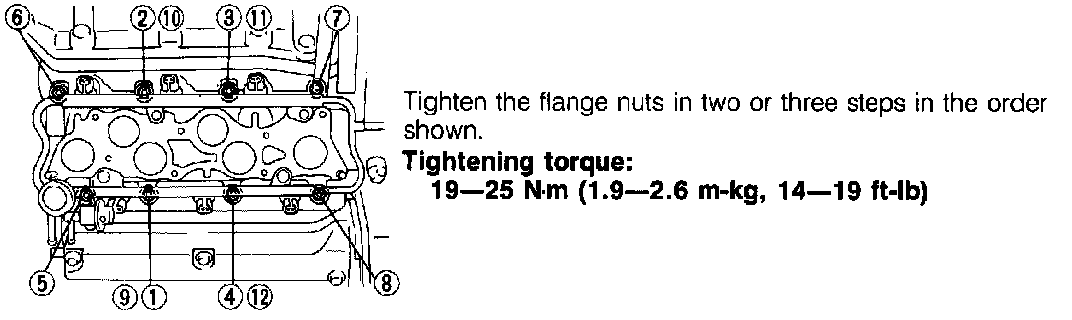

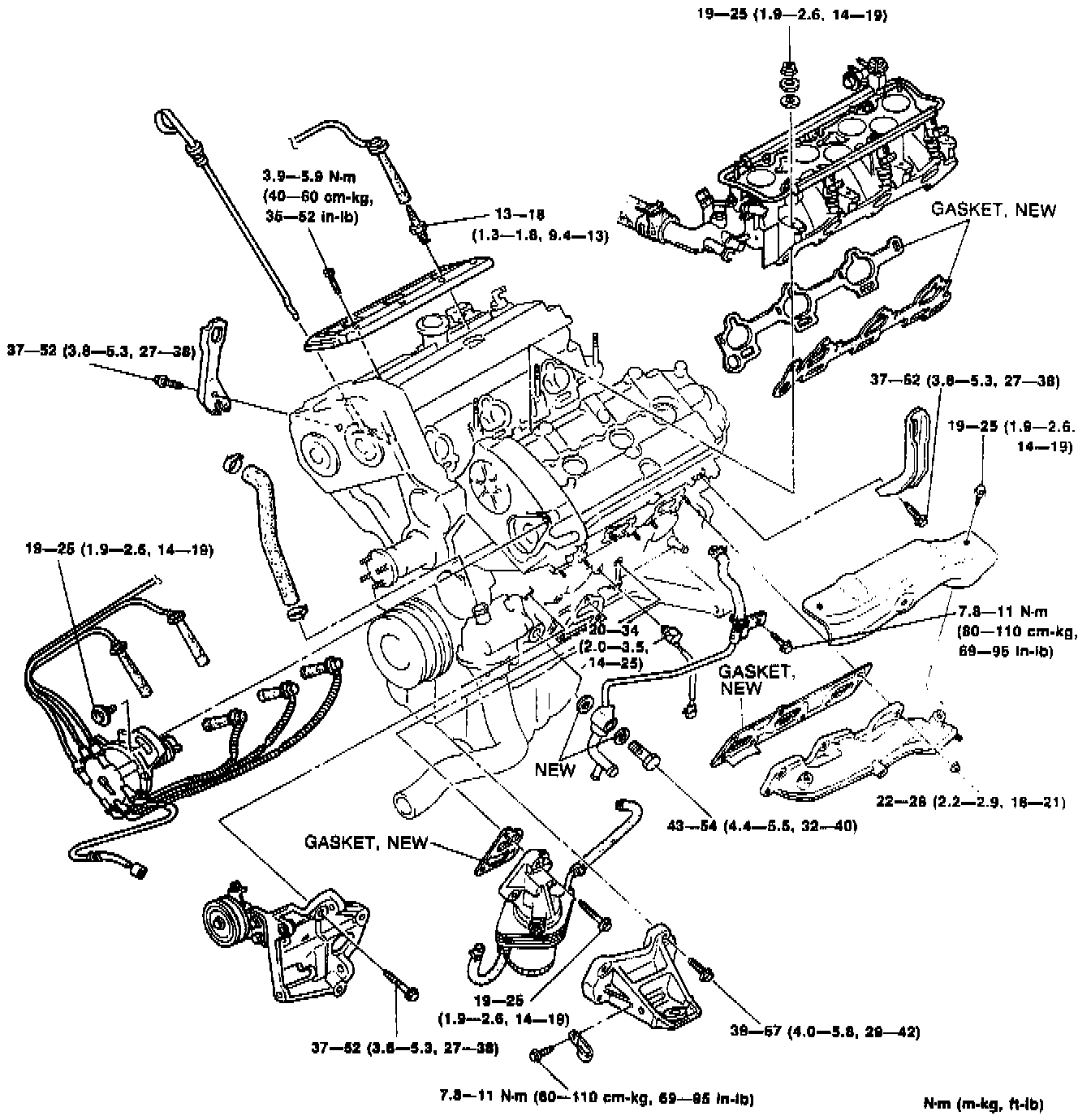

Intake & Exhaust Manifolds:

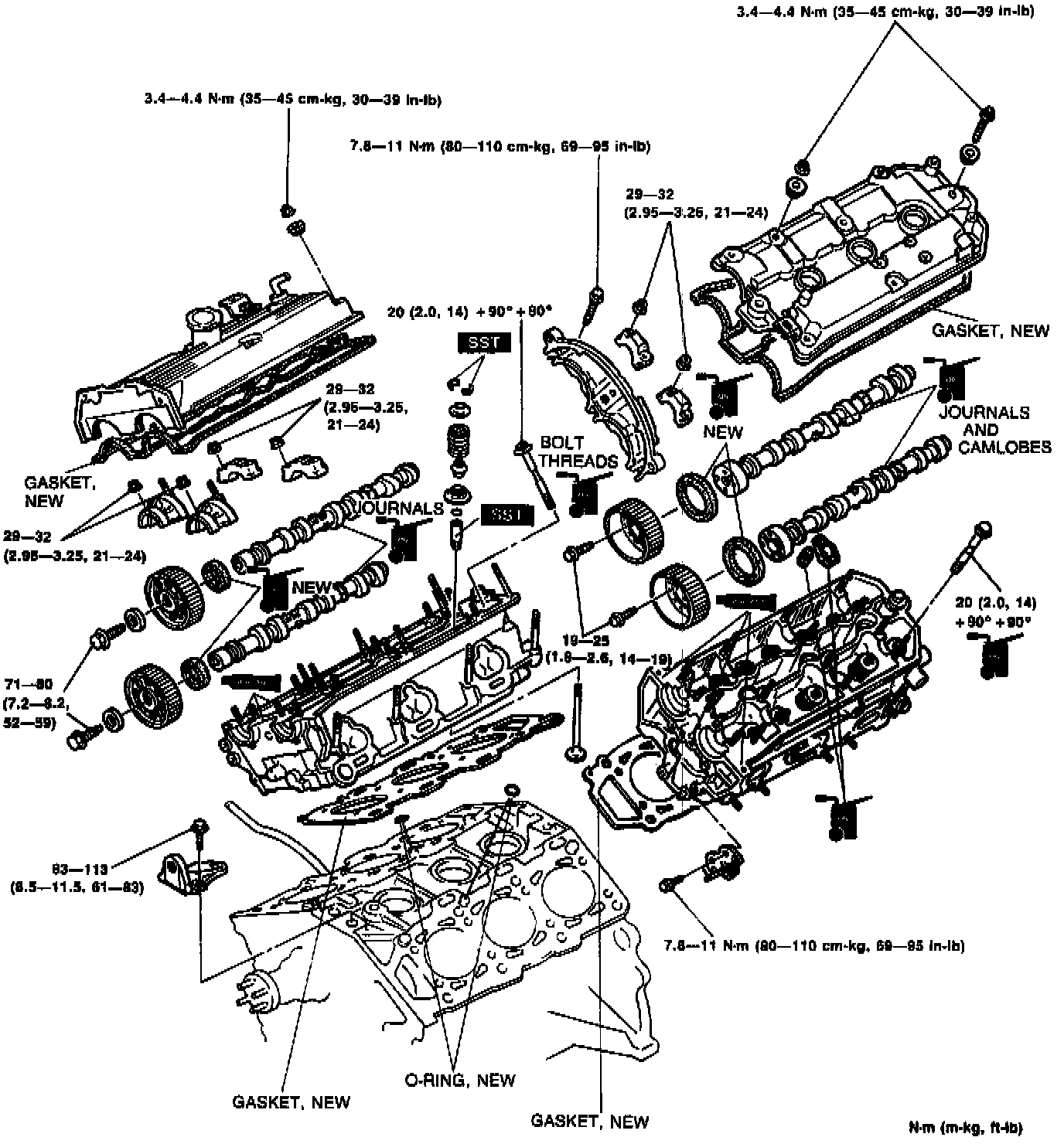

Upper Engine:

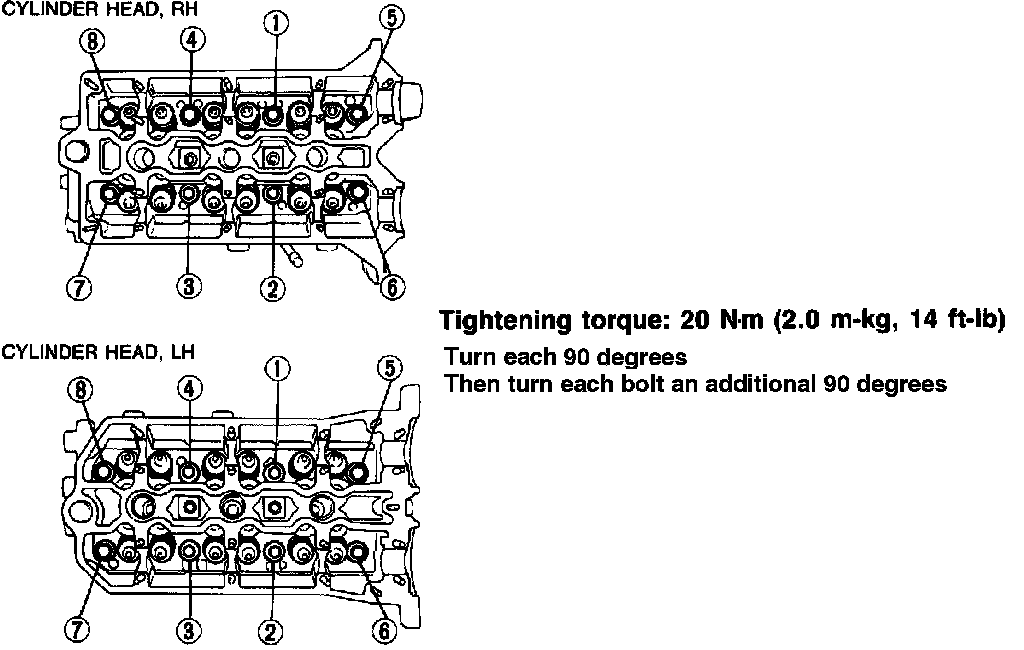

Head Torque/Sequence:

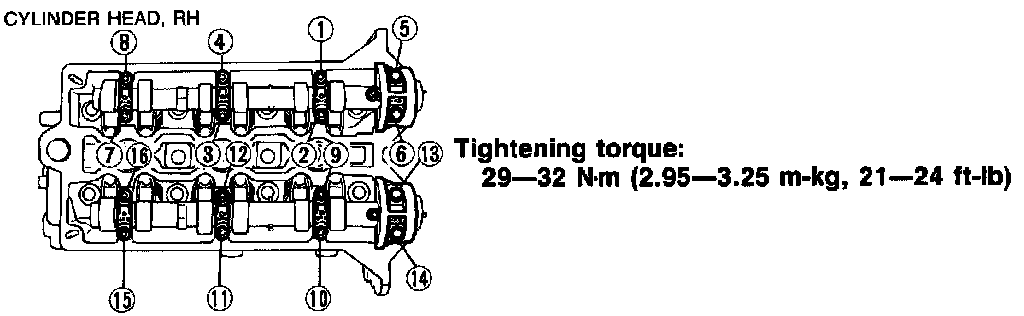

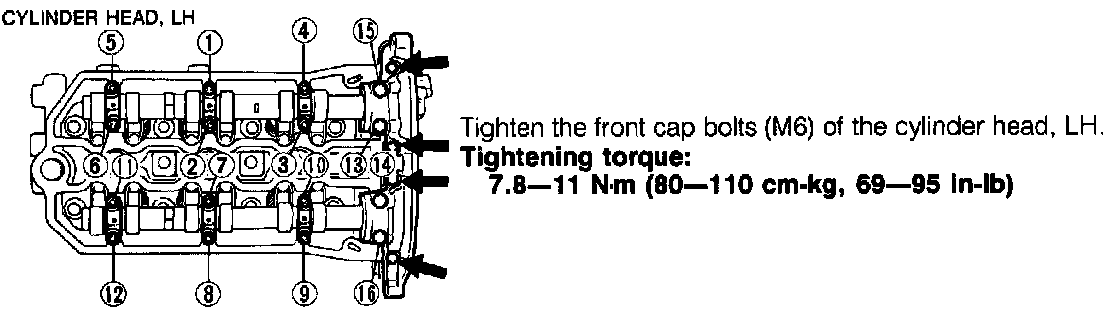

Camshaft Cap Torque/Sequence:











Timing Components:






Timing Cover:






Lower Engine:
