Home >> Mazda >> 1990 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

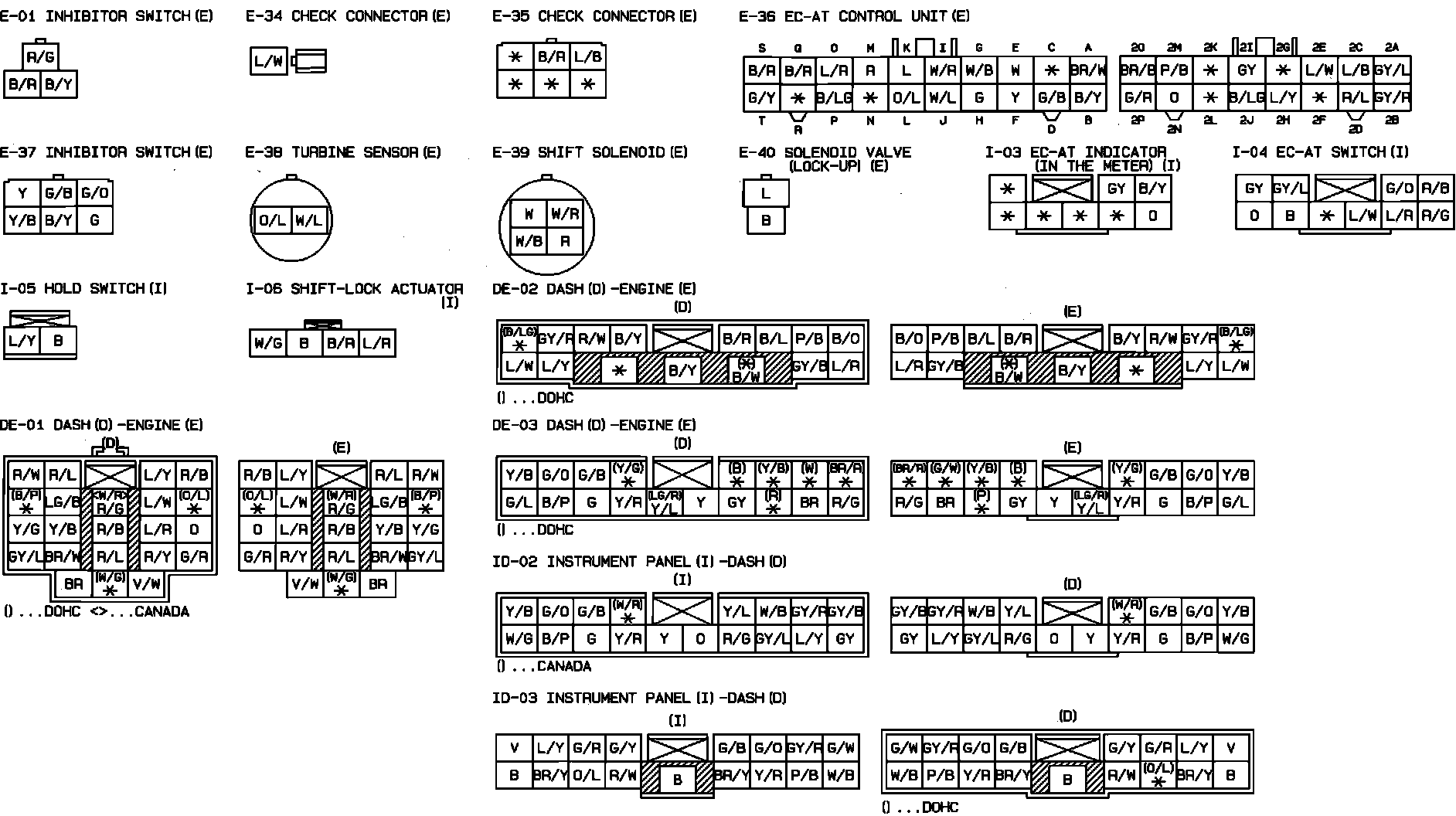

Automatic Transmission Control Unit & Shift Lock System. DOHC. Connector Identification:
