Engine Control Module: Testing and Inspection

How to use the Engine Signal Monitor (SST Mazda Part# 49 9200 162).

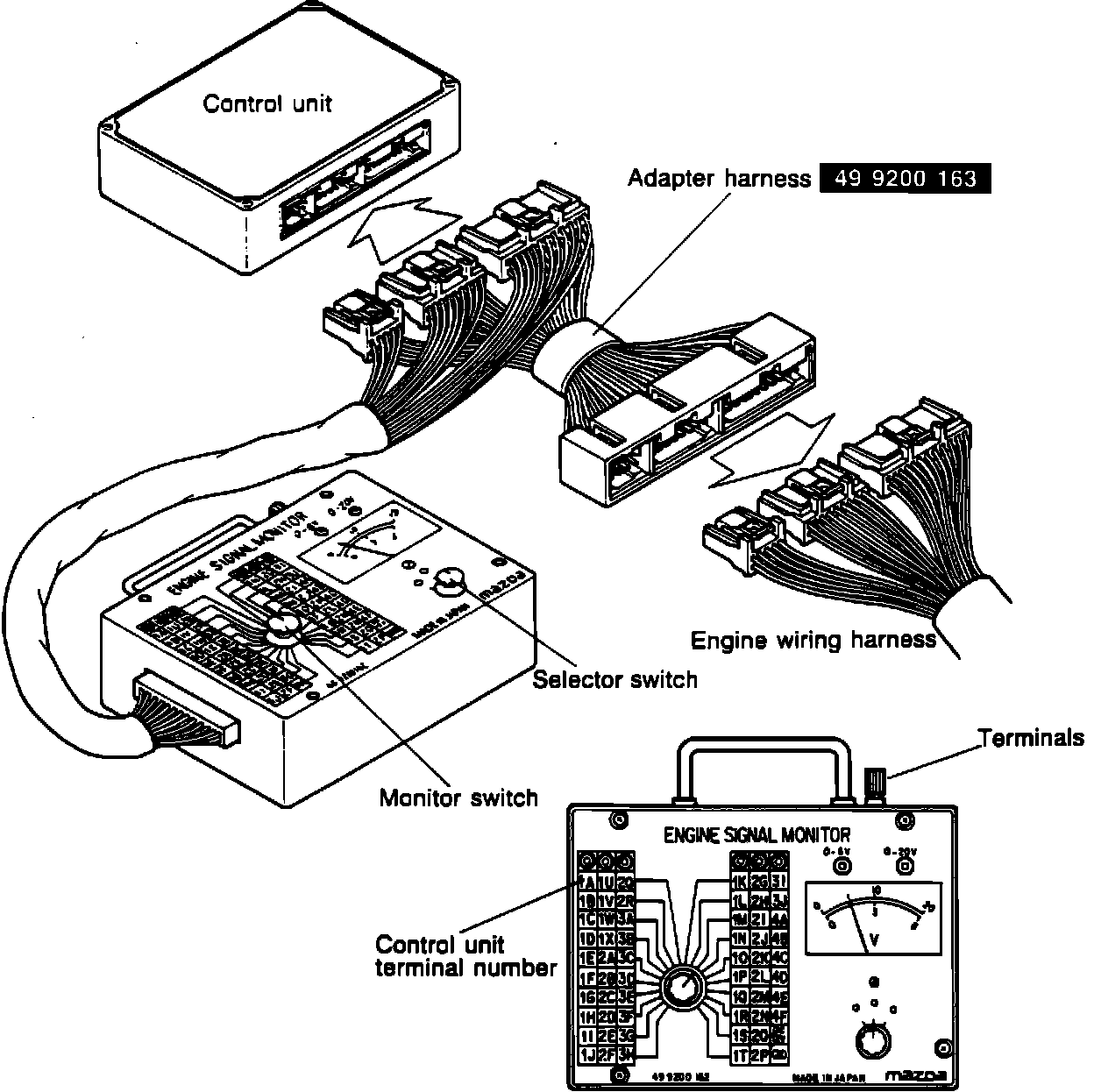

Engine Signal Monitor And Adapter:





1. Connect the engine signal monitor between the control unit and the engine harness using the adapter (SST Mazda Part# 49 9200 163).
2. Turn the selector switch and monitor switch to select the terminal number.
3. Check the terminal voltage.

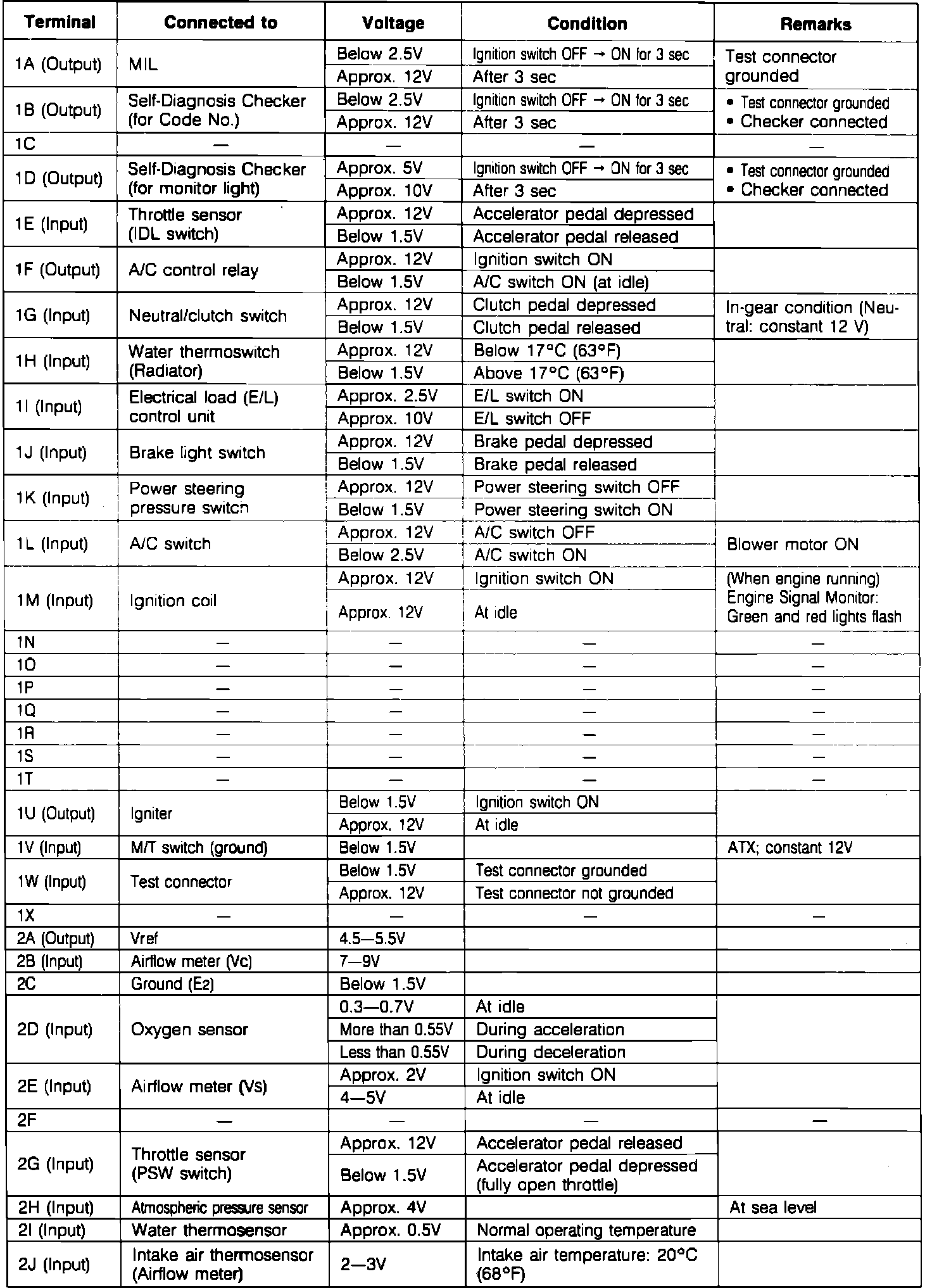

Engine Control Unit Terminal Identification And Voltages:

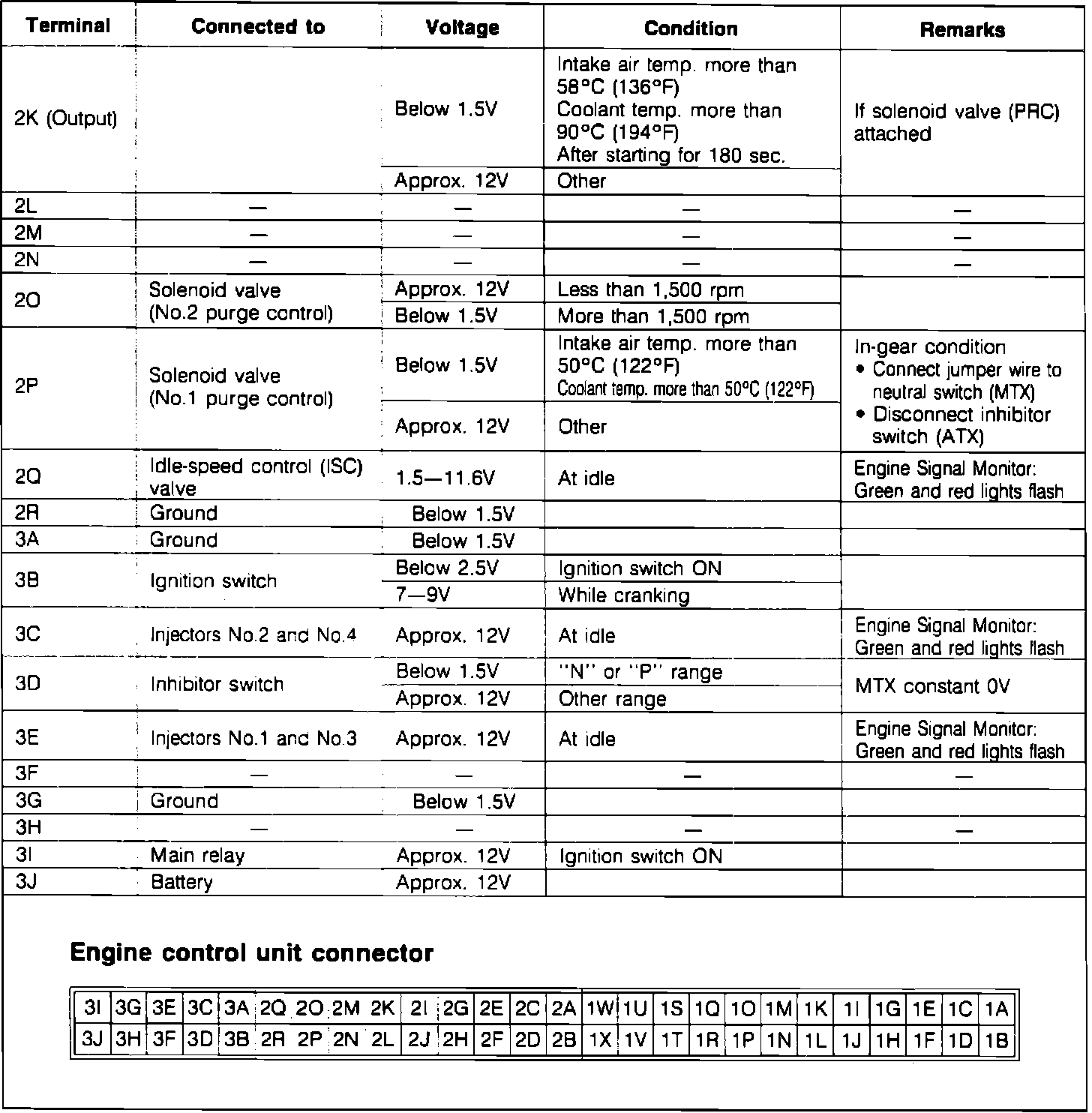

Engine Control Unit Terminal Identification And Voltages:
