Home >> Mazda >> 1989 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

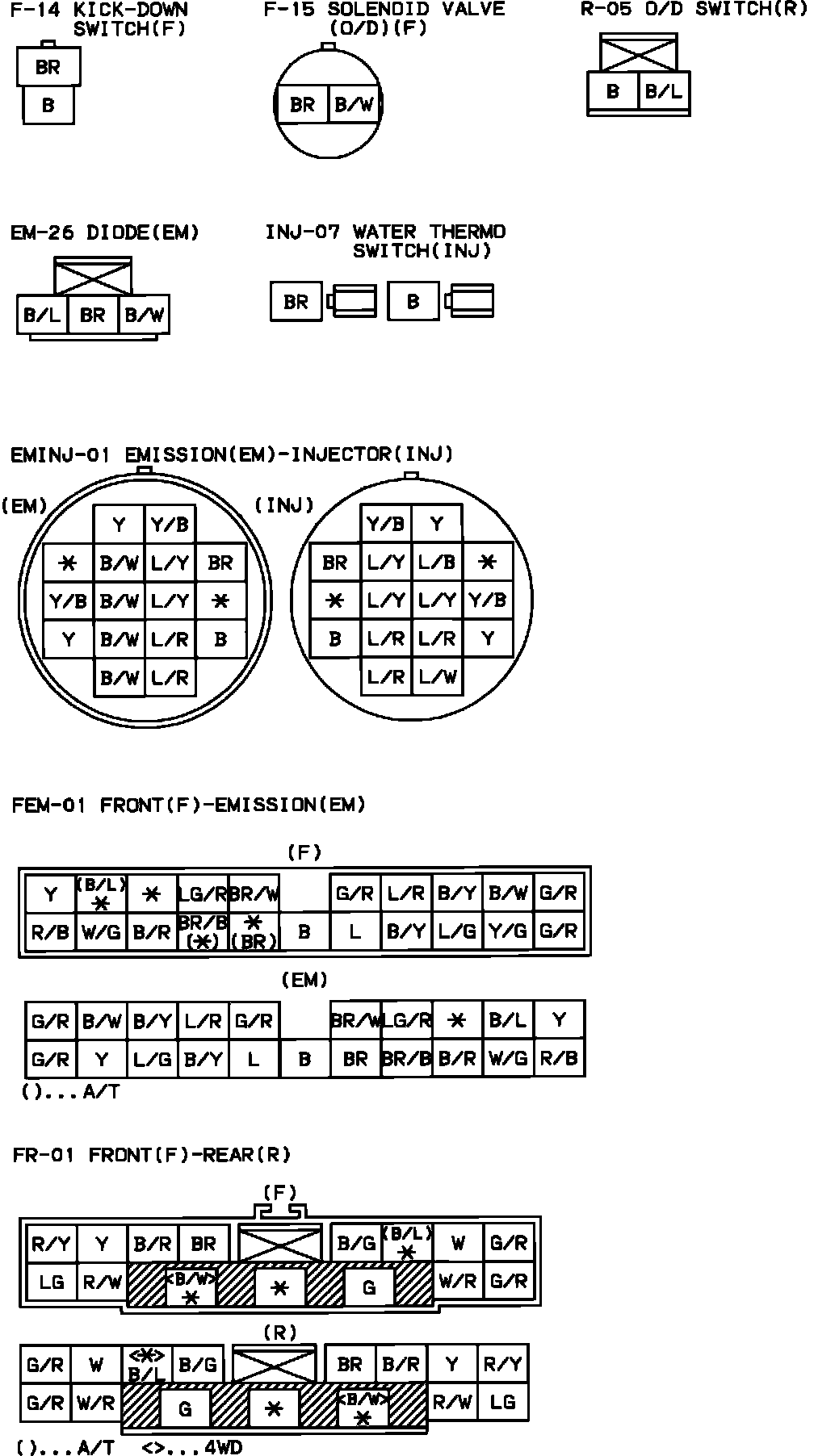

Connector Identification:
