Home >> Mazda >> 1987 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module

Engine Control Module

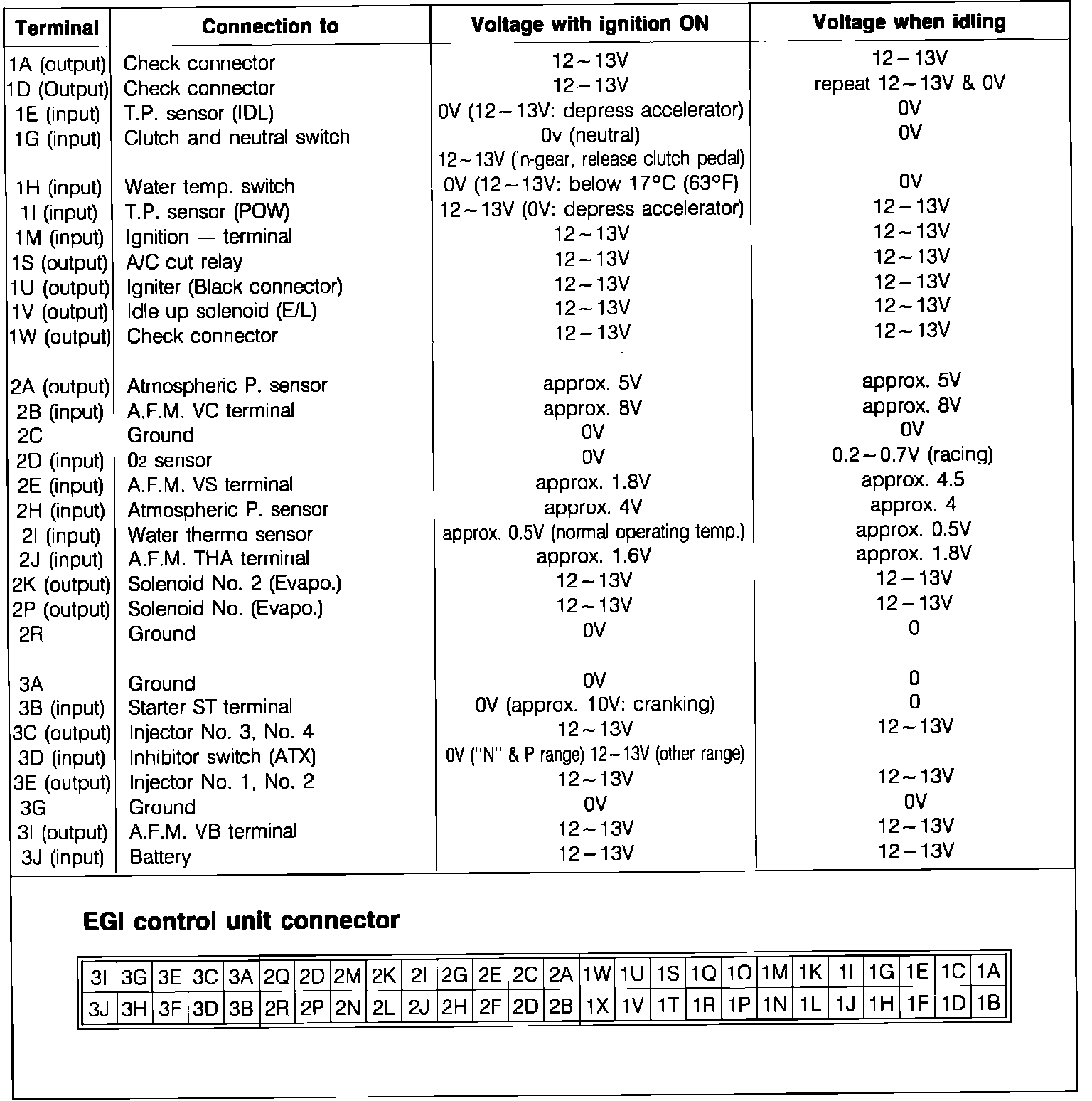

Fig. 62 Control unit voltage specifications chart.:
