Home >> Mazda >> 1987 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Specifications

Ignition System: Specifications

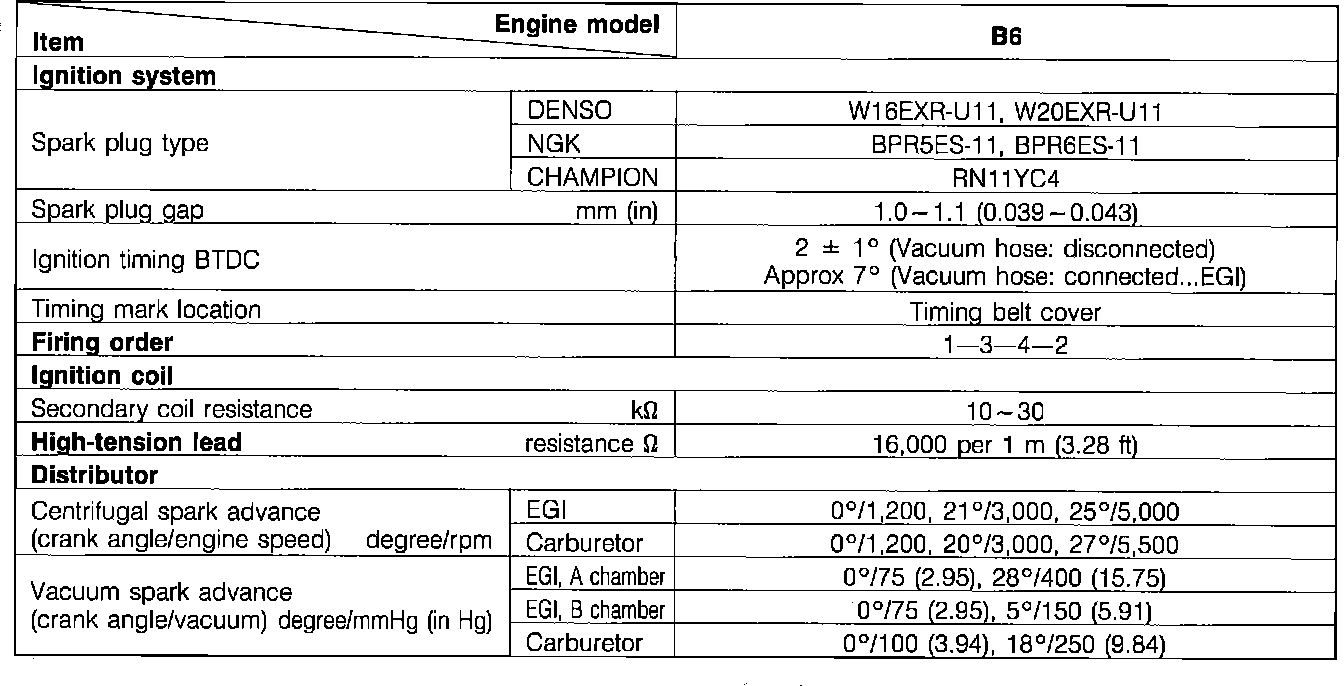

Fig. 11 Ignition system specifications:
