Engine Control Module: Specifications

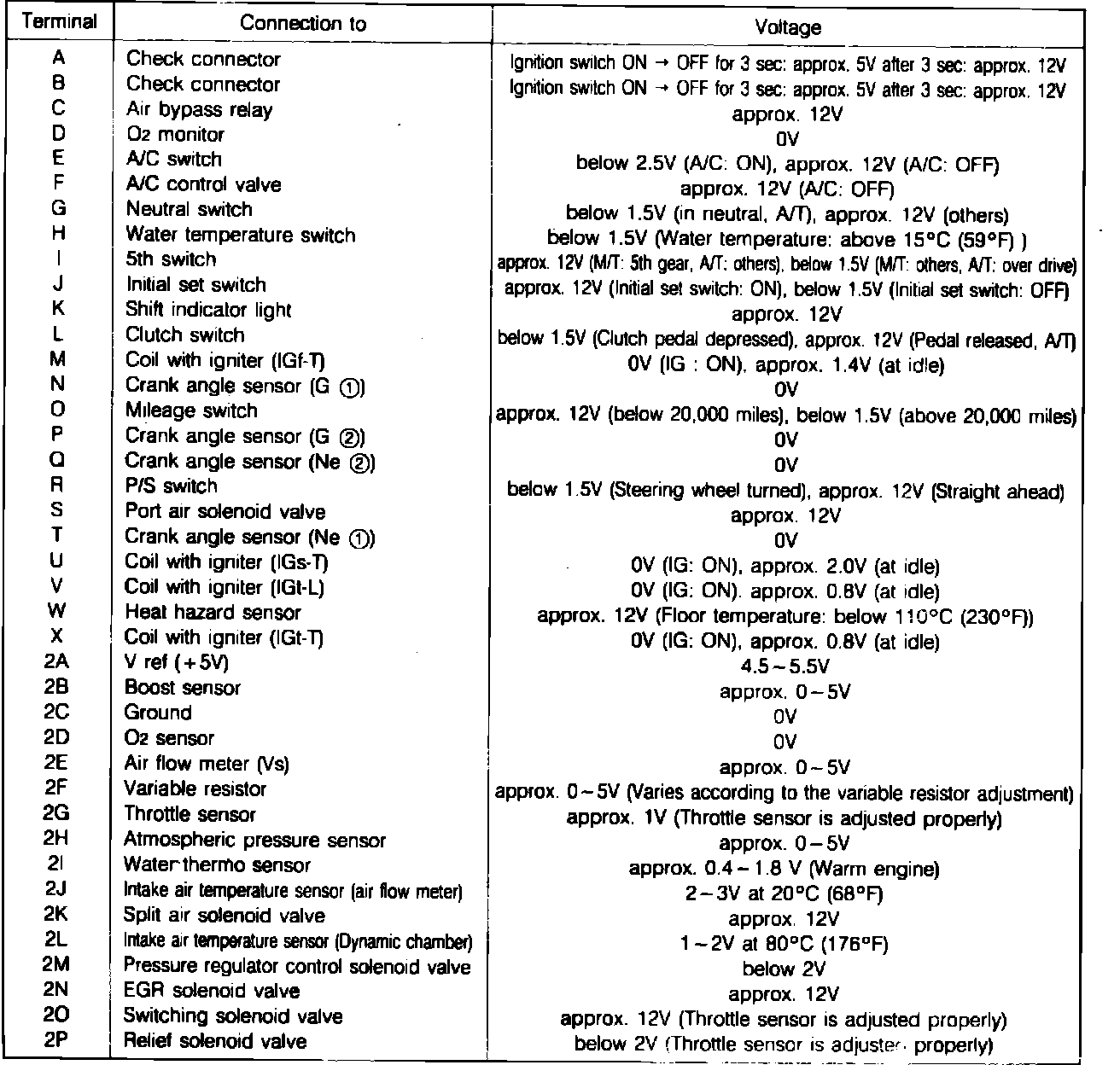

Fig. 59a Control unit voltage specifications chart:

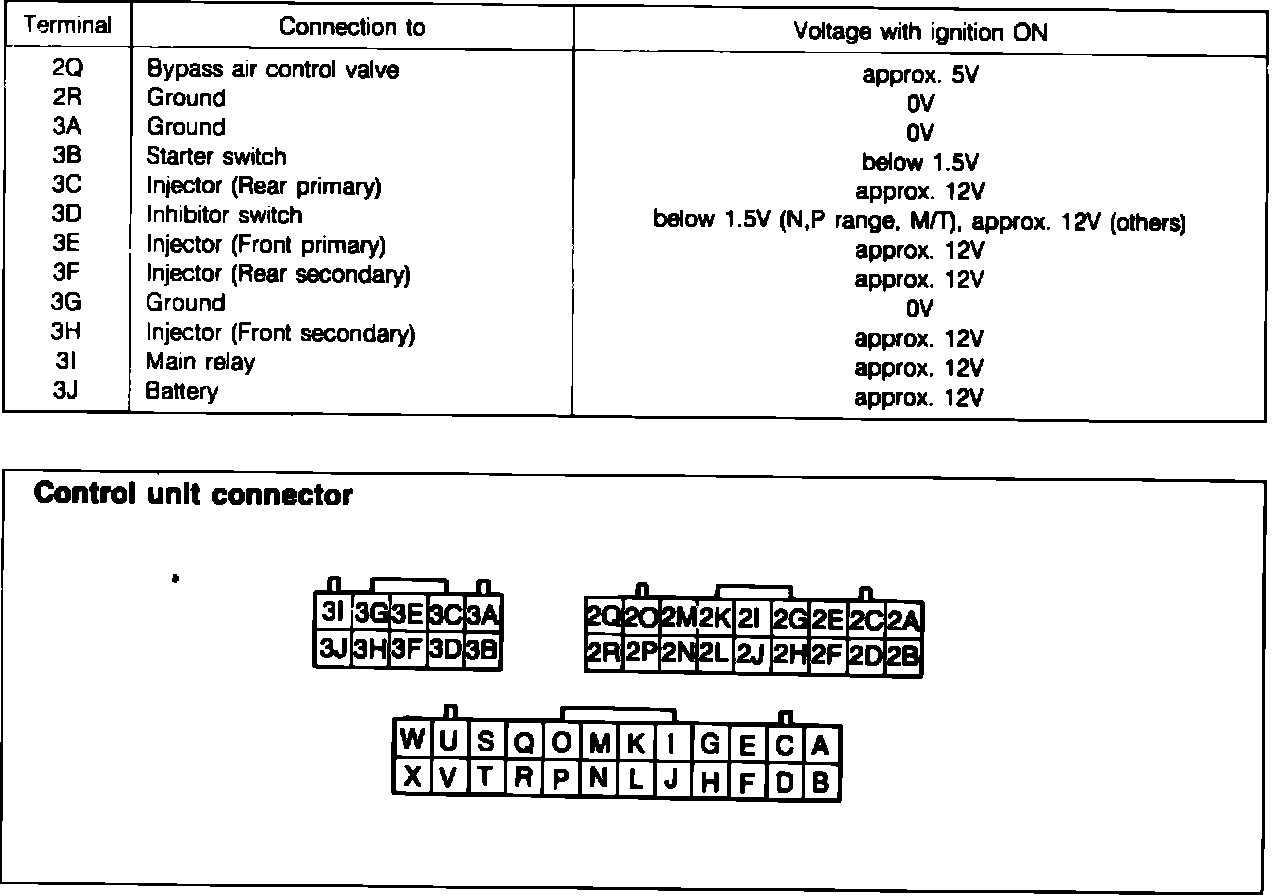

Fig. 59b Control unit voltage specifications chart:
