lemon-mirror
:
Home
>>
Mazda
>>
1986
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Locations
Air Flow Meter/Sensor: Locations

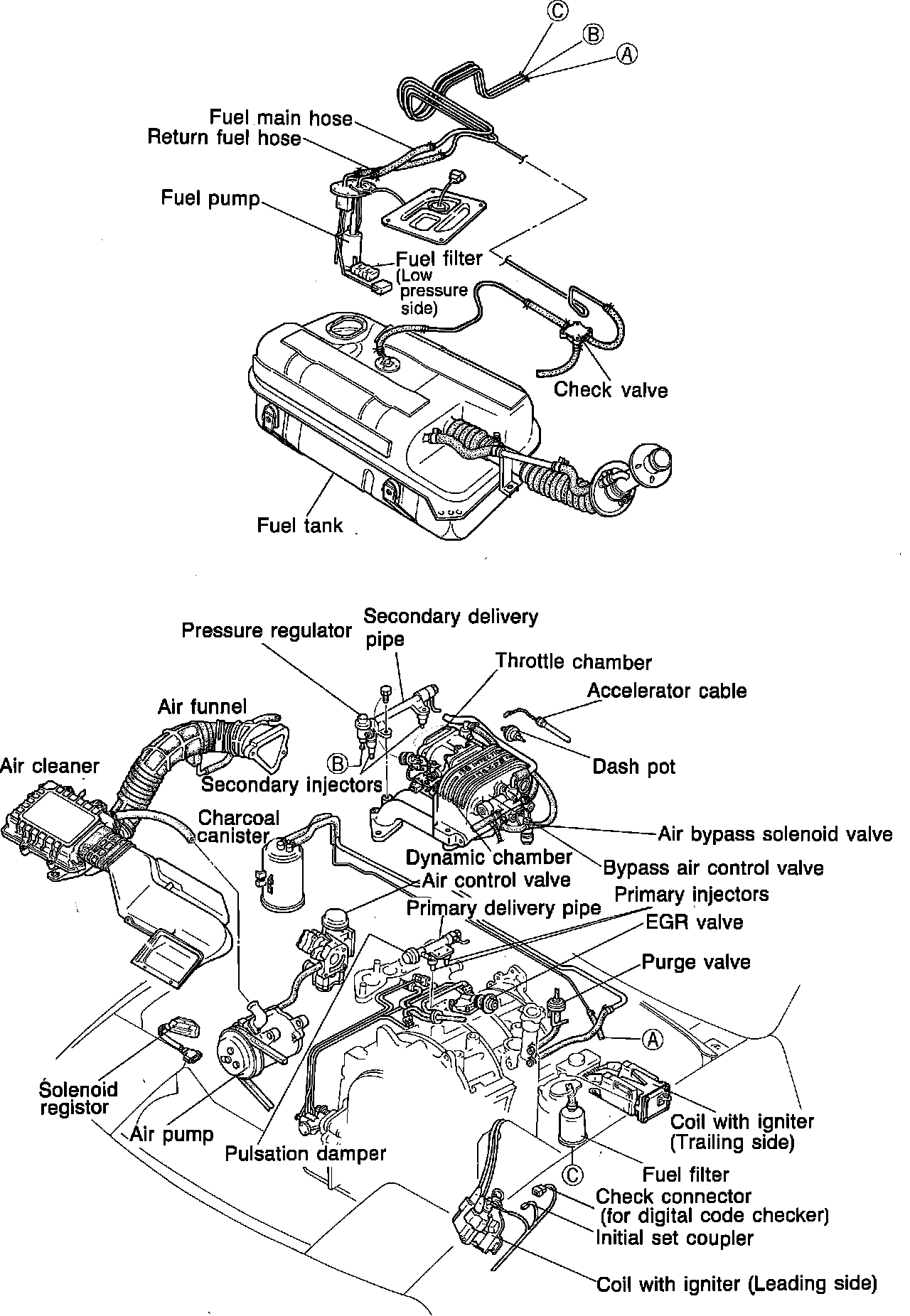

Fig. 17 EGI System:
Fig. 17 EGI System:
