Home >> Mazda >> 1986 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module

Engine Control Module

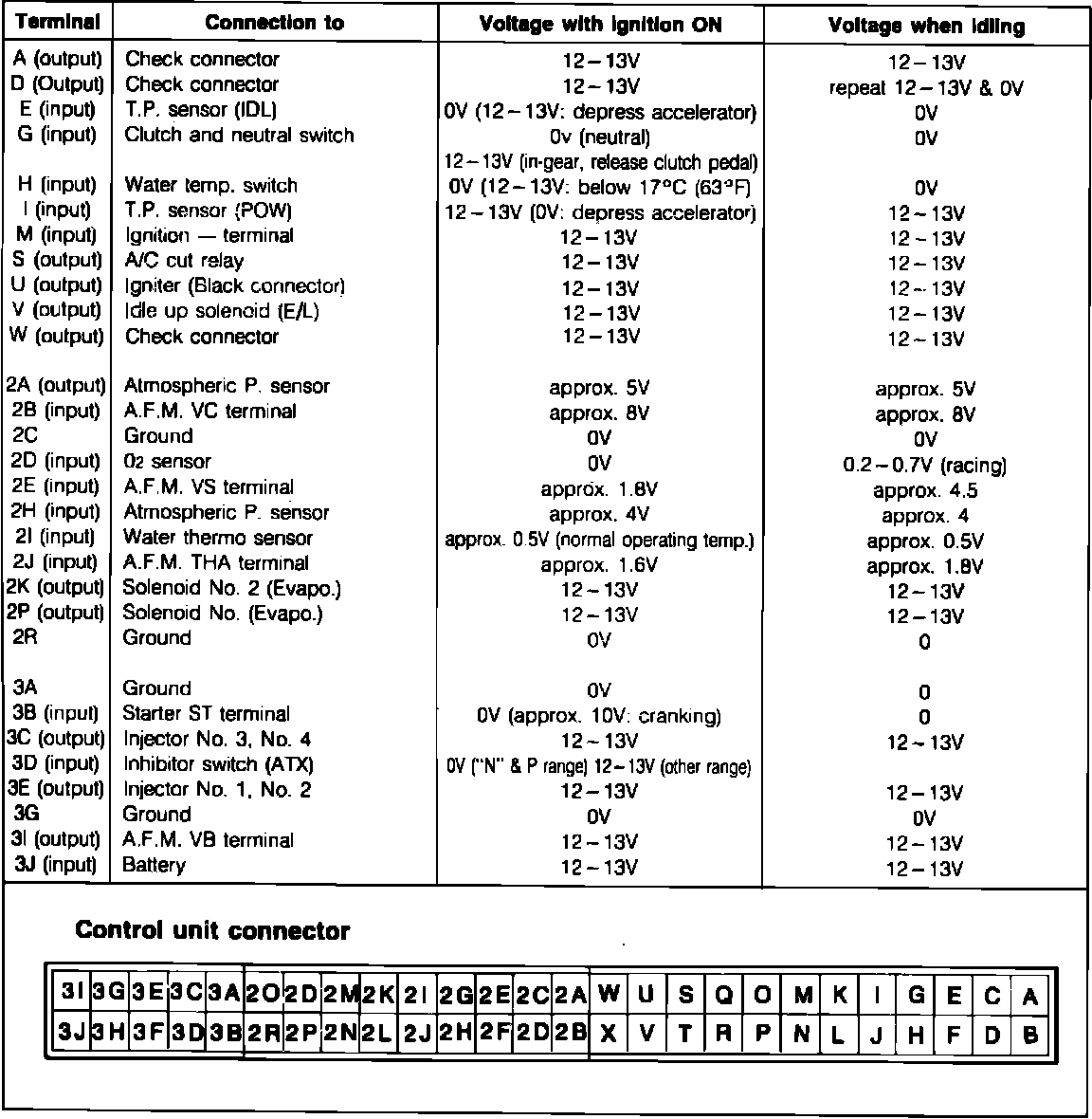

Fig. 56 Control unit voltage specifications chart.:
