Ignition Control Module: Testing and Inspection

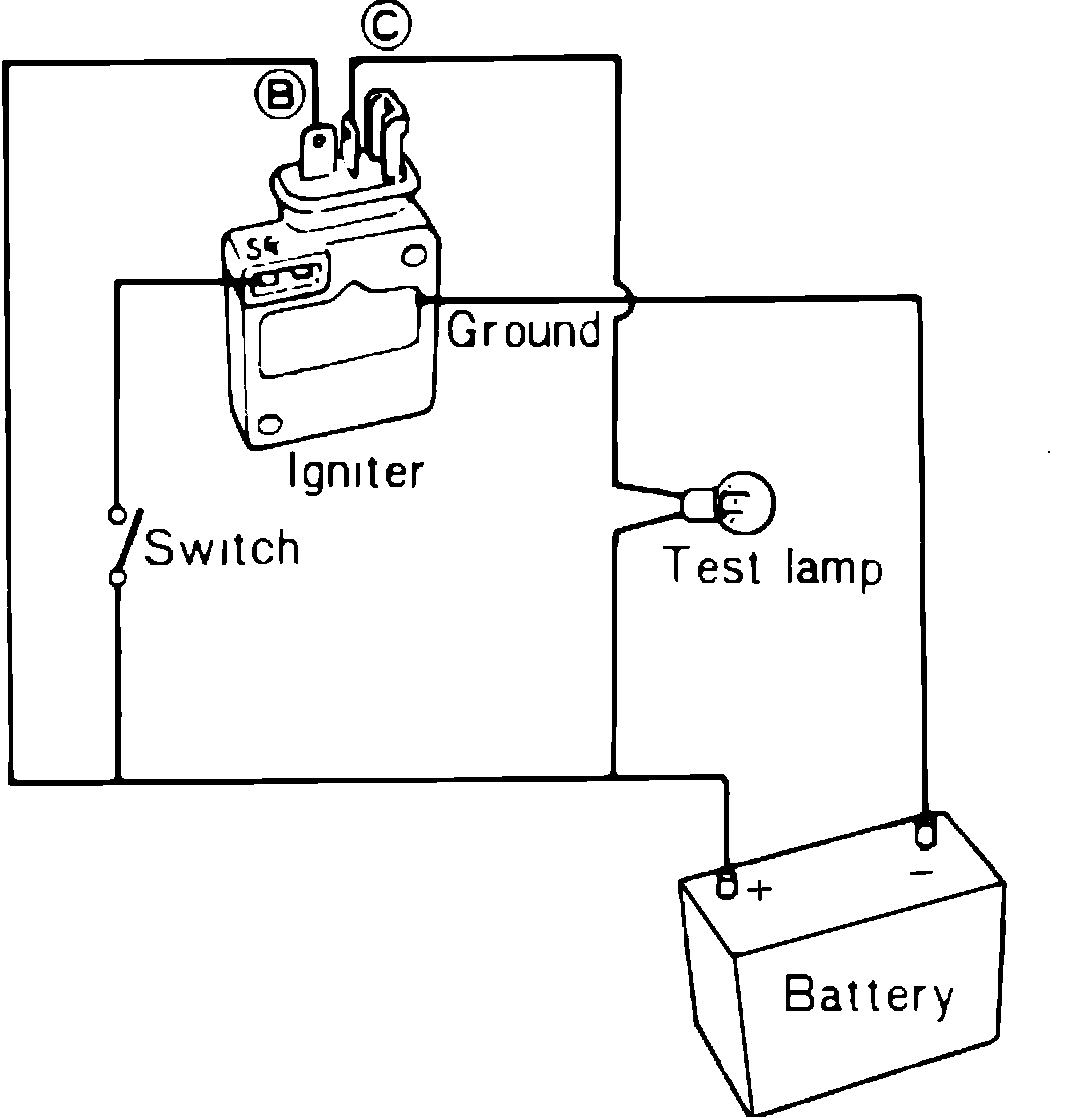

Fig. 12 Testing igniter.:

This test should be performed on each trailing and leading igniter.
1. Remove igniter.
2. Make a circuit with suitable wiring and test lamp, Fig. 12. Use 12 volts and less than 10 watt bulb.
3. Quickly operate switch on and off and ensure test lamp is flashing.
