Home >> Mazda >> 1985 >> GLC L4-1490cc 1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

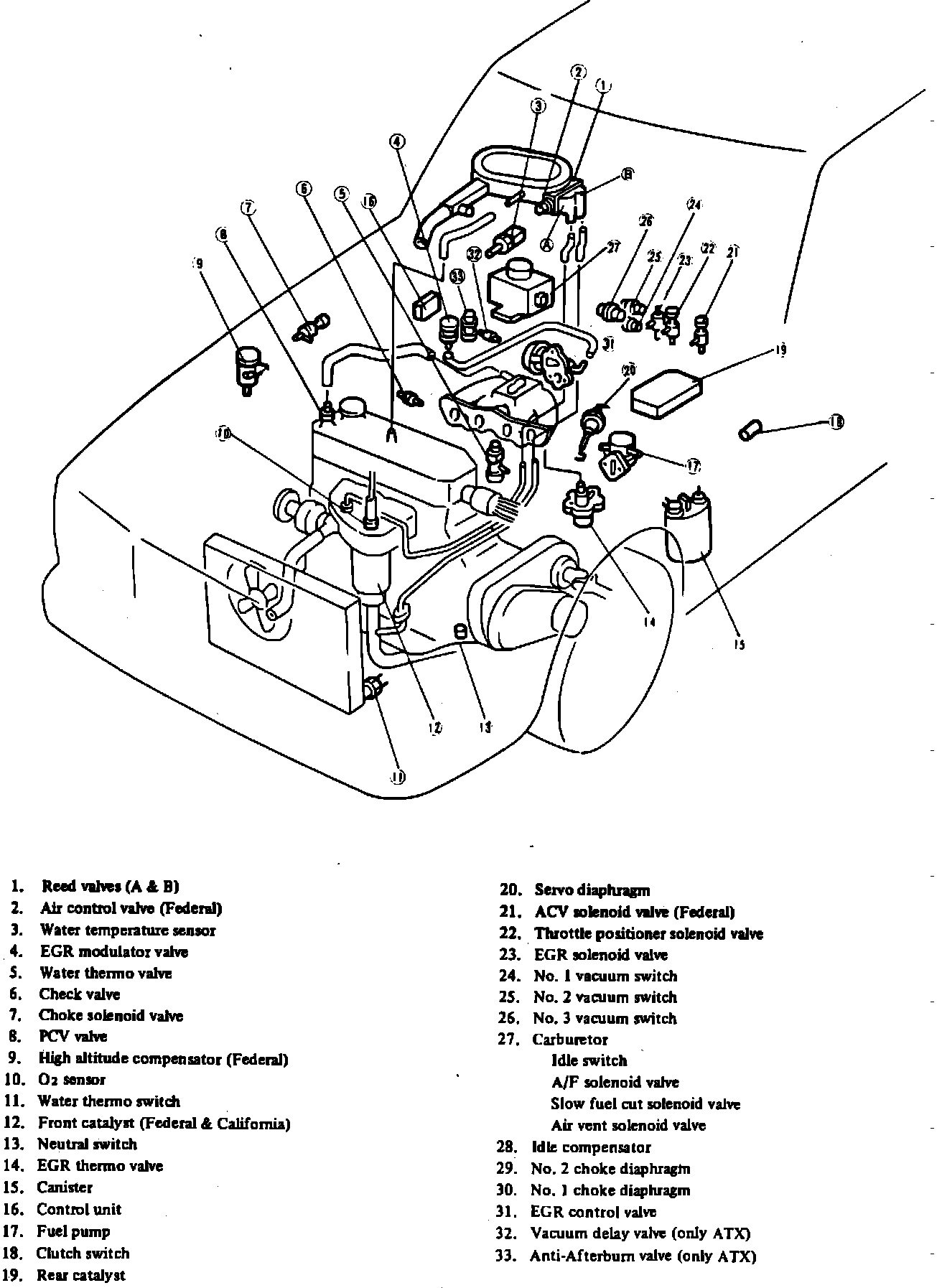

Engine Compartment Reference Diagram.:




Rear RH Side Of Engine Compartment

Applicable to: 1984-85 Models
