Home >> Mazda >> 1985 >> 626 L4-2000 1998cc >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Specifications

Throttle Position Sensor: Specifications

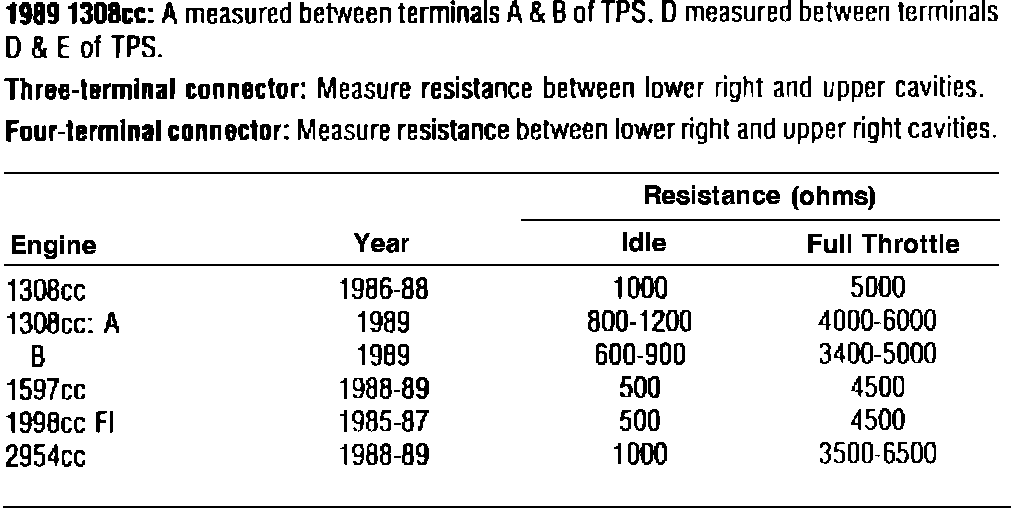

Fig. 3 Throttle Position Sensors:
