System Specifications

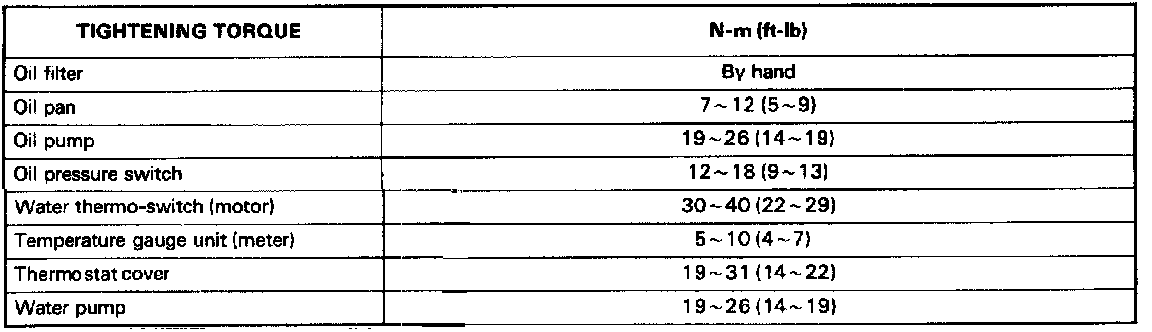

Torque Chart:

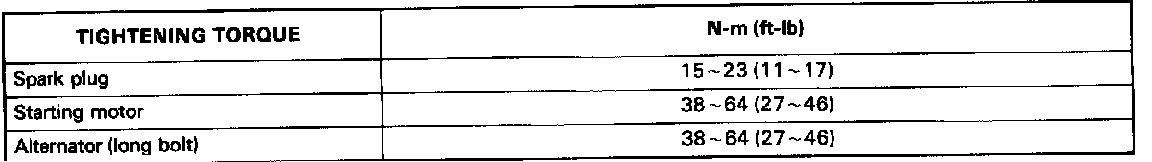

Torque Chart:

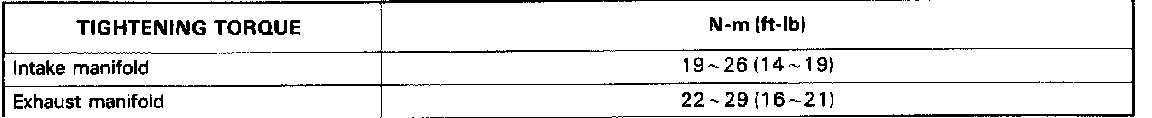

Torque Chart:

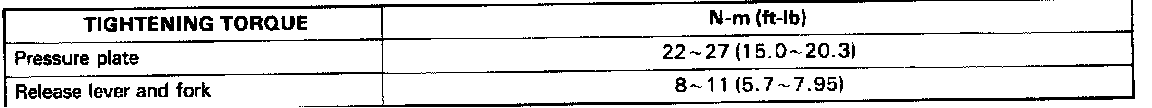

Torque Chart:

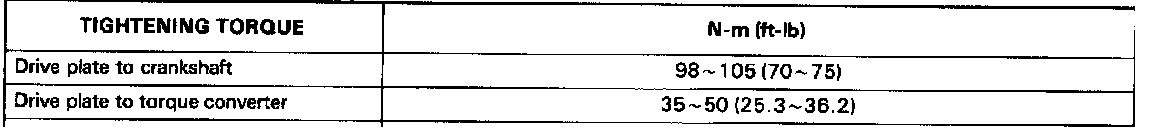

Torque Chart:

Torque Chart:

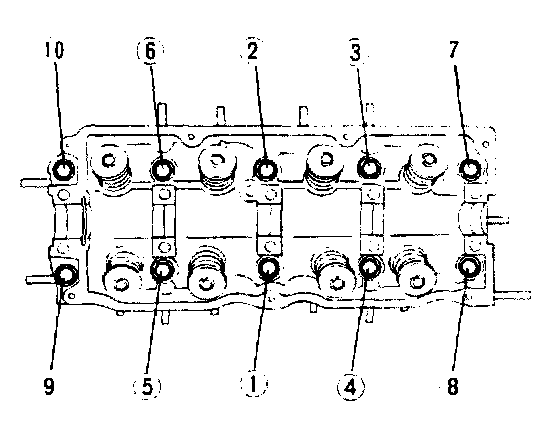

Cylinder Head Installation:

Tighten cylinder head bolts in sequence in several passes to 69-80 ft.lbs (warm) or 59-64 ft.lbs(cold).
