Home >> Mazda >> 1982 >> GLC L4-1490cc 1.5L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> System Specifications

System Specifications

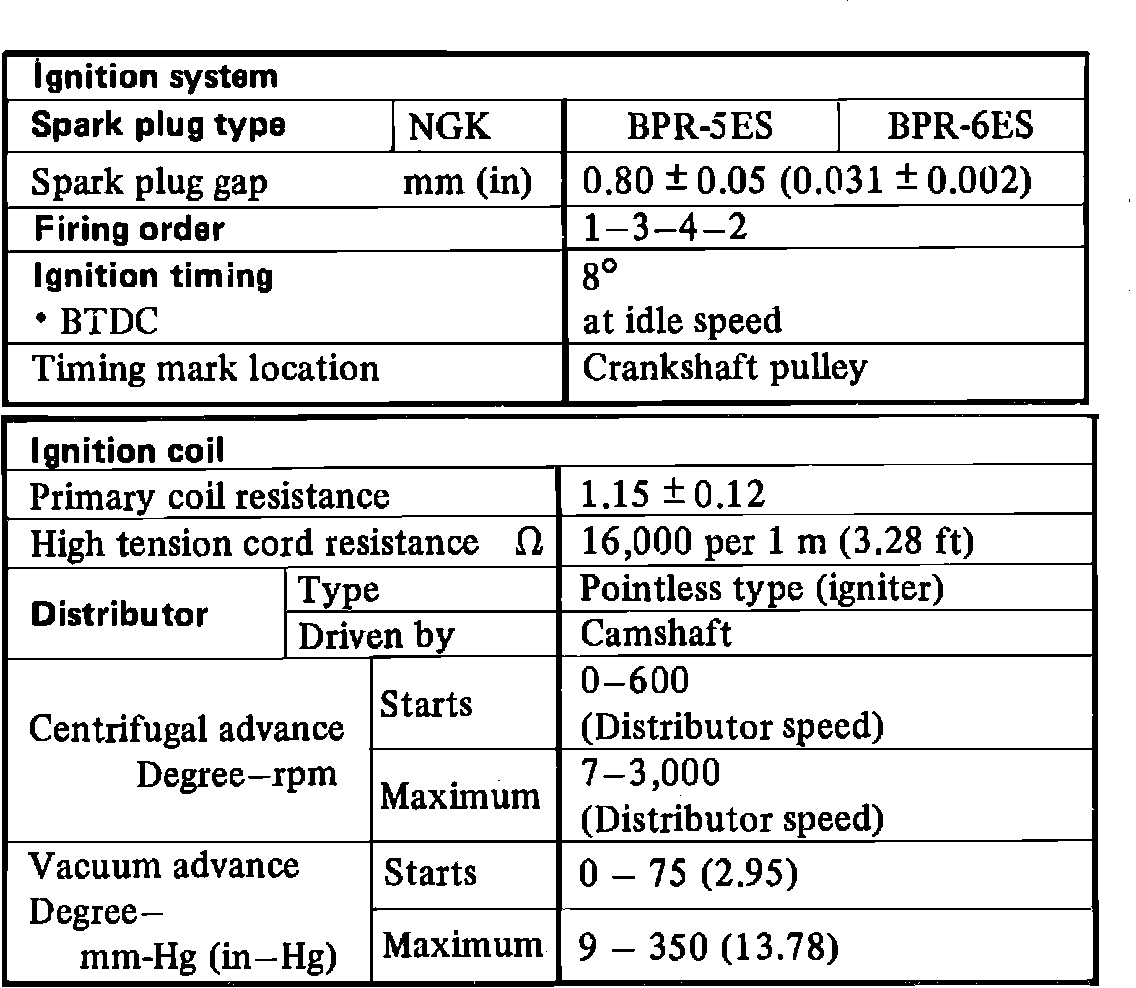

Fig. 6 Ignition system specifications:

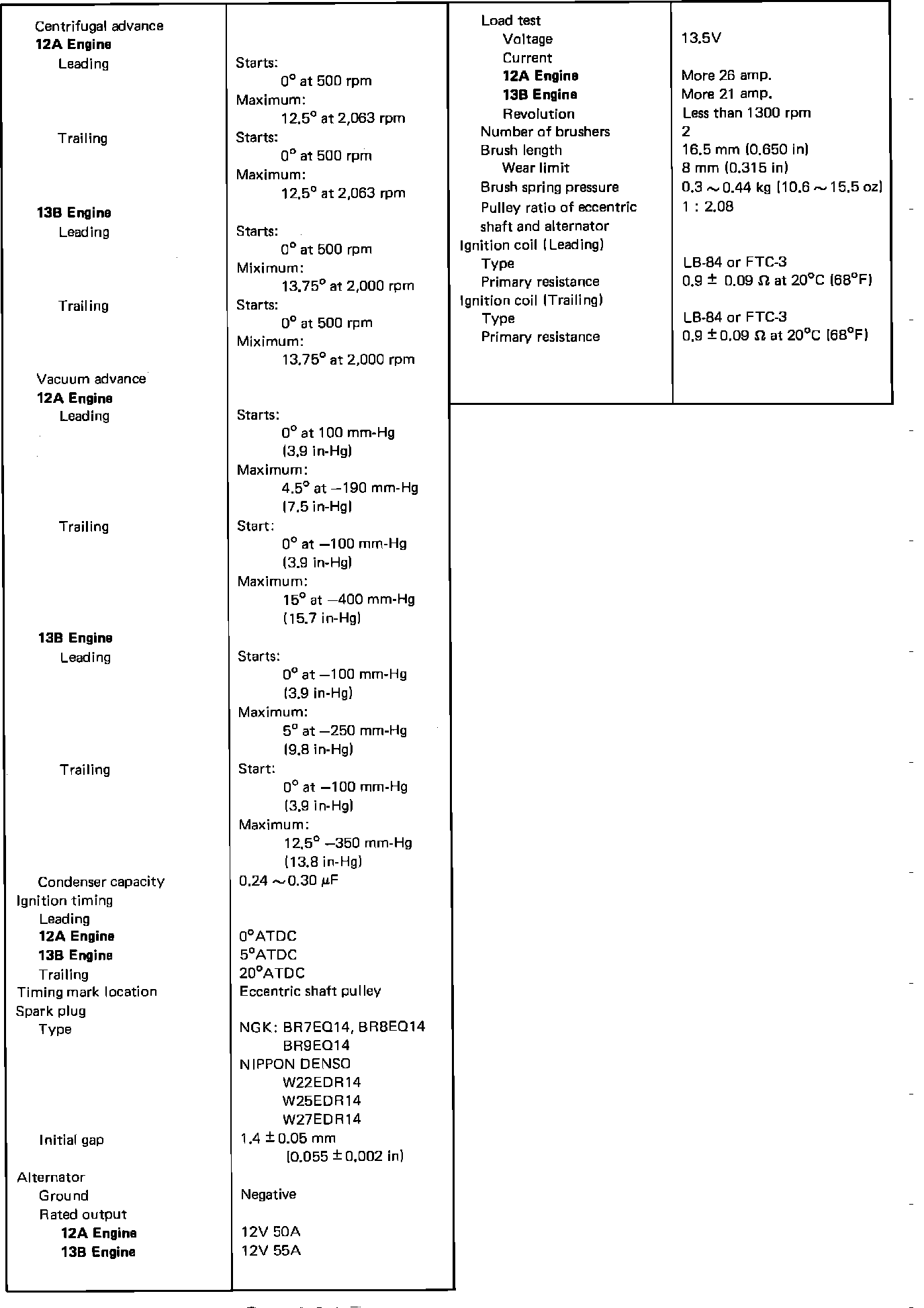

Fig. 5 Ignition system specifications:
