Home >> Mazda >> 1982 >> GLC L4-1490cc 1.5L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> Ignition Timing

Ignition Timing

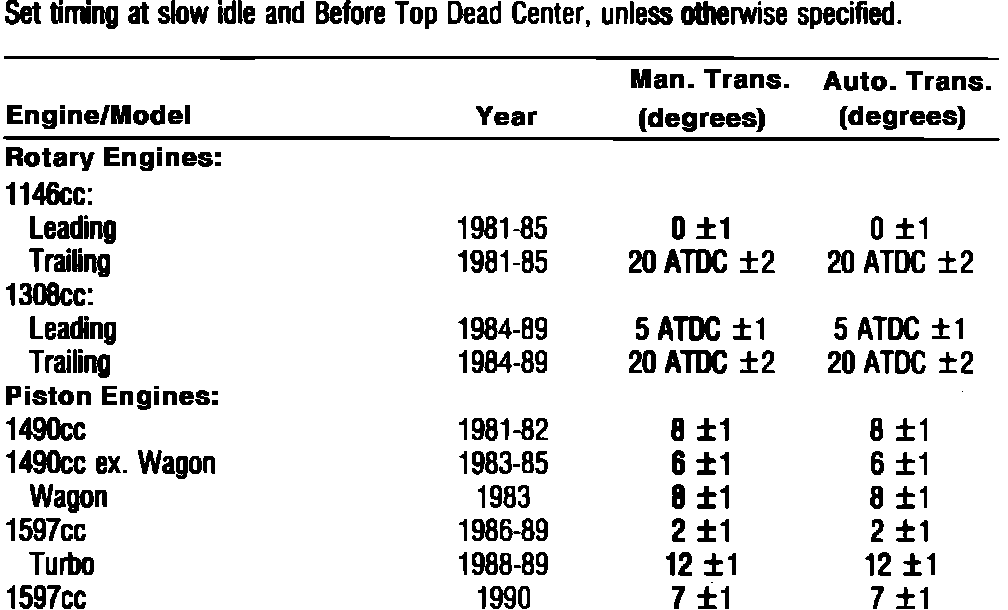

Fig. 5 Timing Specifications:
