Carburetor
Carburetor

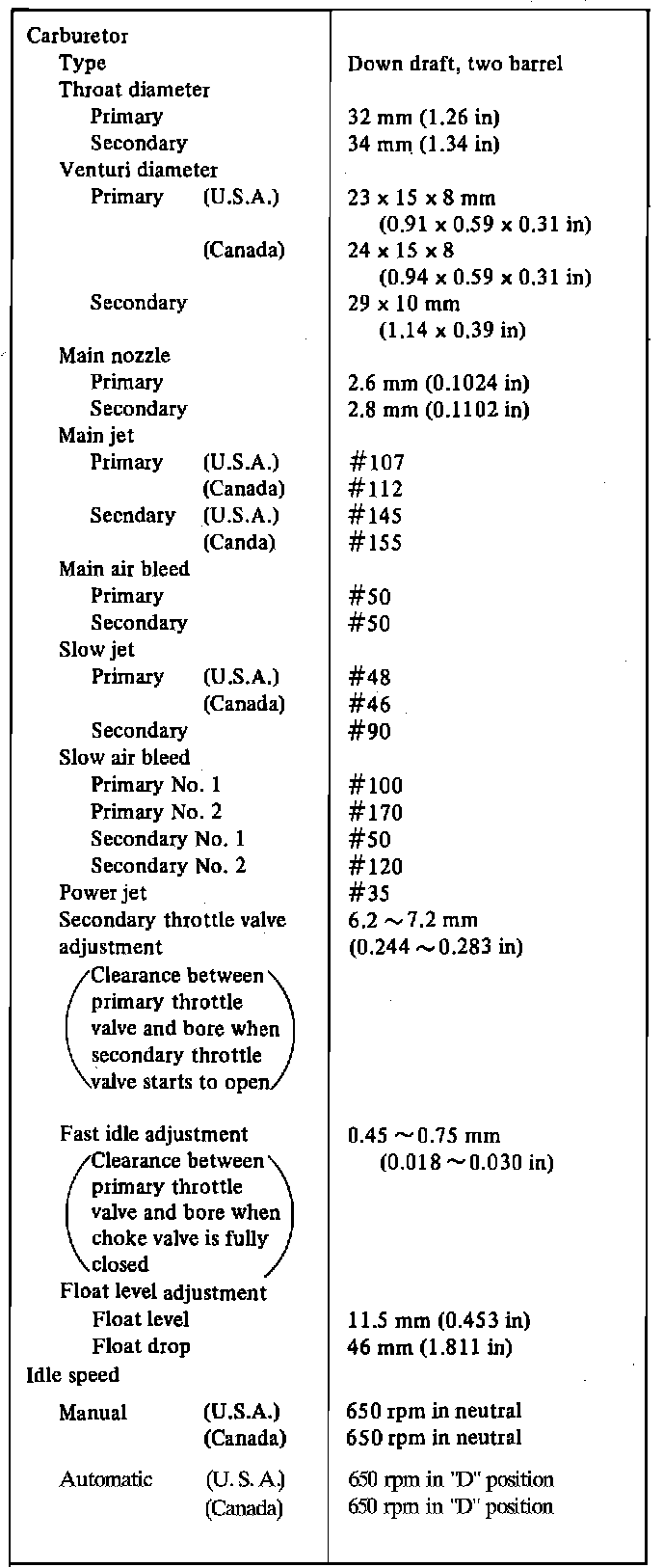

Fig. 1 Carburetor Specifications:
Fig. 5 Idle Speed W/O Computer Control - Specifications:
