Home >> Mazda >> 1982 >> 626 L4-2000 1970cc >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition System >> Ignition Timing

Ignition Timing

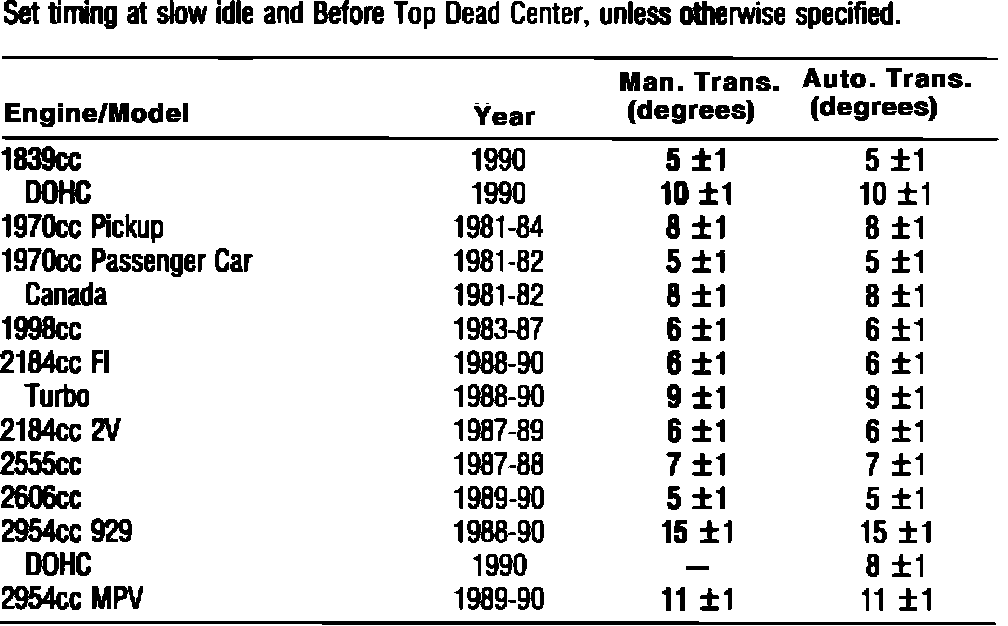

Fig. 6 Timing Specifications:
