Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module - MKZ

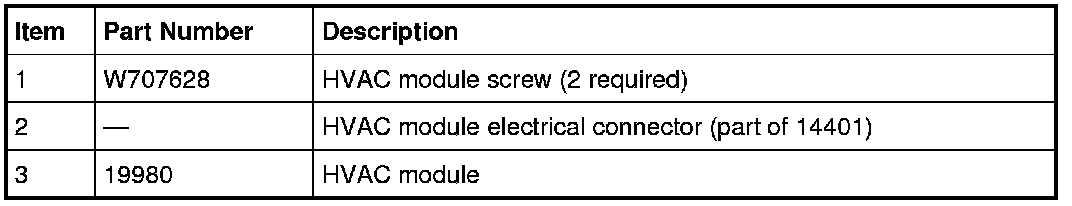

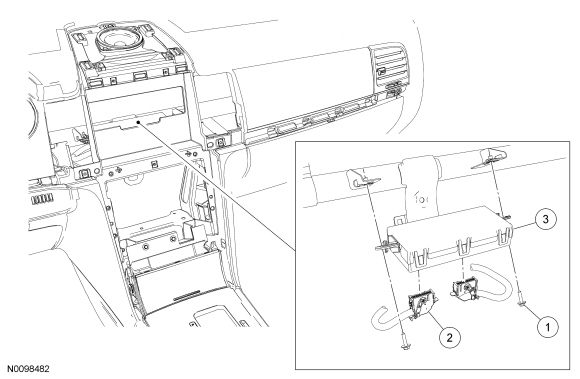

Removal and Installation

1. Remove the Front Display Interface Module (FDIM).

2. Remove the 2 HVAC module screws.

3. Disconnect the 2 HVAC module electrical connectors.

4. Remove the HVAC module.

5. To install, reverse the removal procedure.
