Connecting Rod, Engine

Rod Bearing Cap

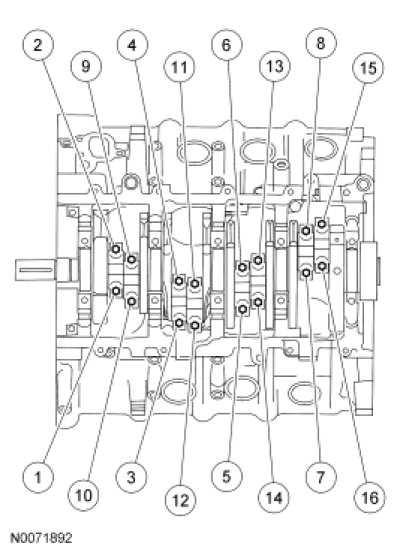

Tighten the 16 connecting rod bearing cap bolts in 3 stages, in the sequence shown.
Stage 1: Tighten to 23 Nm (17 lb-ft).
Stage 2: Tighten to 43 Nm (32 lb-ft).
Stage 3: Rotate an additional 90-120 degrees.
