Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

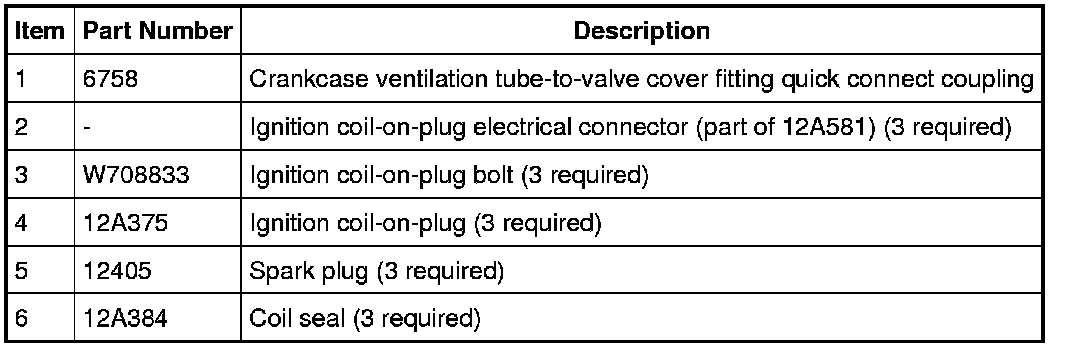

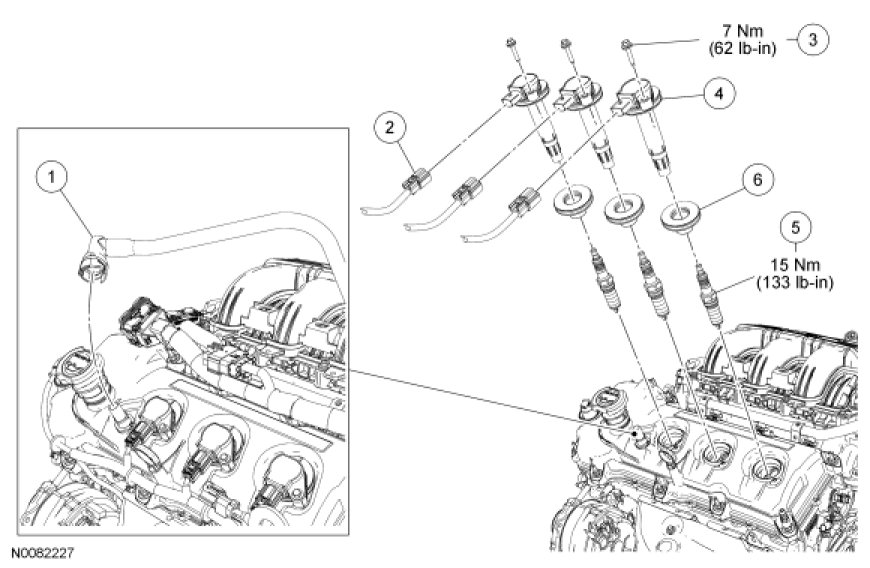

LH Side

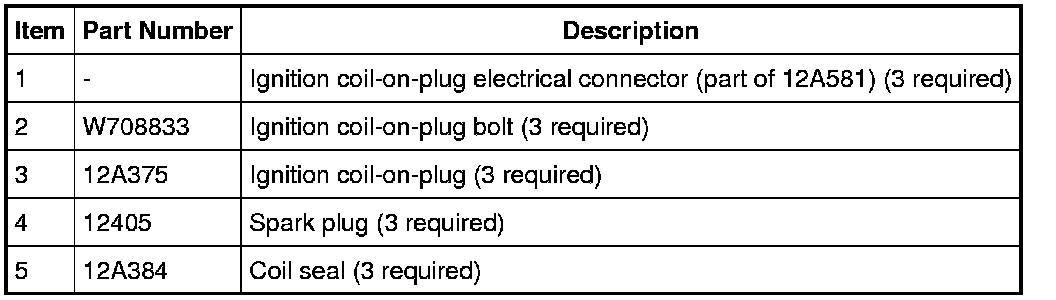

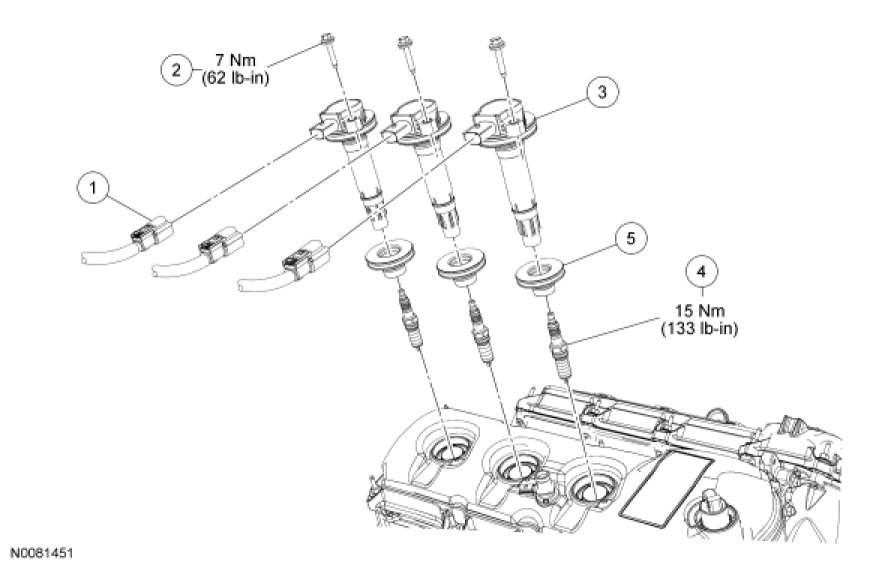

RH Side
