Home >> Lincoln >> 2011 >> MKT FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Back

Seat Back

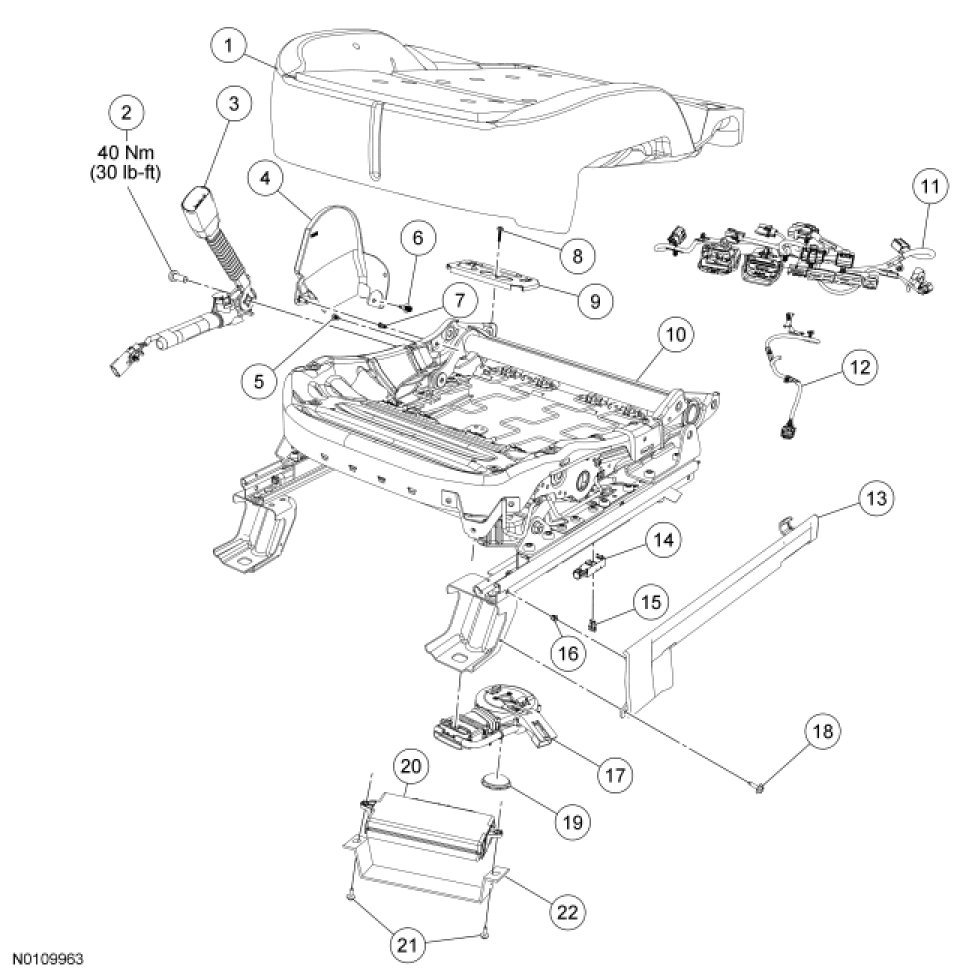

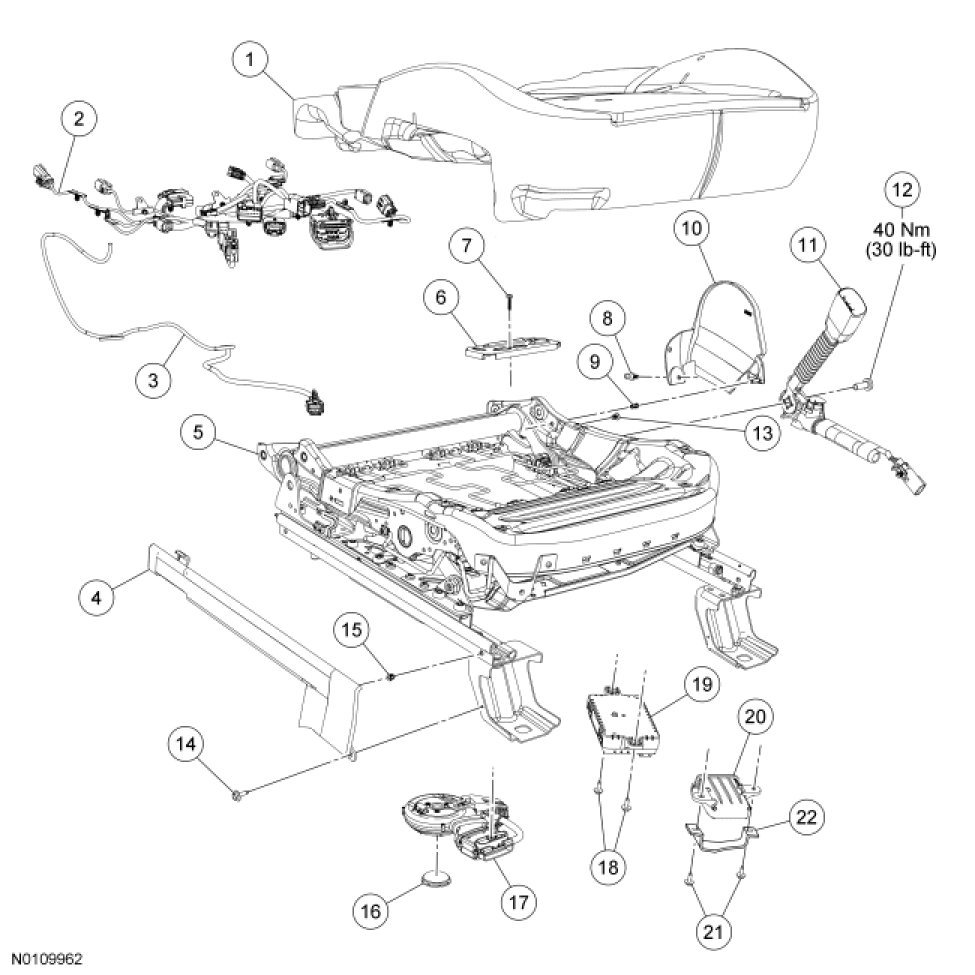

Seat - Exploded View, Front

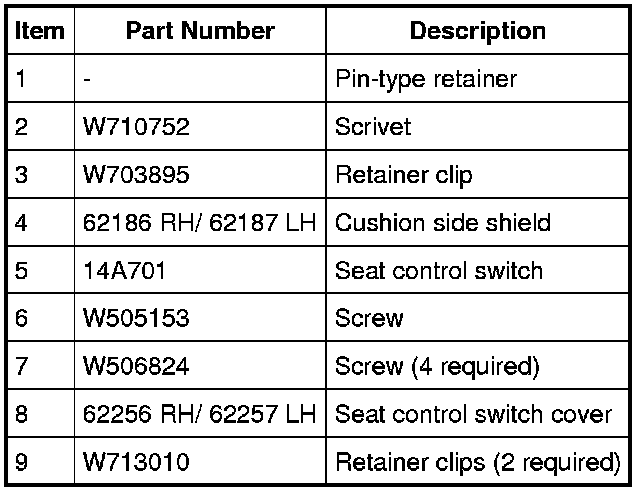

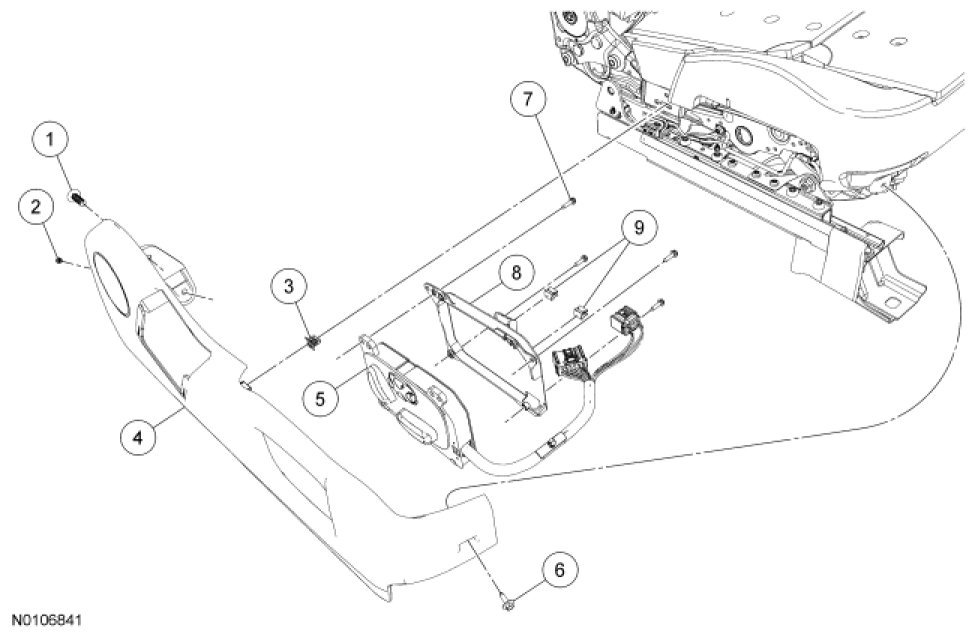

Seat Cushion Side Shield

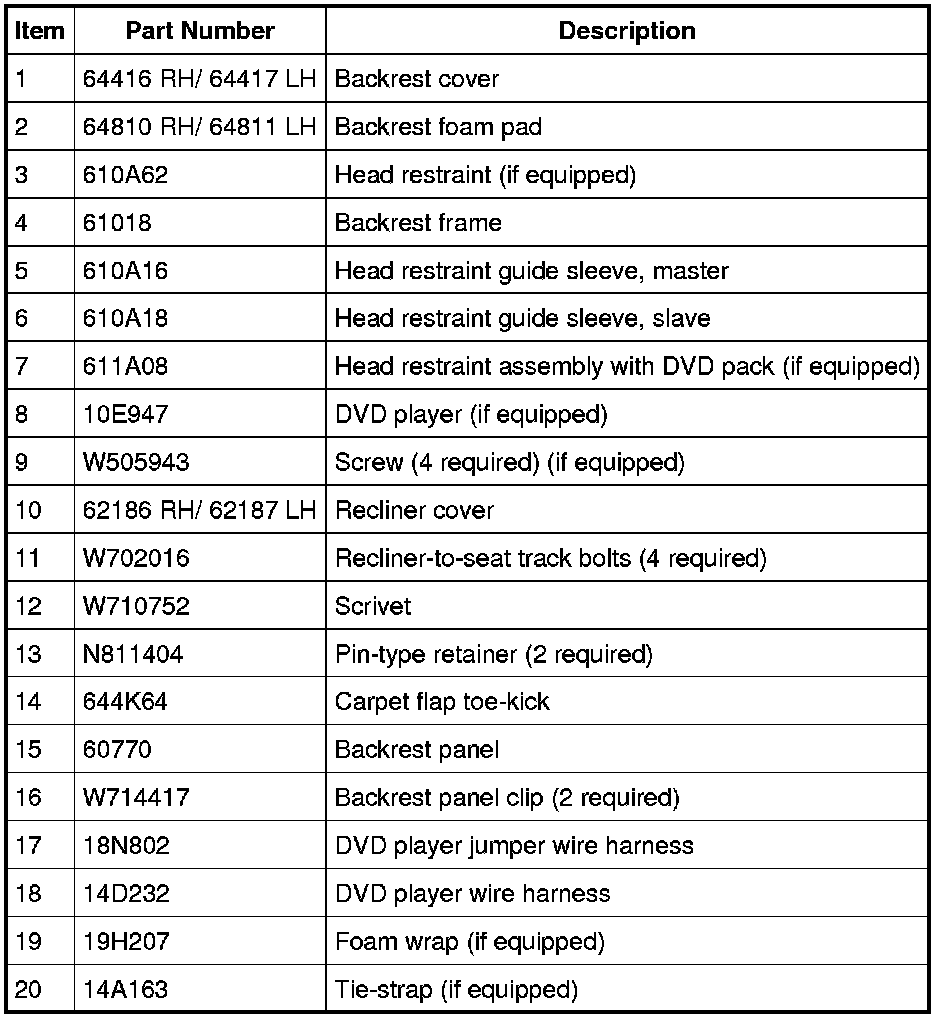

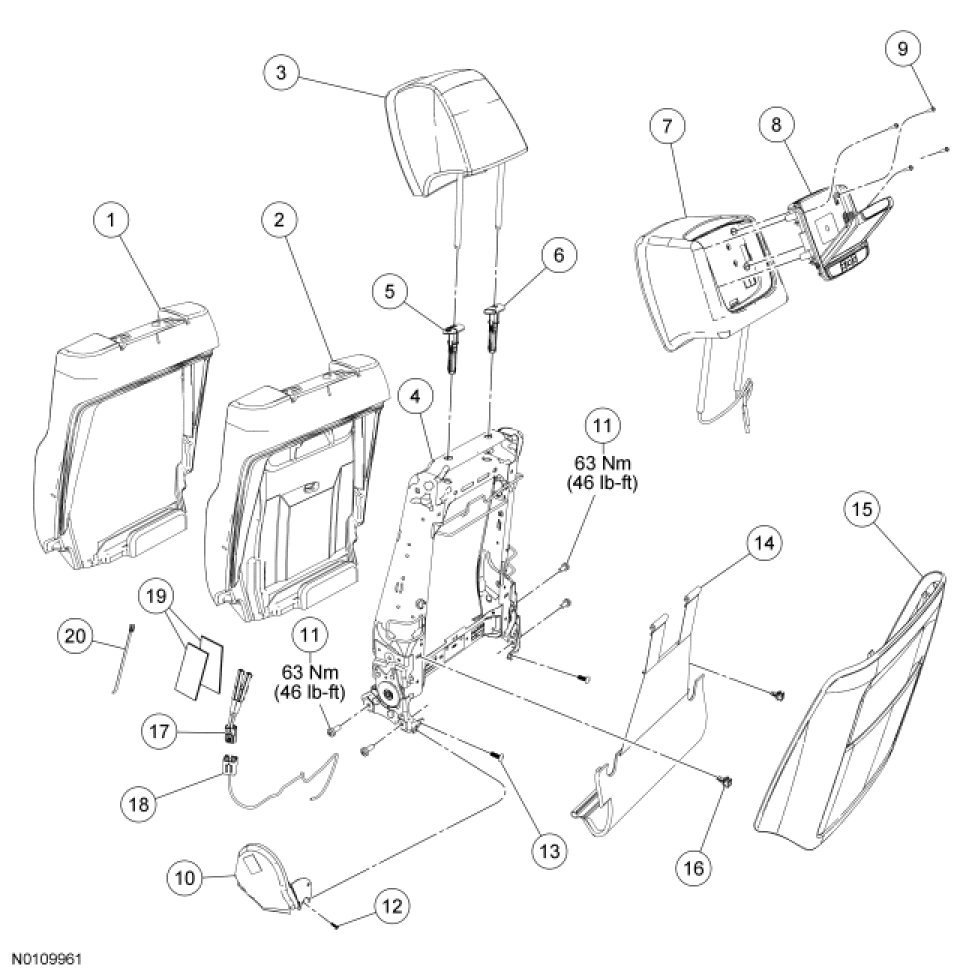

Seat Backrest - Trim Parts

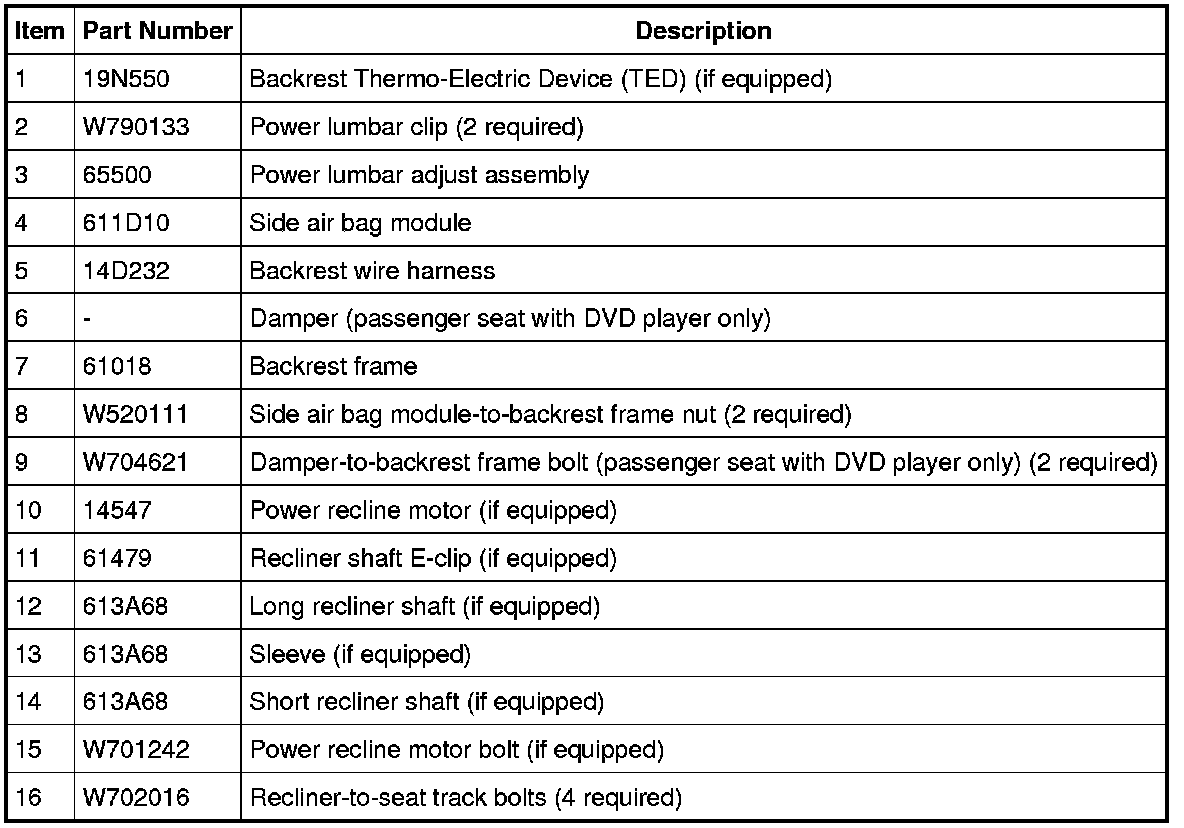

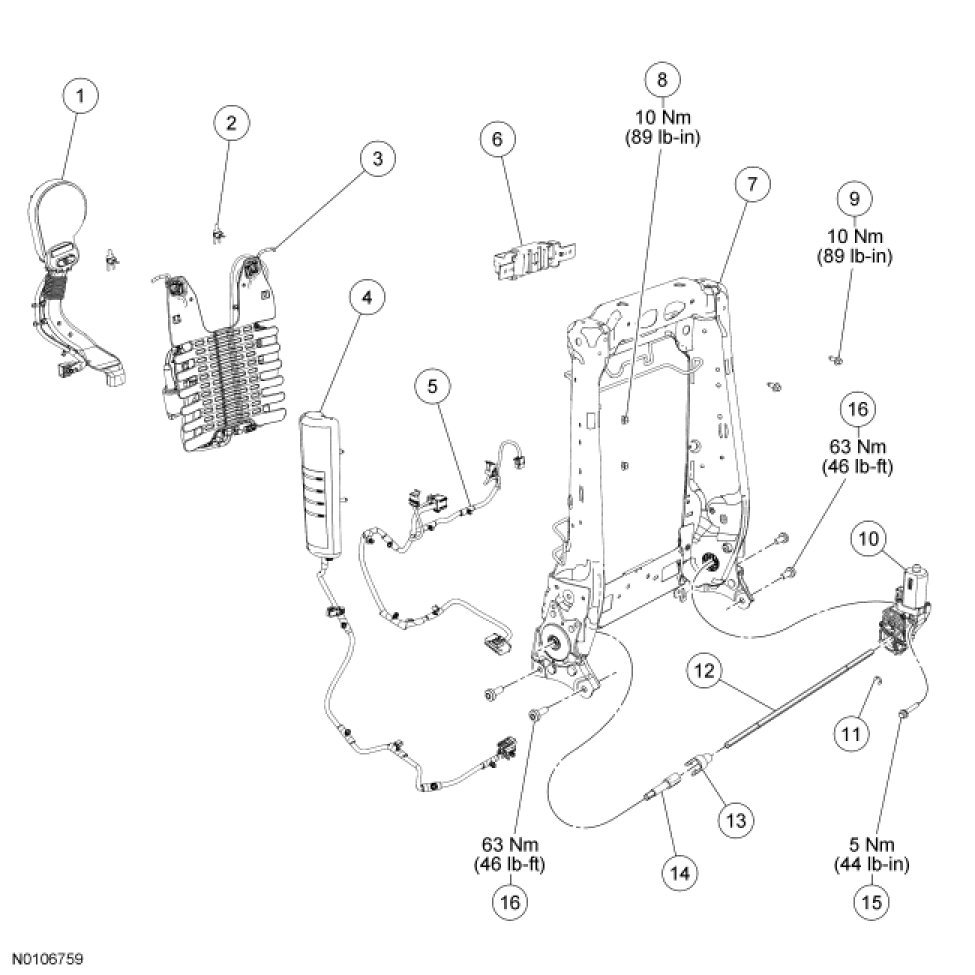

Seat Backrest - Frame Parts

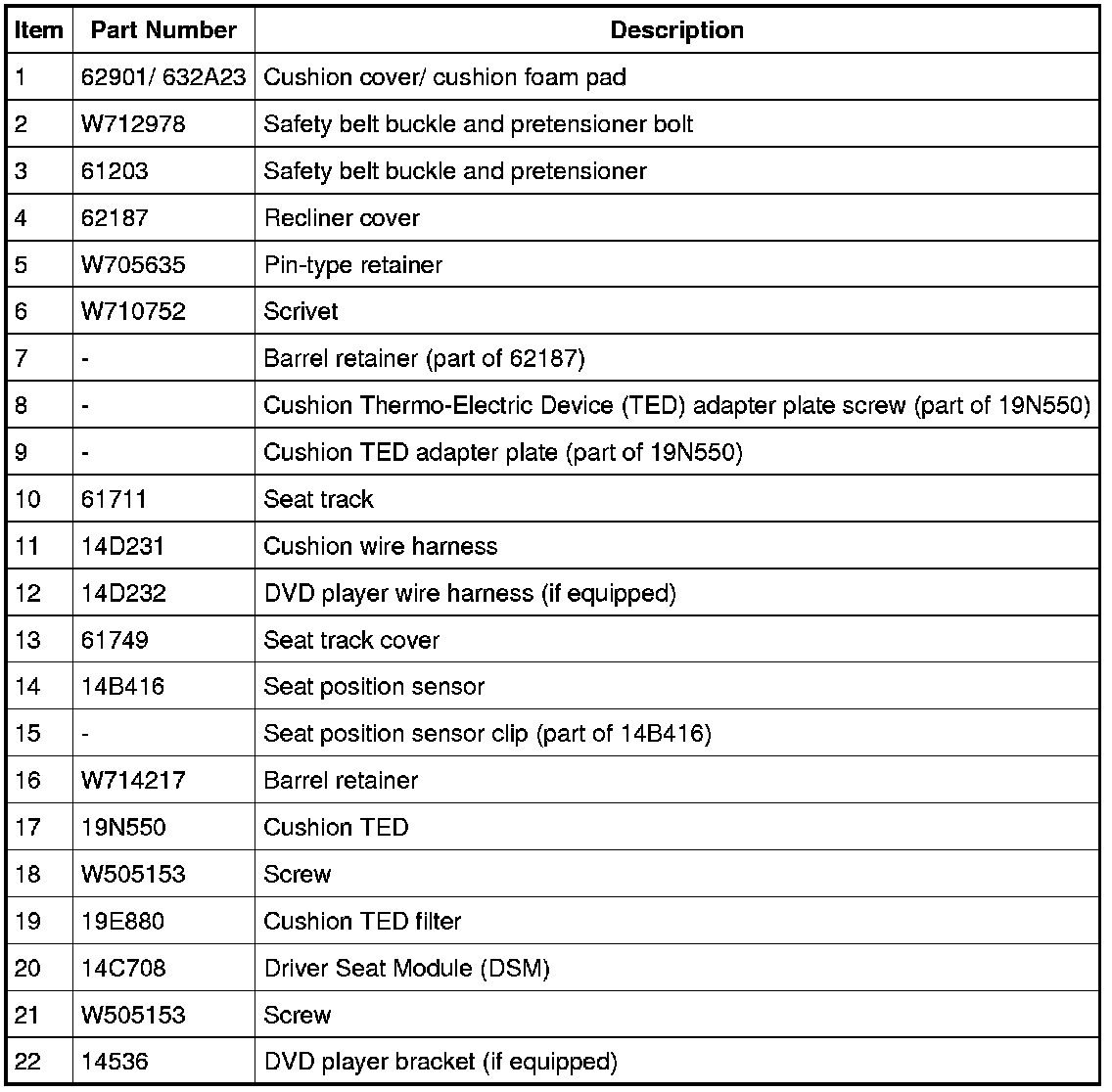

Driver Seat Track

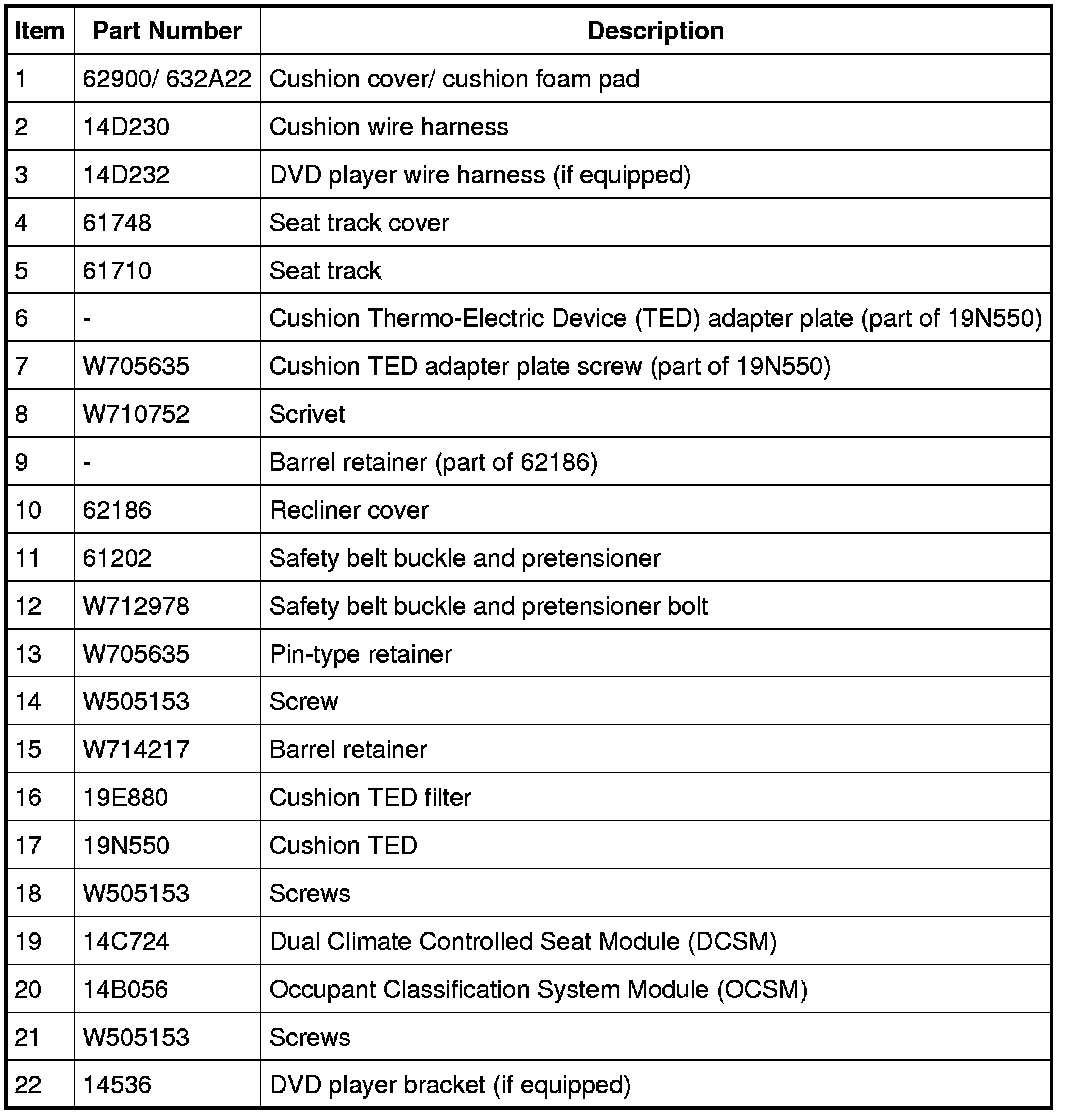

Passenger Seat Track
