Home >> Lincoln >> 2010 >> MKX FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Utility Storage Compartment

Utility Storage Compartment

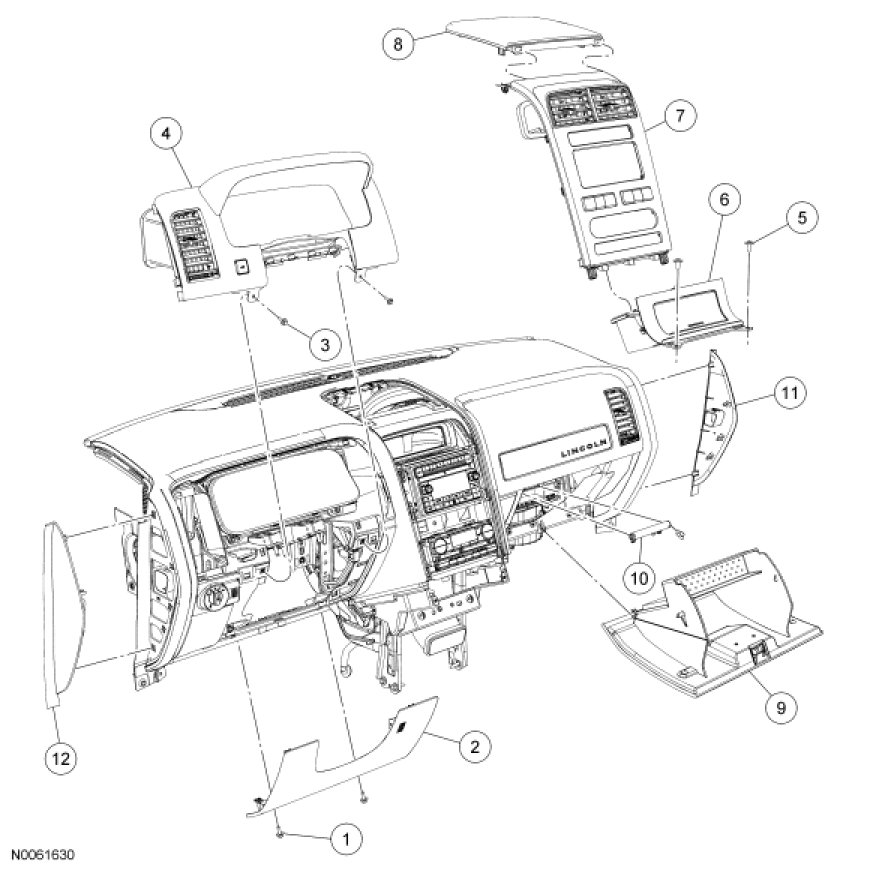

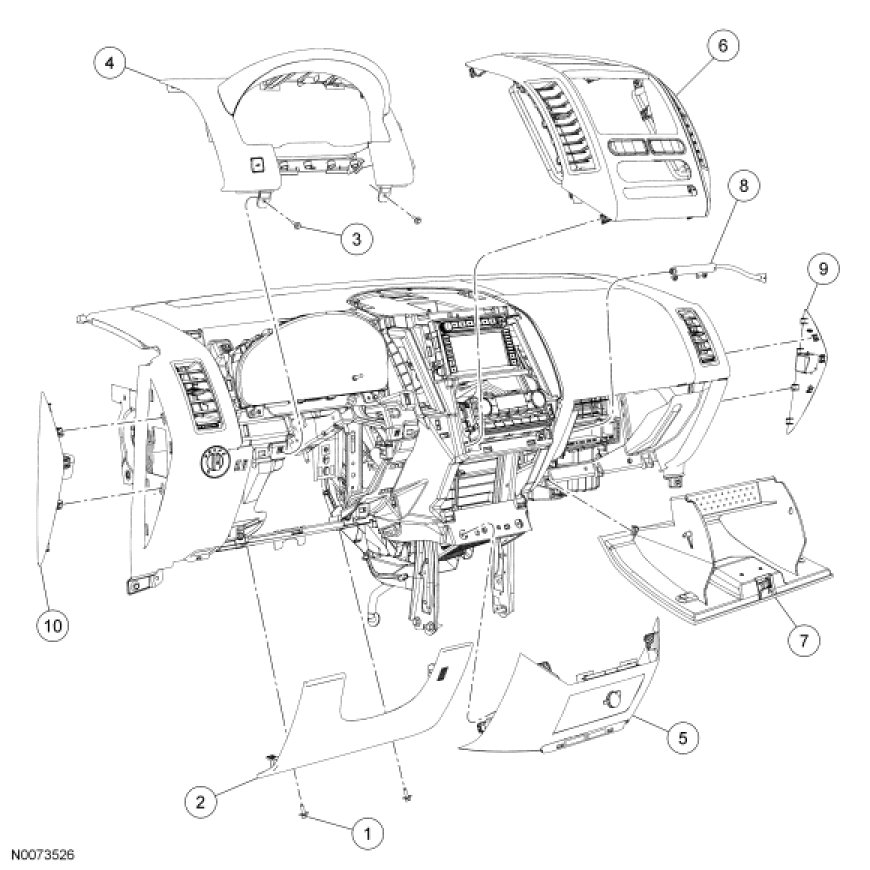

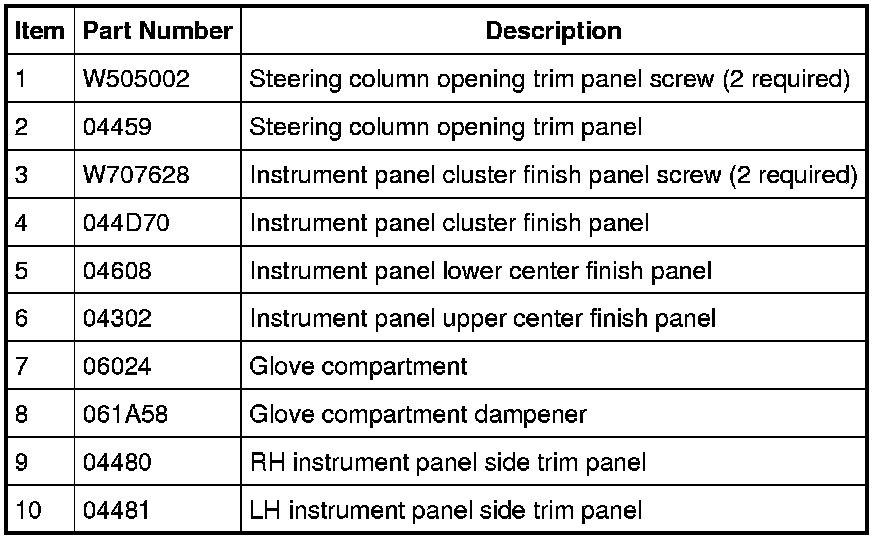

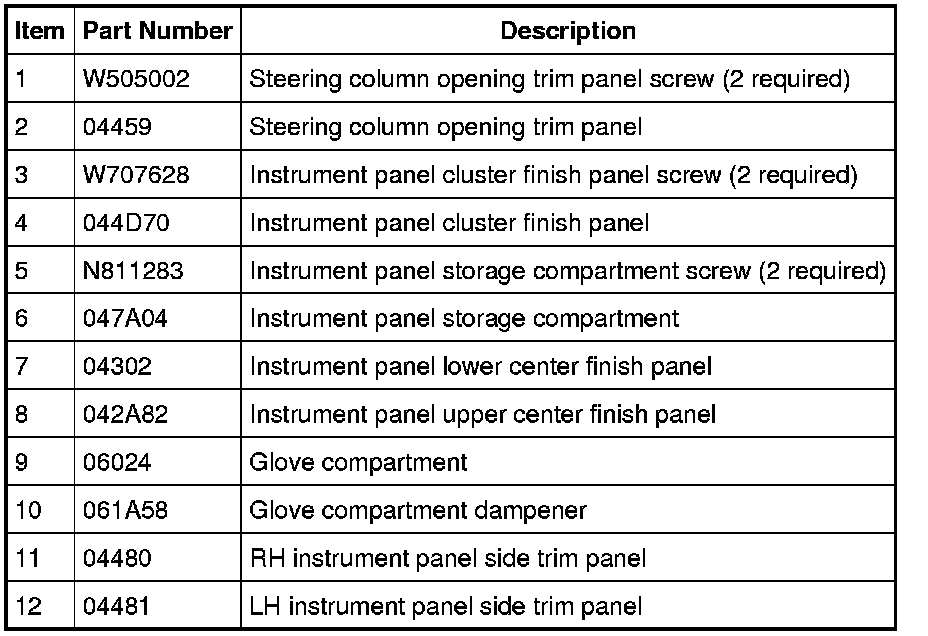

Instrument Panel - Exploded View

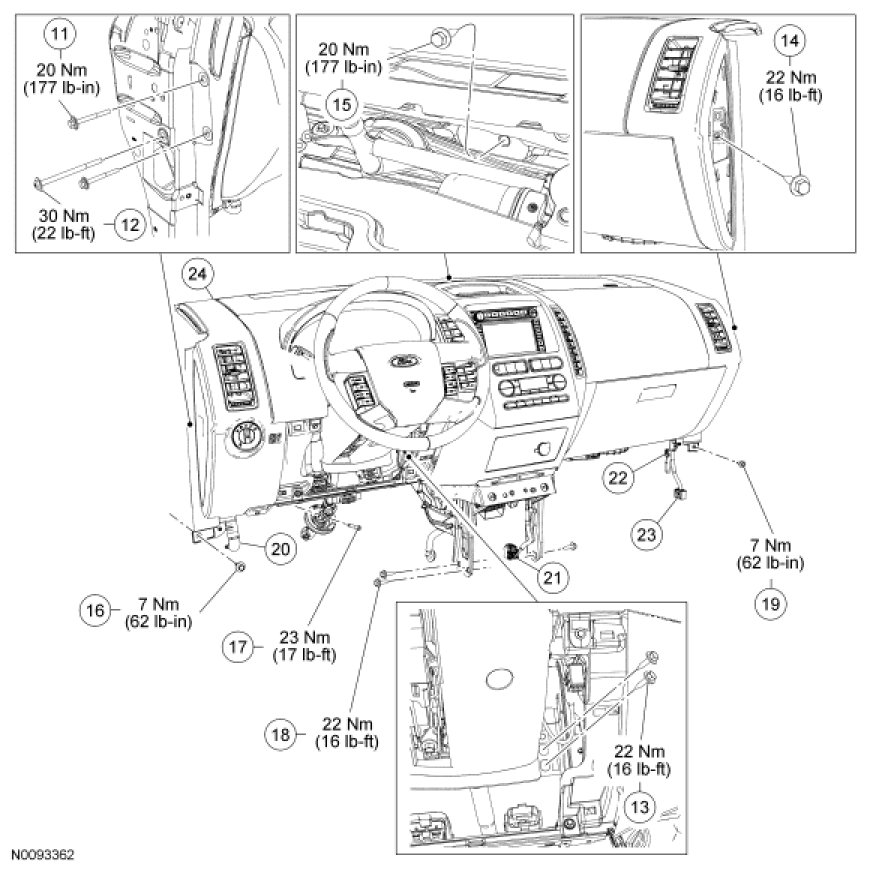

Edge Instrument Panel









Edge Instrument Panel (continued)

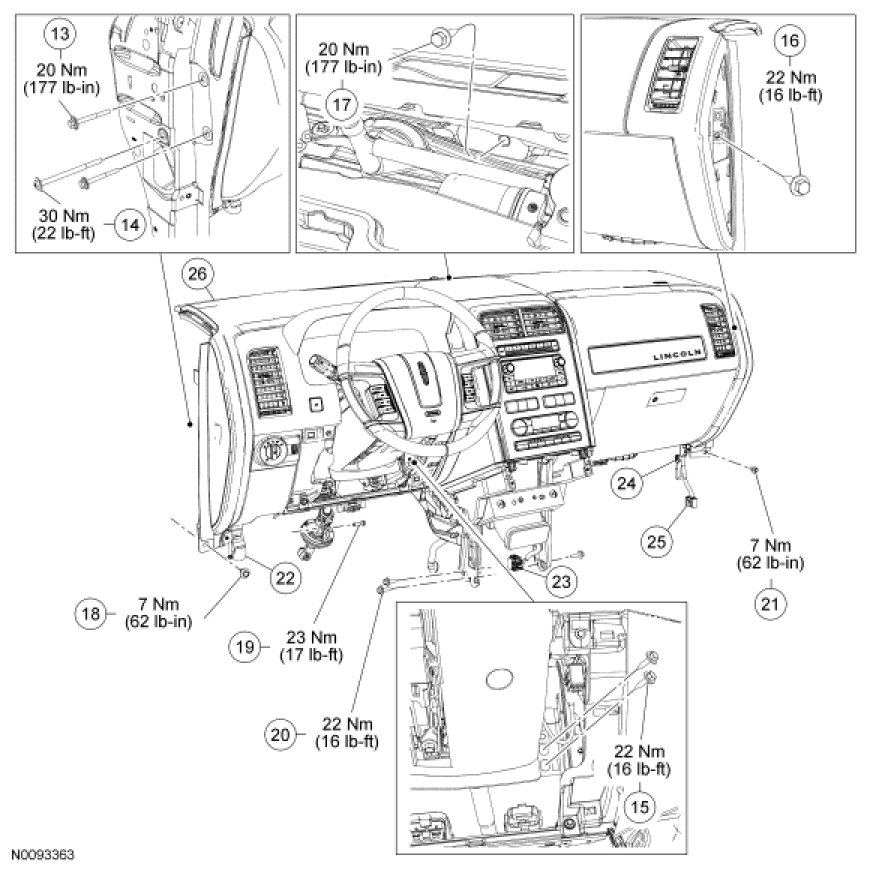

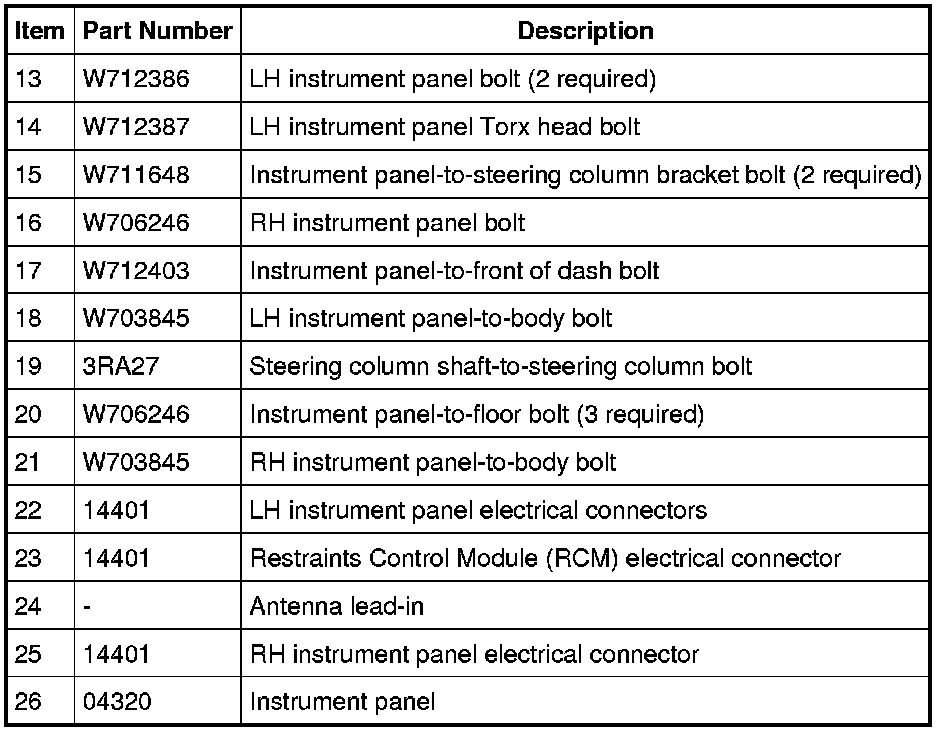

MKX Instrument Panel









MKX Instrument Panel (continued)
