Lincoln
>>
2010
>>
MKX FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Block Assembly
Cylinder Block Assembly

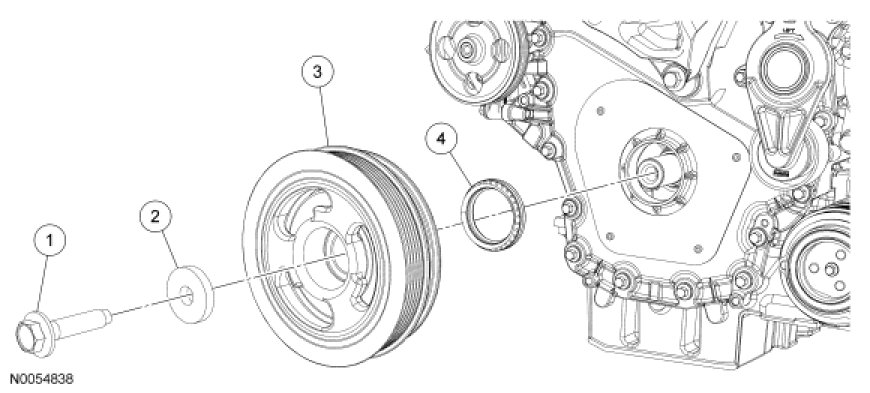

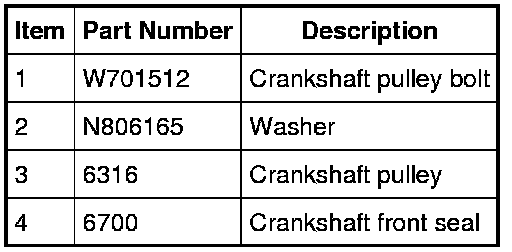

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal
