Exhaust System




Exhaust System - Exploded View

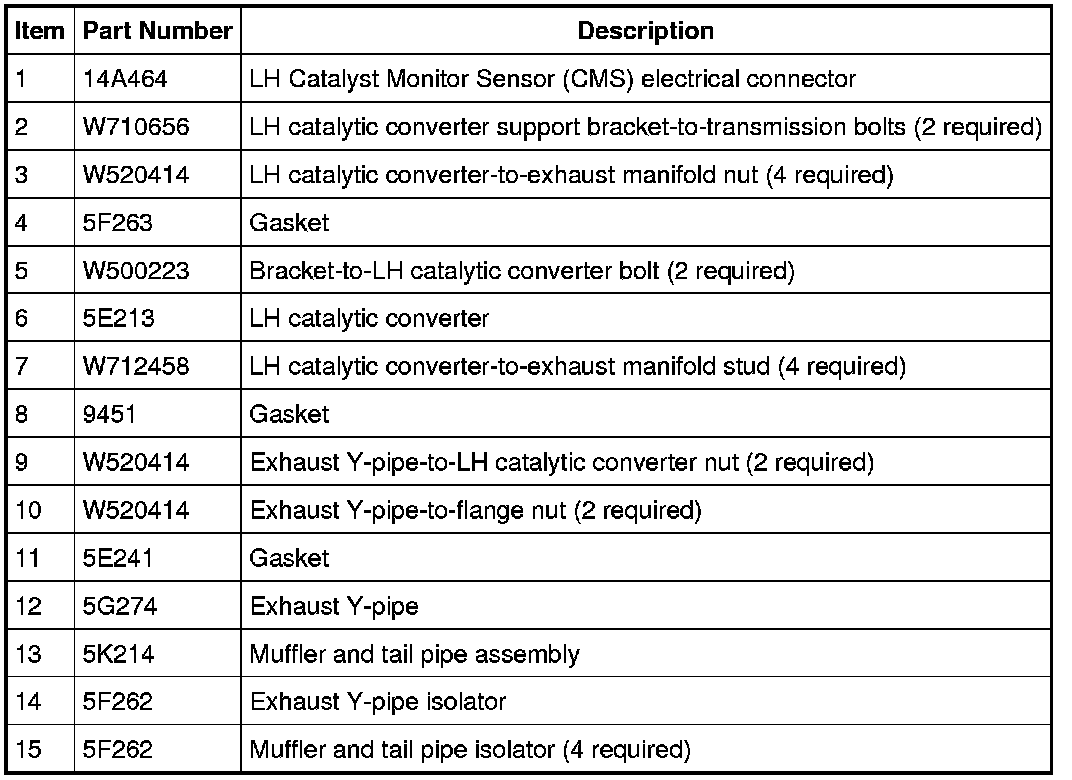

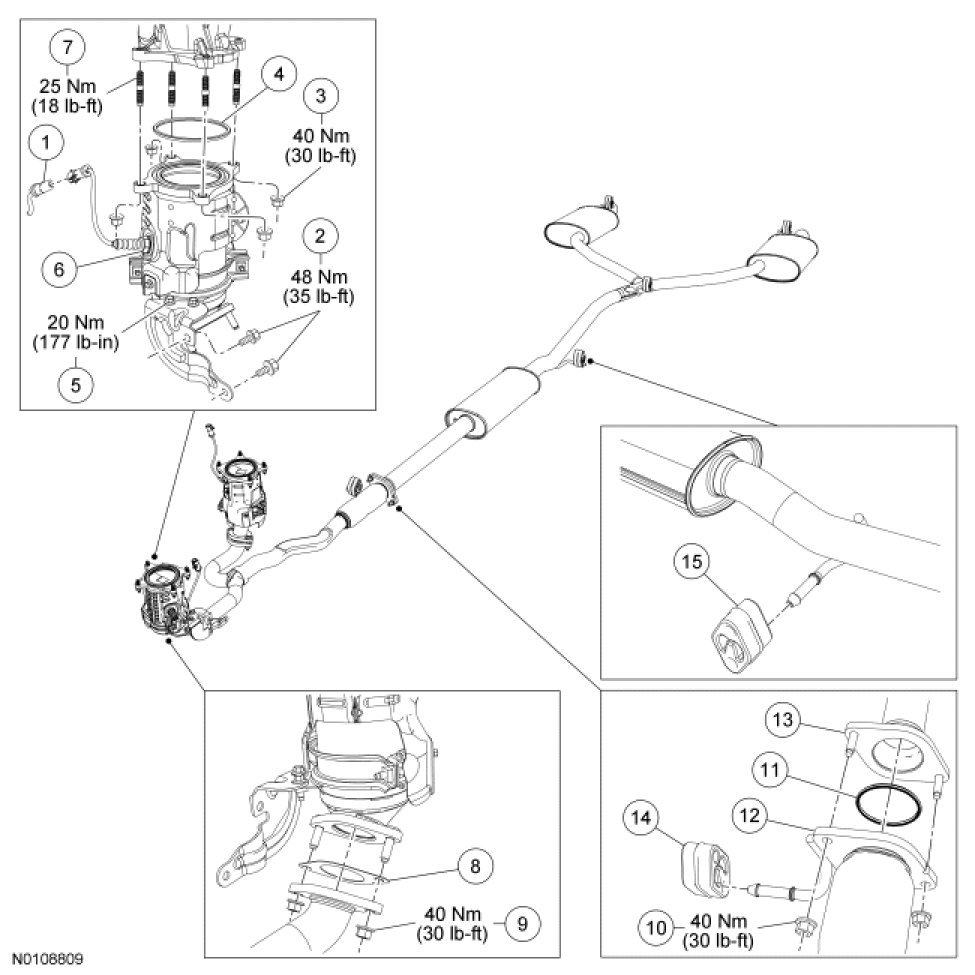

3.7L LH Catalytic Converter and Exhaust Pipes

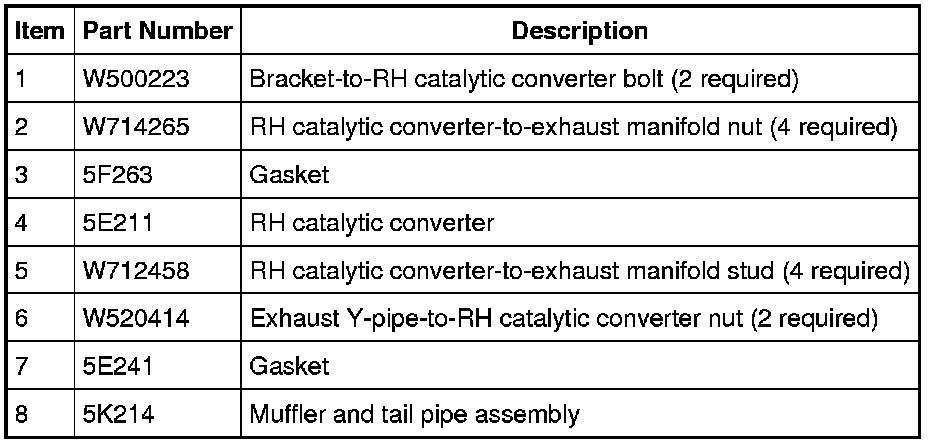

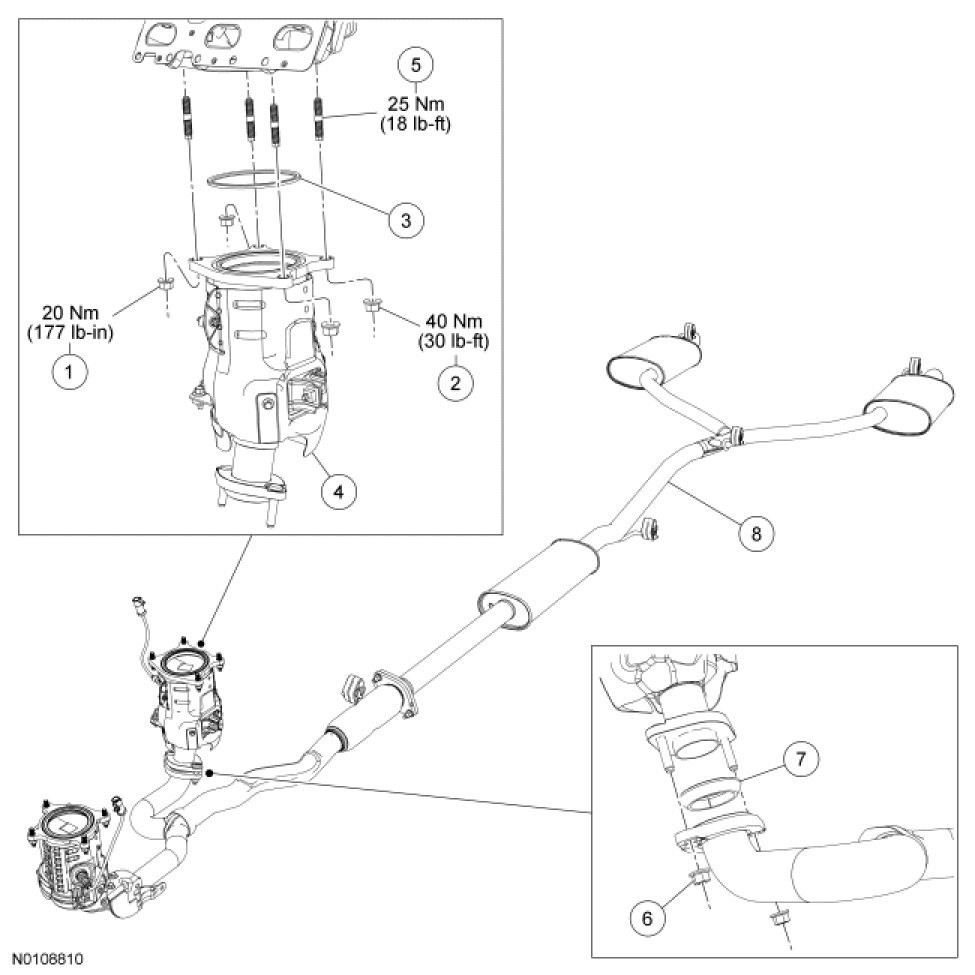

3.7L RH Catalytic Converter and Exhaust Pipes

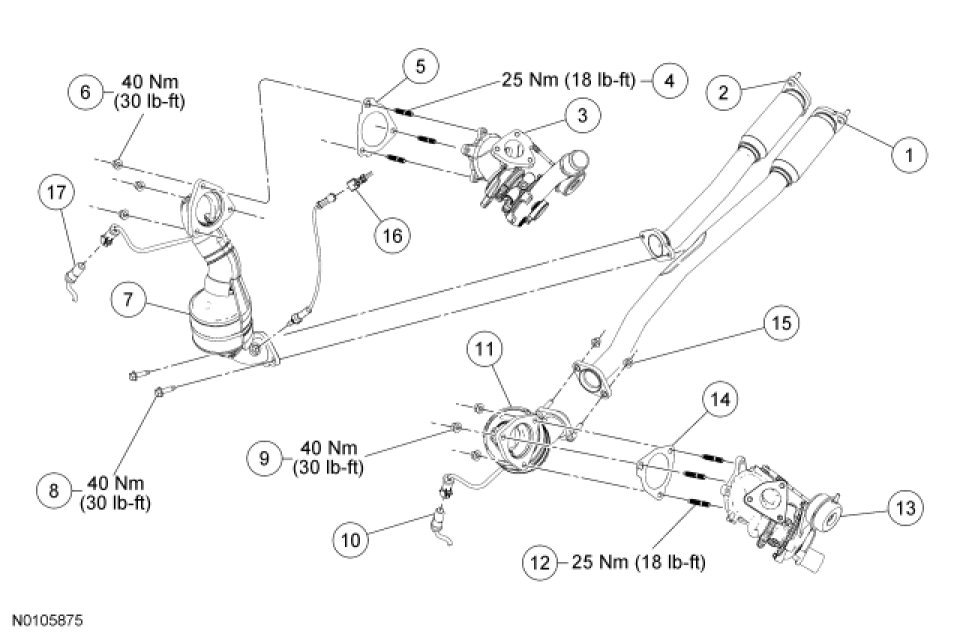

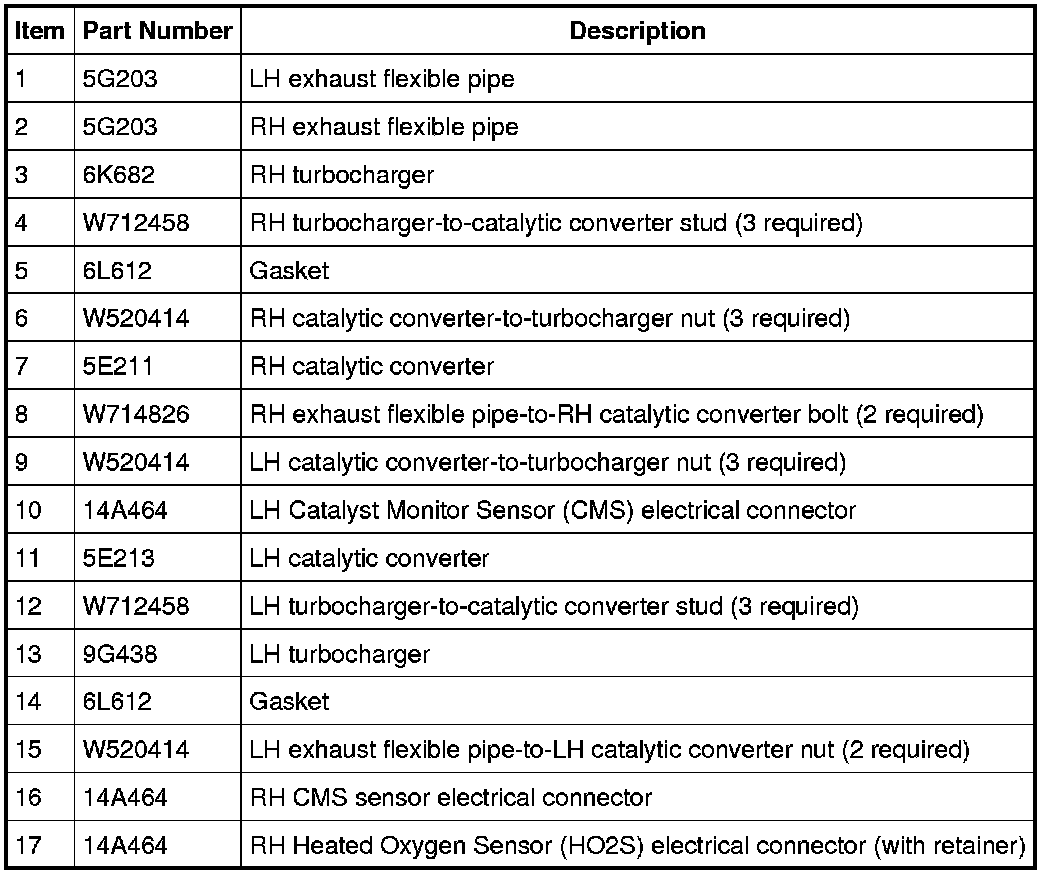

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH and RH Catalytic Converters and Exhaust Flexible Pipes

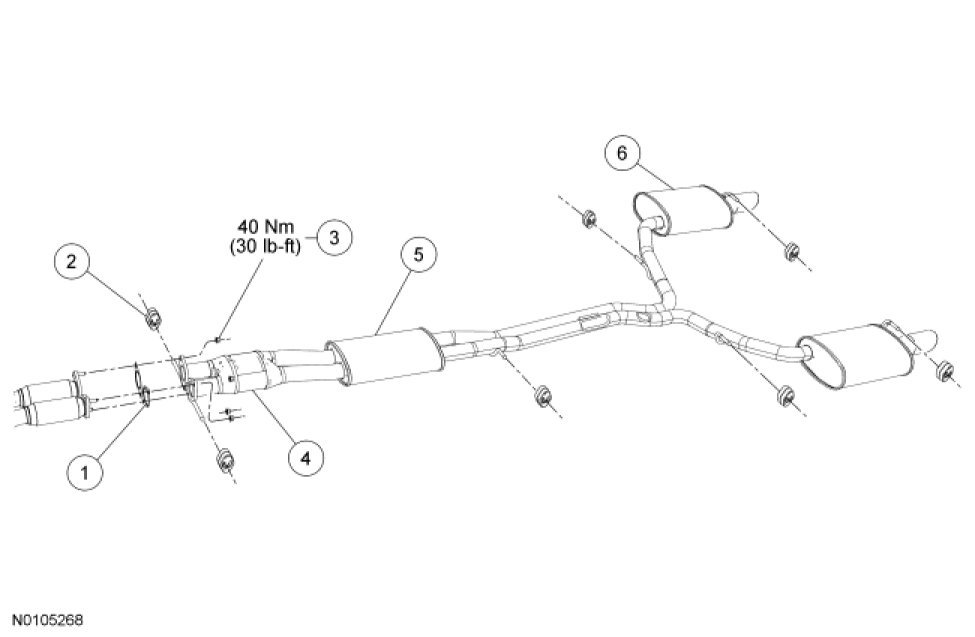

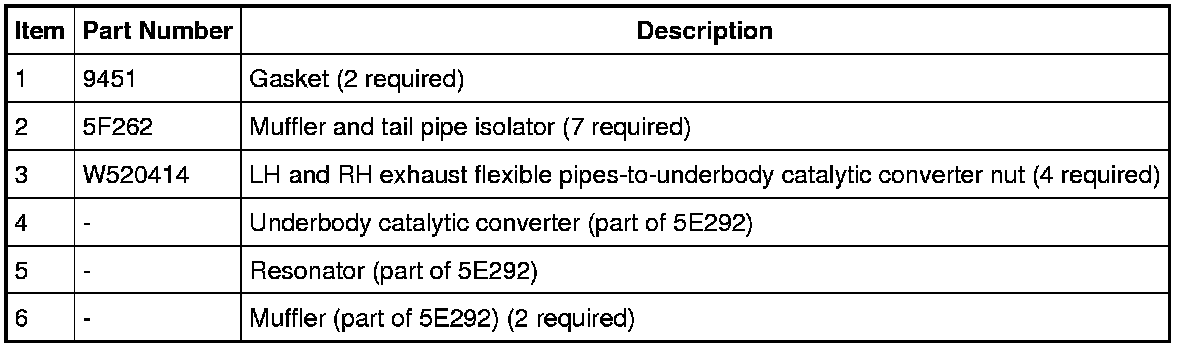

3.5L GTDI Muffler and Tail Pipe Assembly
