Home
>>
Lincoln
>>
2010
>>
MKT FWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Block Assembly
Cylinder Block Assembly

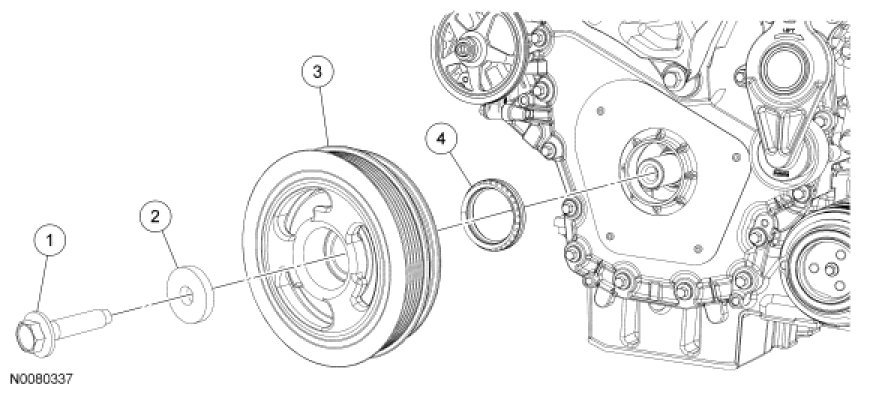

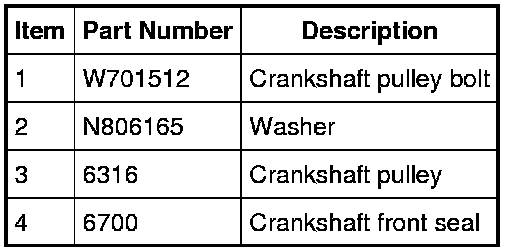

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal
