lemon-mirror
:
Home
>>
Lincoln
>>
2010
>>
MKT FWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Exploded View Images
Exploded View Images

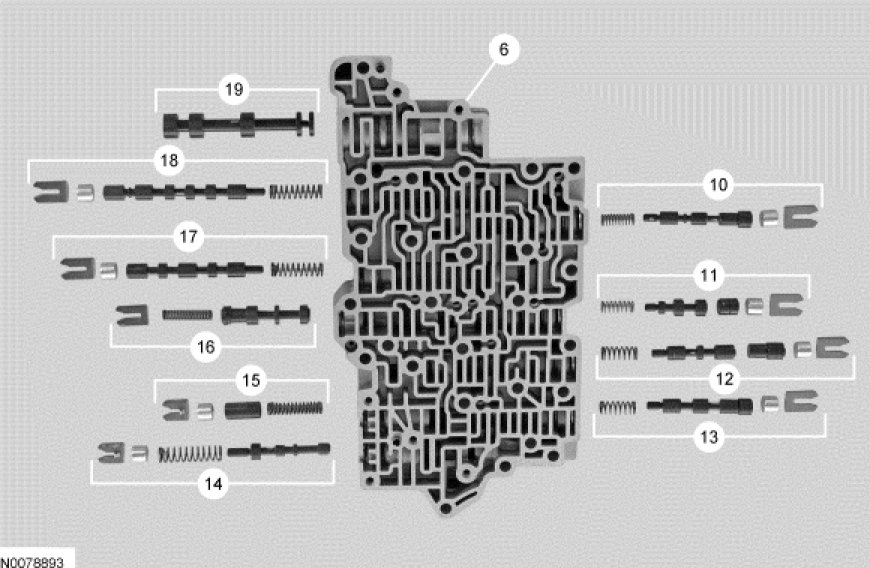

Main Control Valve Body

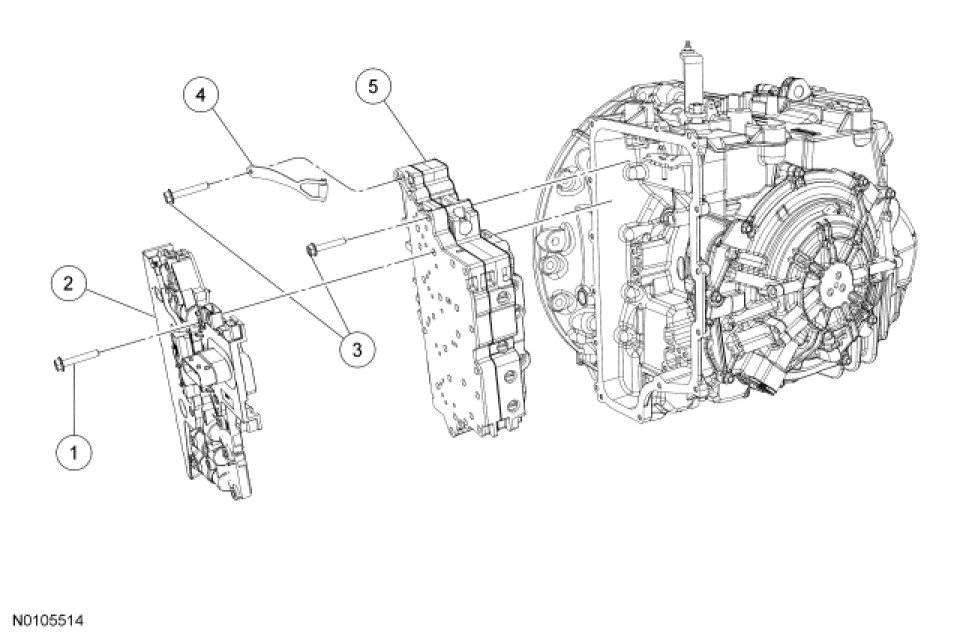

Valve Body
Valve Body:

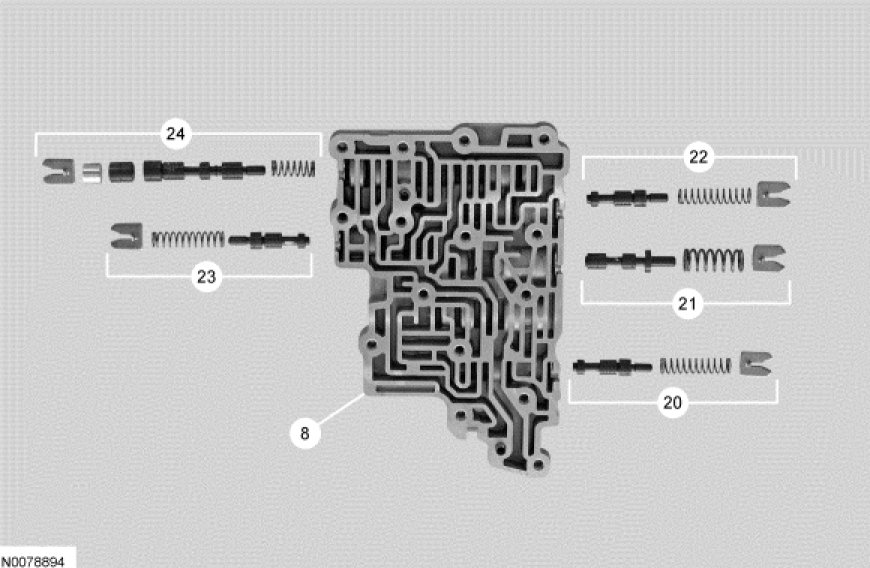

Lower Valve Body
Lower Valve Body:
