Engine Ignition Components - Exploded View




Engine Ignition Components - Exploded View

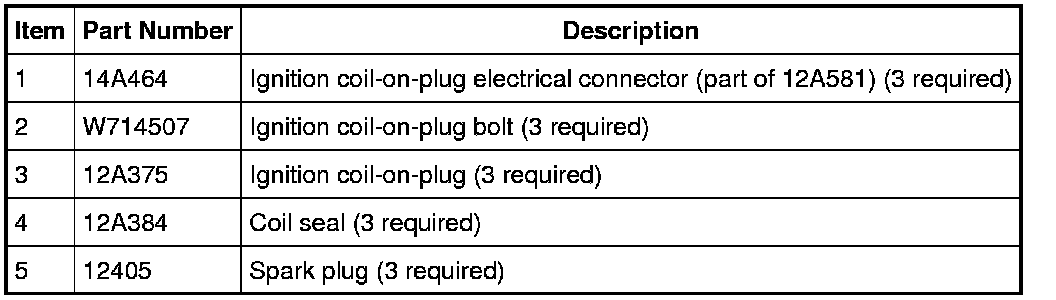

3.7L LH Side

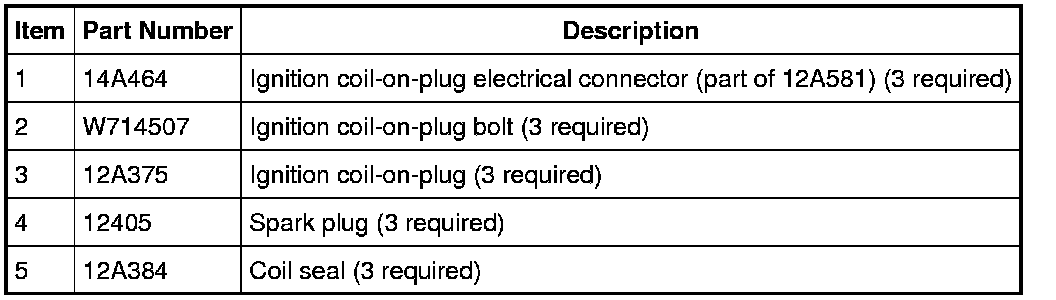

3.7L RH Side

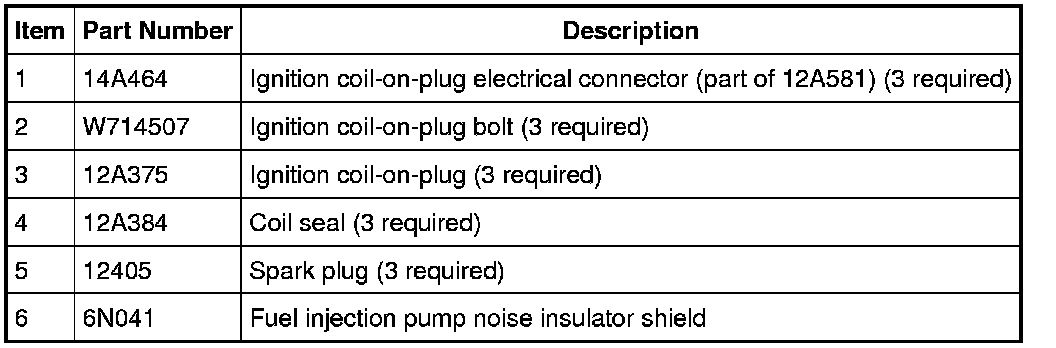

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side

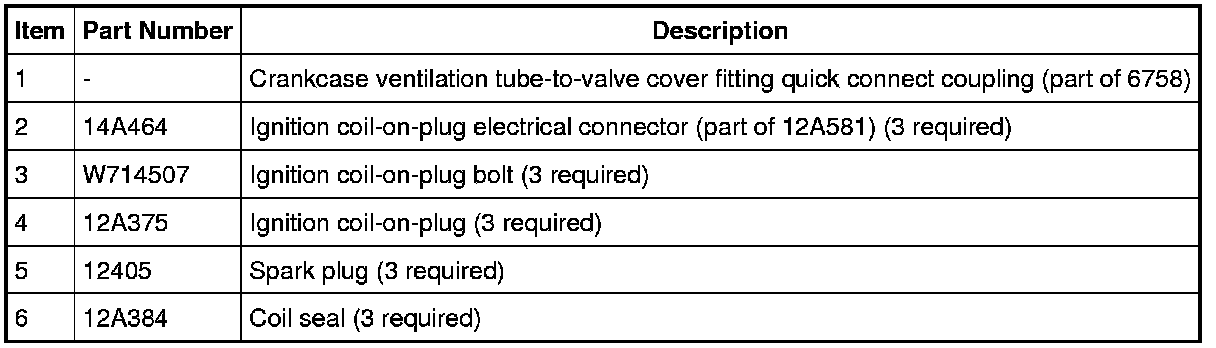

3.5L GTDI RH Side
