Home >> Lincoln >> 2009 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Entertainment System Control Module >> Audio Rear Control Unit (RCU) Module

Audio Rear Control Unit (RCU) Module

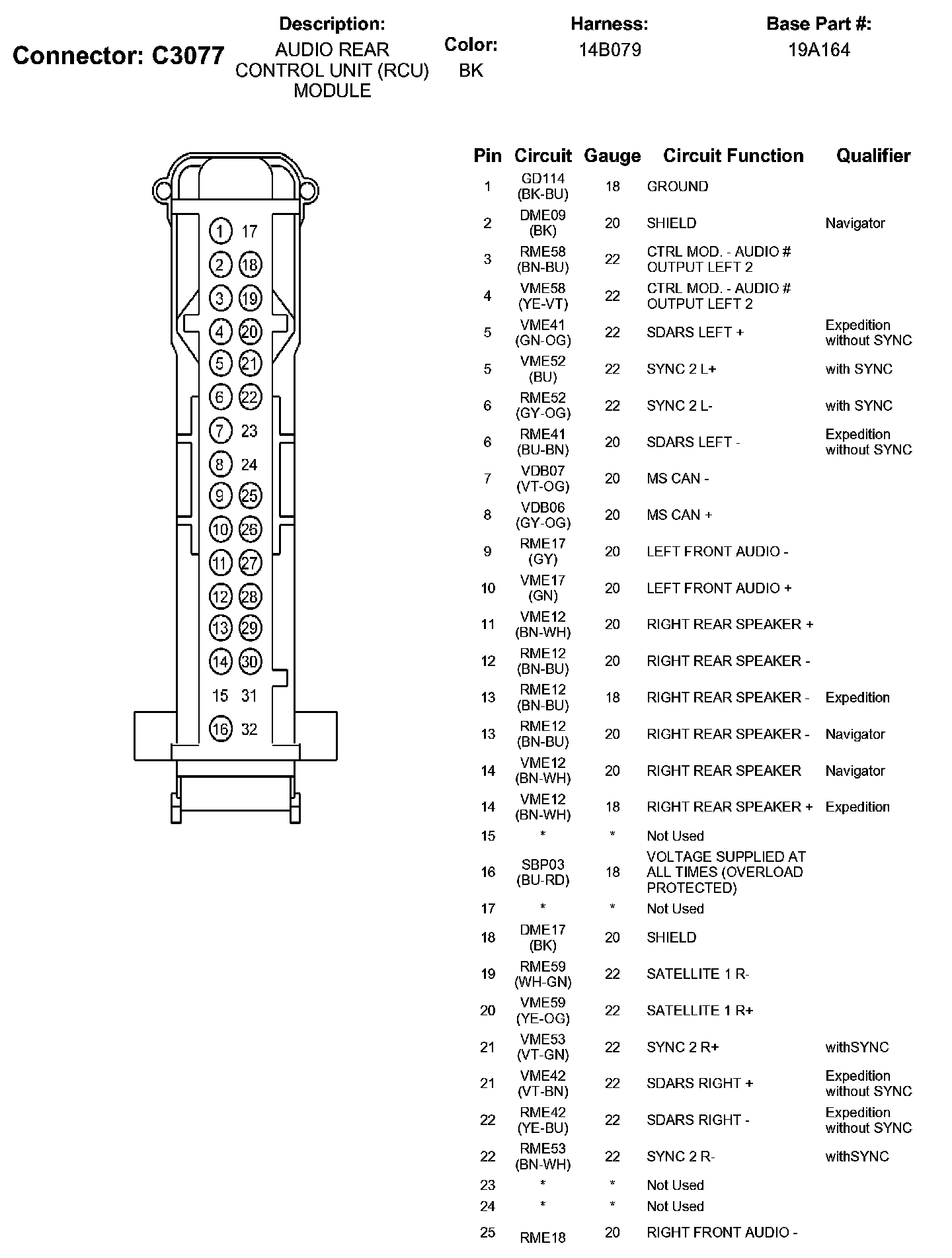

Part 1:

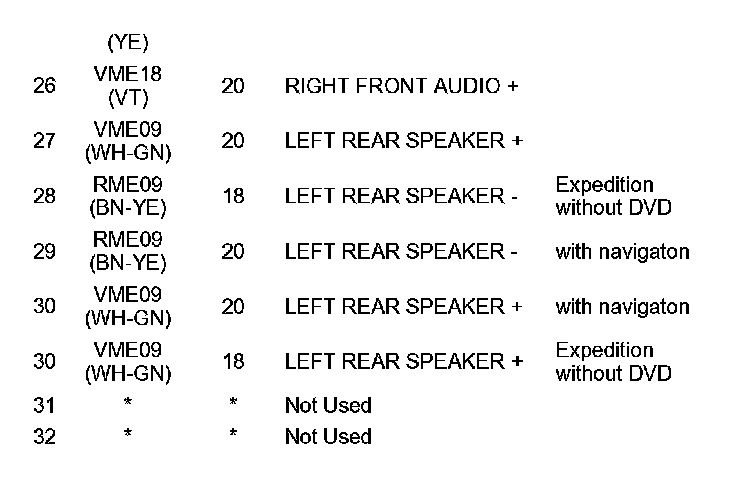

Part 2:
