Exhaust System

Exhaust System - Exploded View

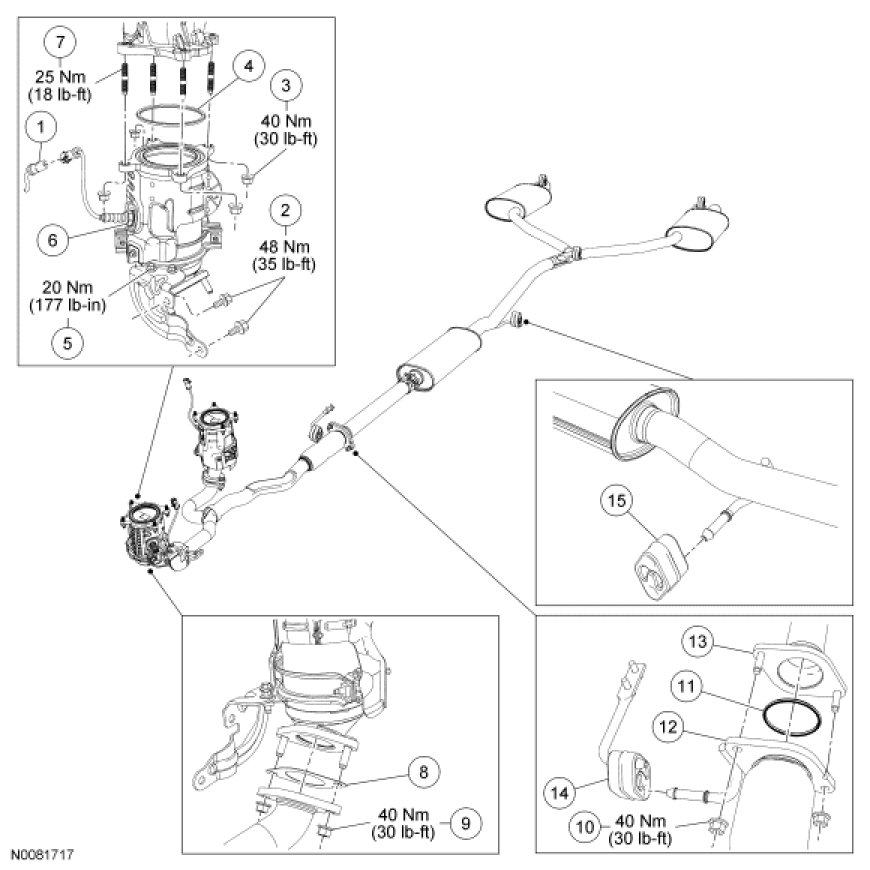

LH Catalytic Converter and Exhaust Pipes

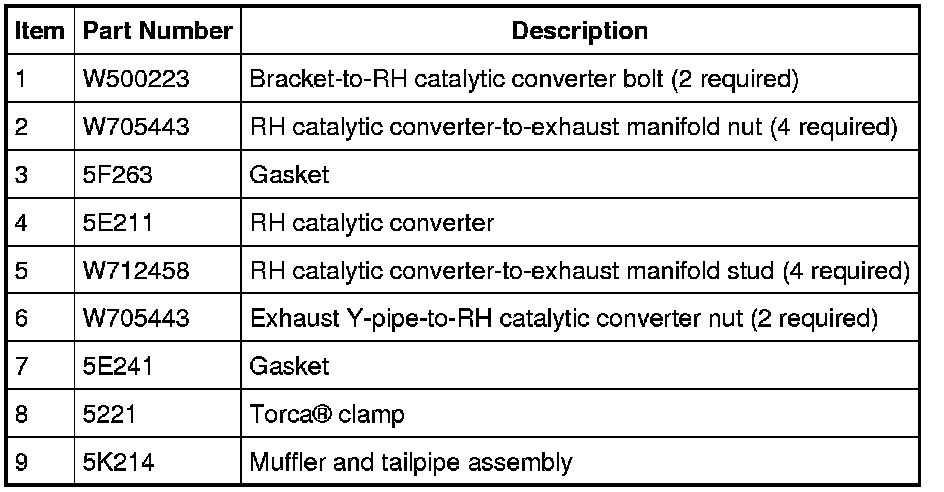

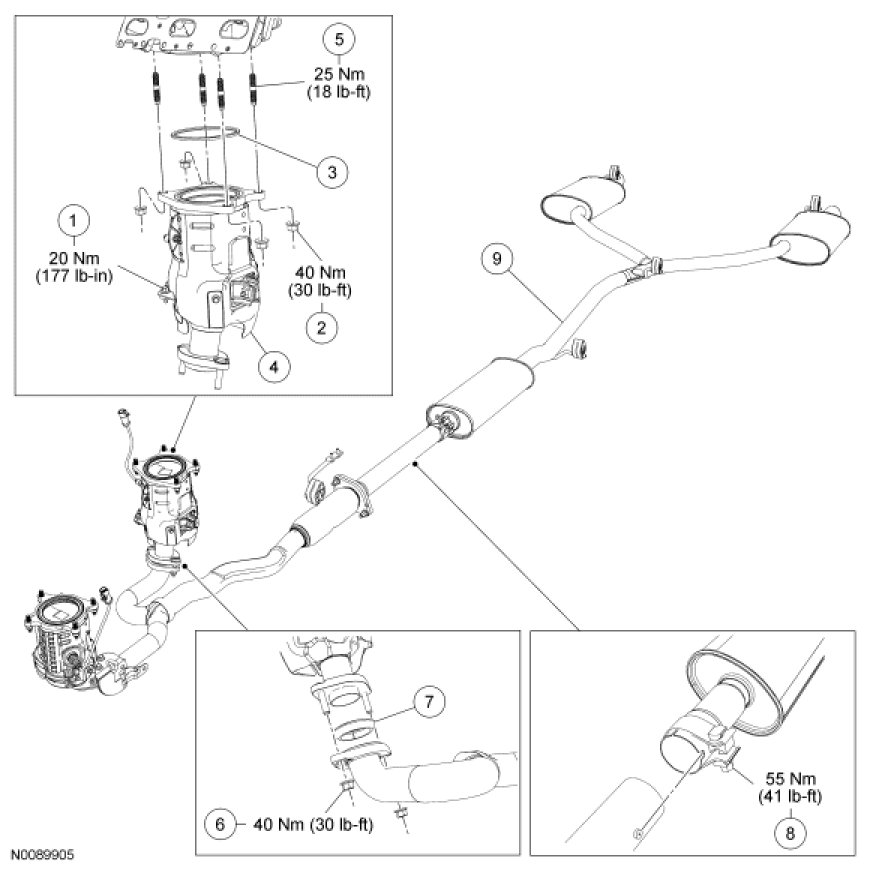

RH Catalytic Converter and Exhaust Pipes









1. For additional information, refer to the procedures.
