Home >> Lincoln >> 2008 >> MKX FWD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams >> HVAC Module, EMTC

HVAC Module, EMTC

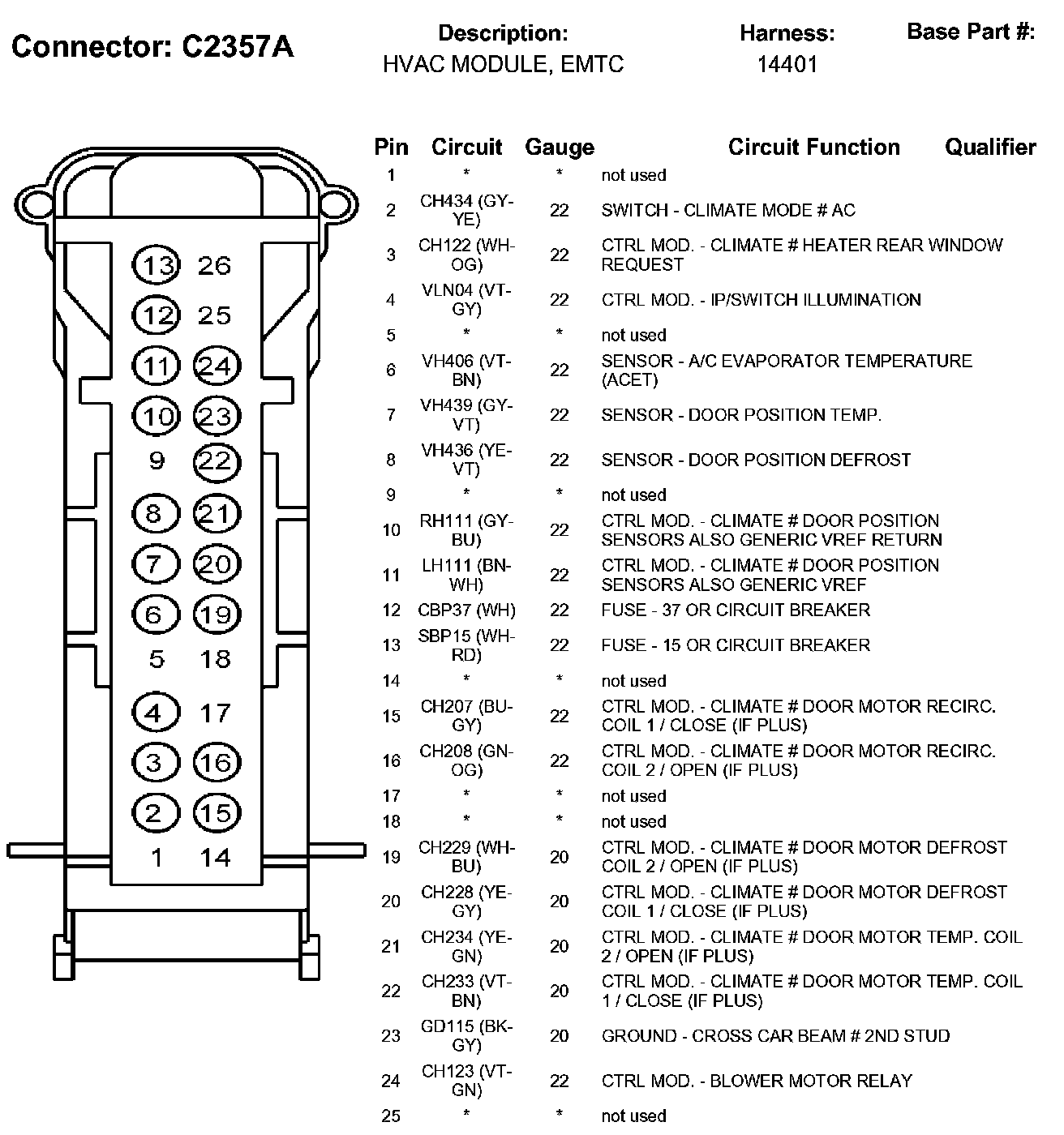

C2357A (Part 1):

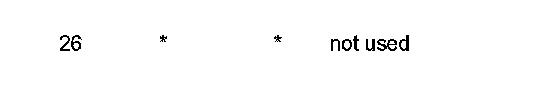

C2357A (Part 2):

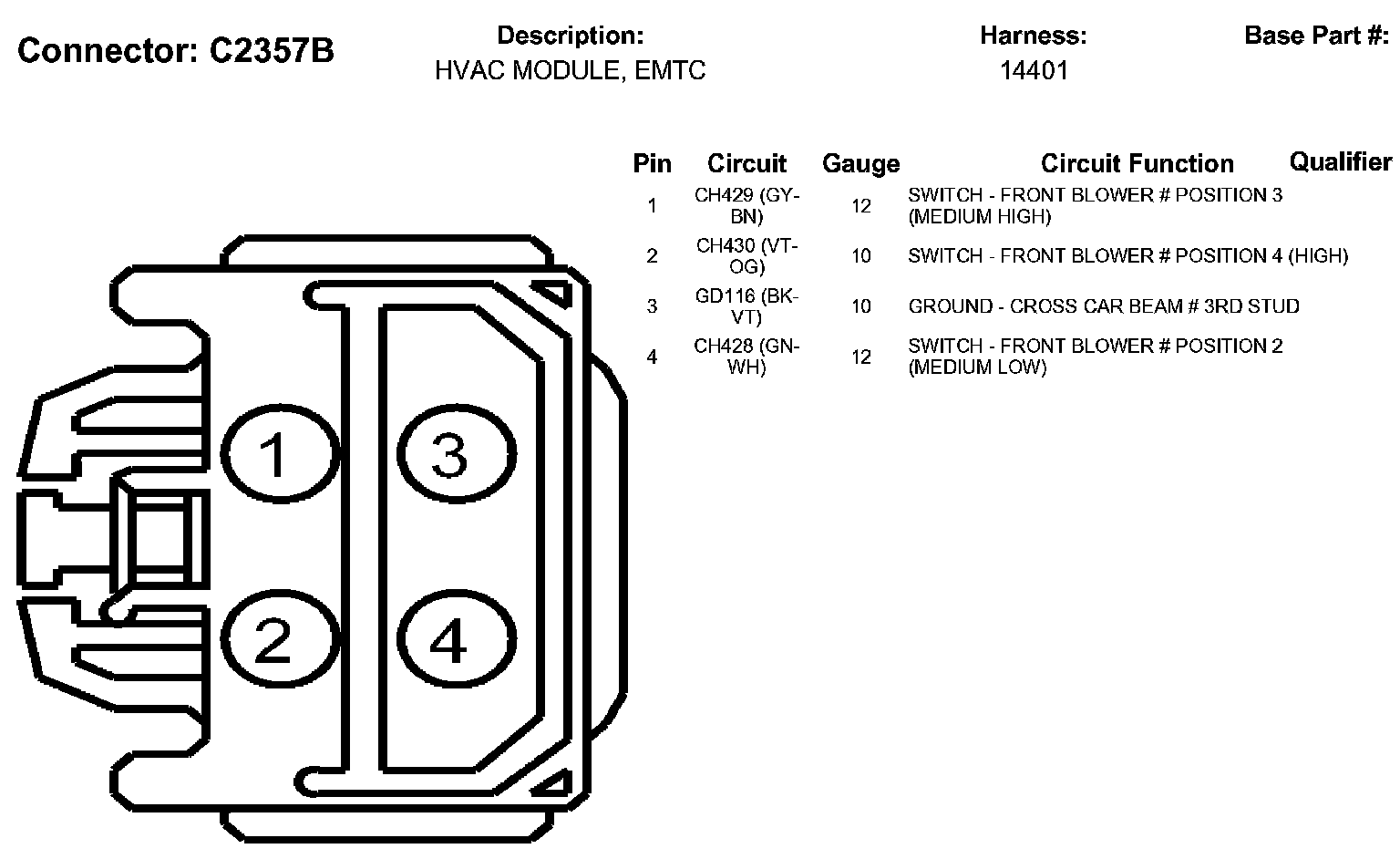

C2357B:
