Home >> Lincoln >> 2008 >> MKX FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module

Power Trunk / Liftgate Control Module

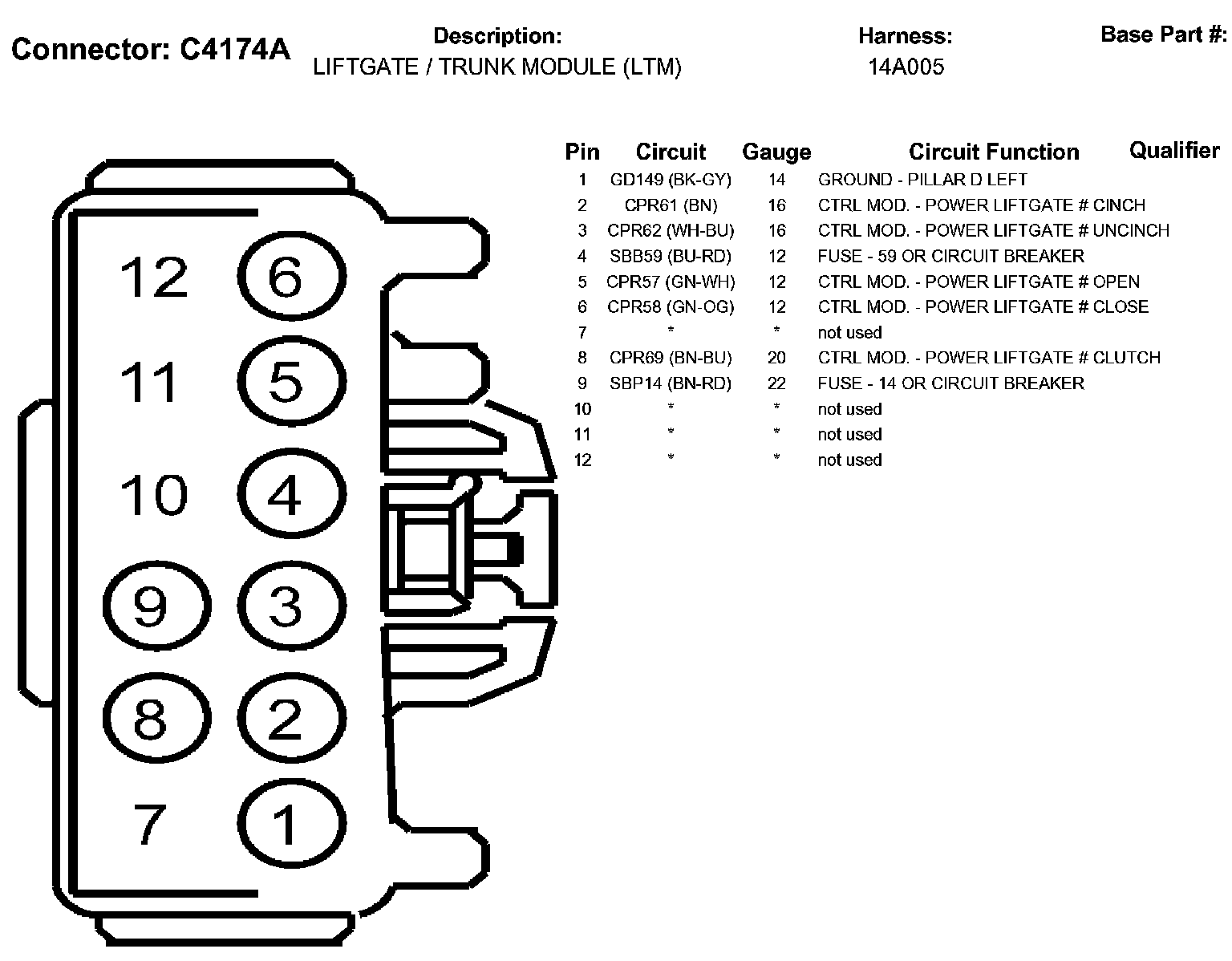

C4174A:

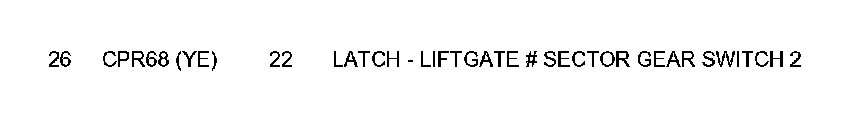

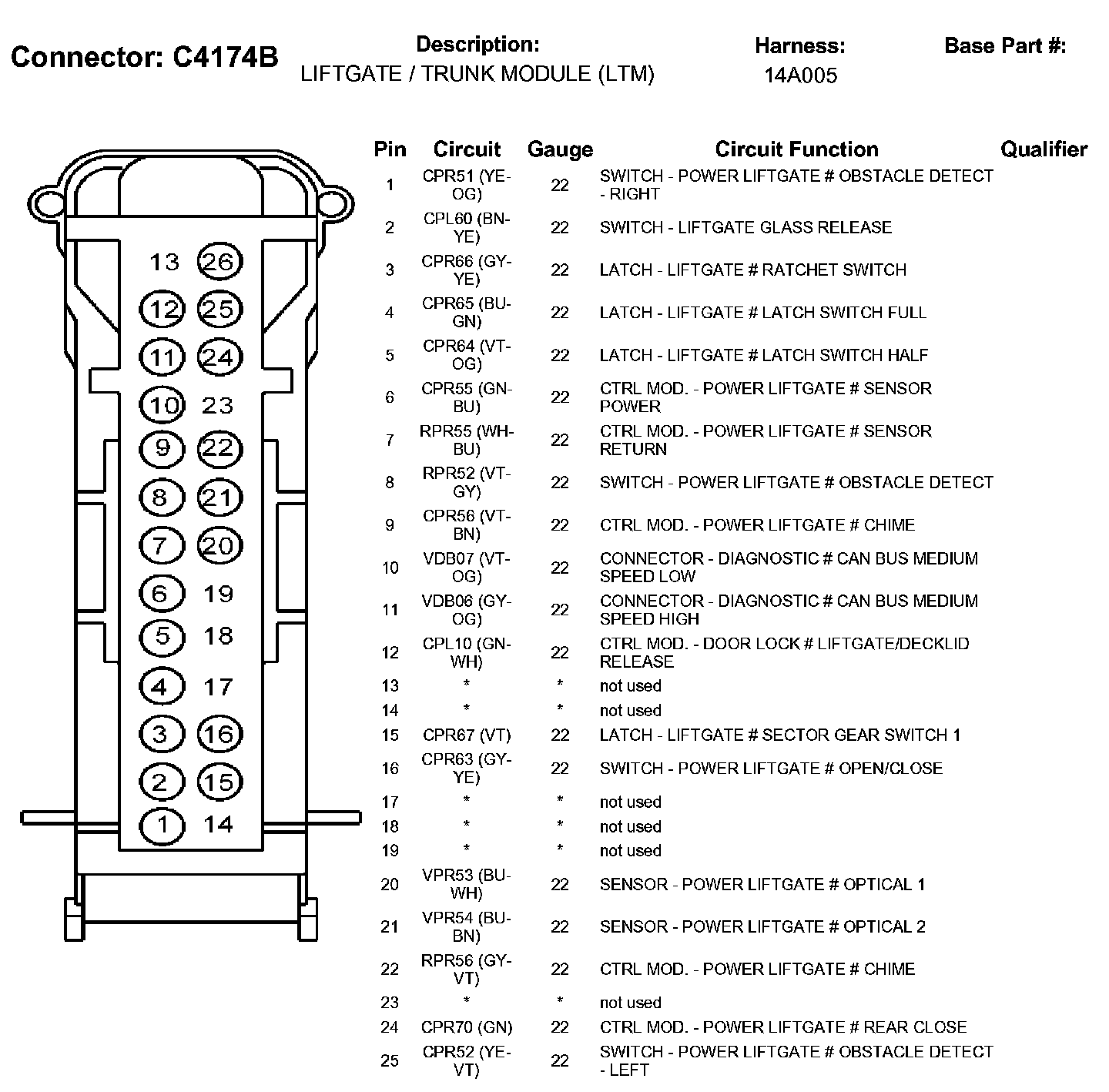

C4174B (Part 1):



C4174B (Part 2):
