Entertainment System Control Module
Entertainment System Control Module

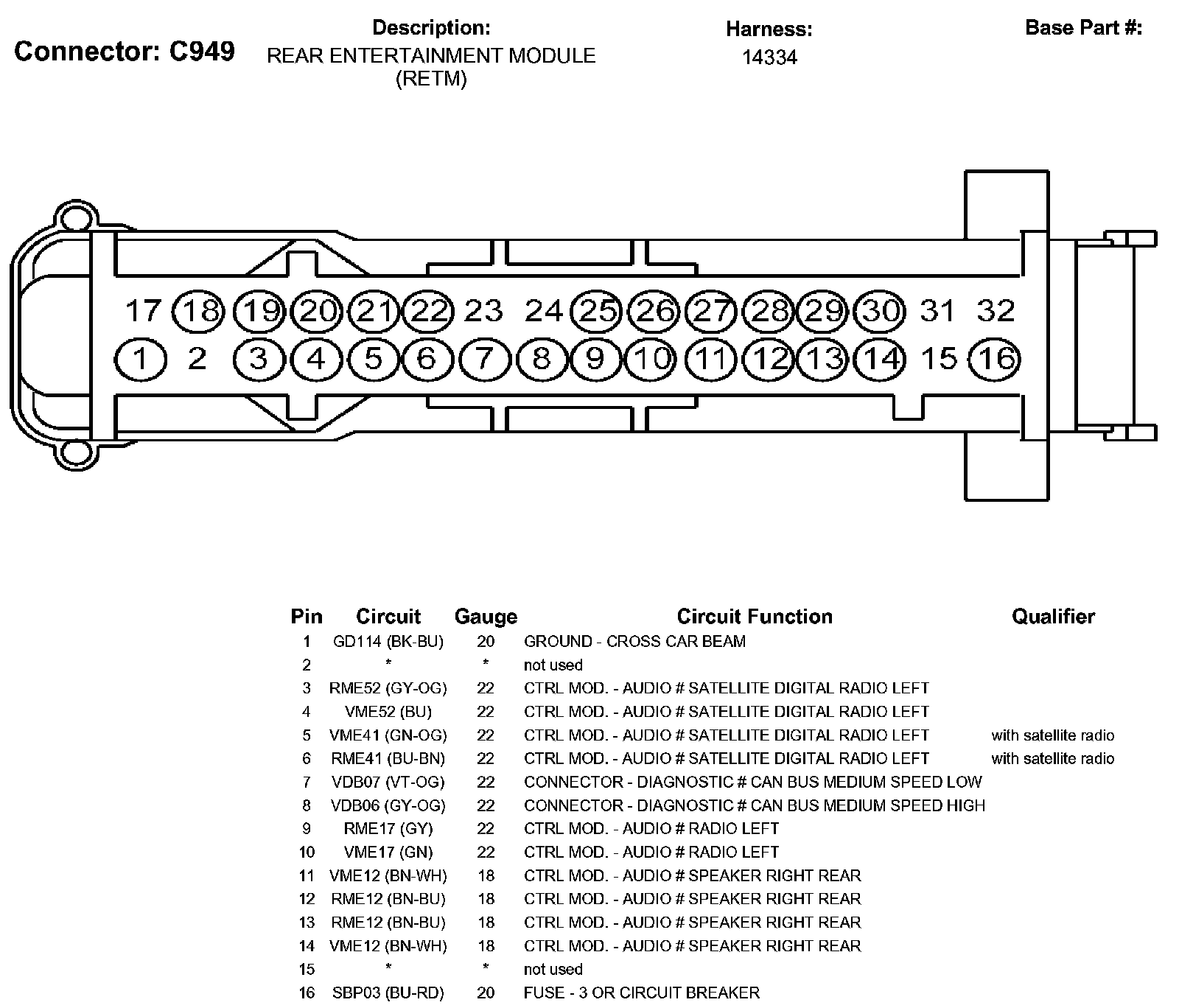

C949 (Part 1):

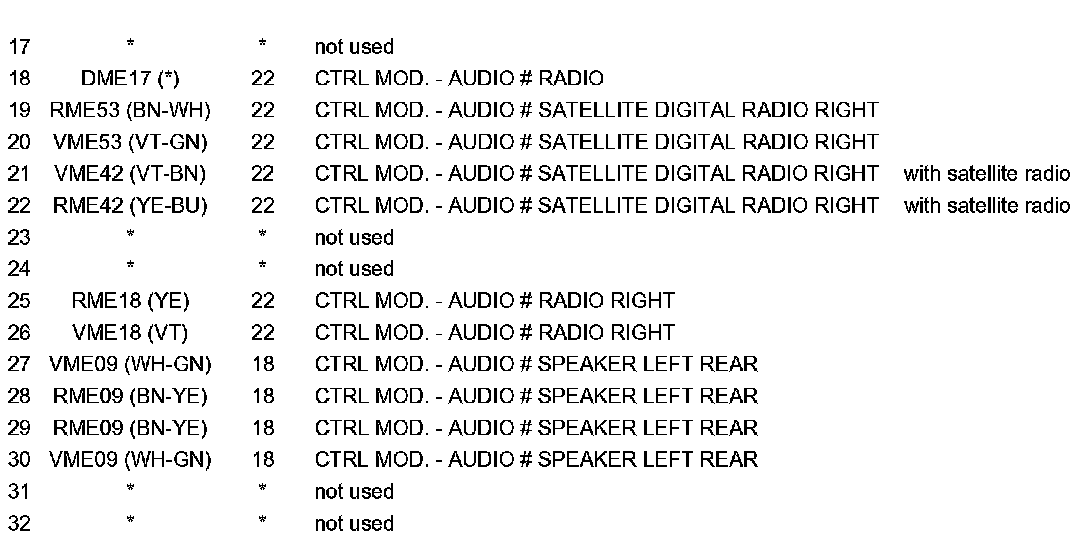

C949 (Part 2):
